➤ Used DOOSAN Puma 2600 SY II For Sale | gindumac.com

Show in original language

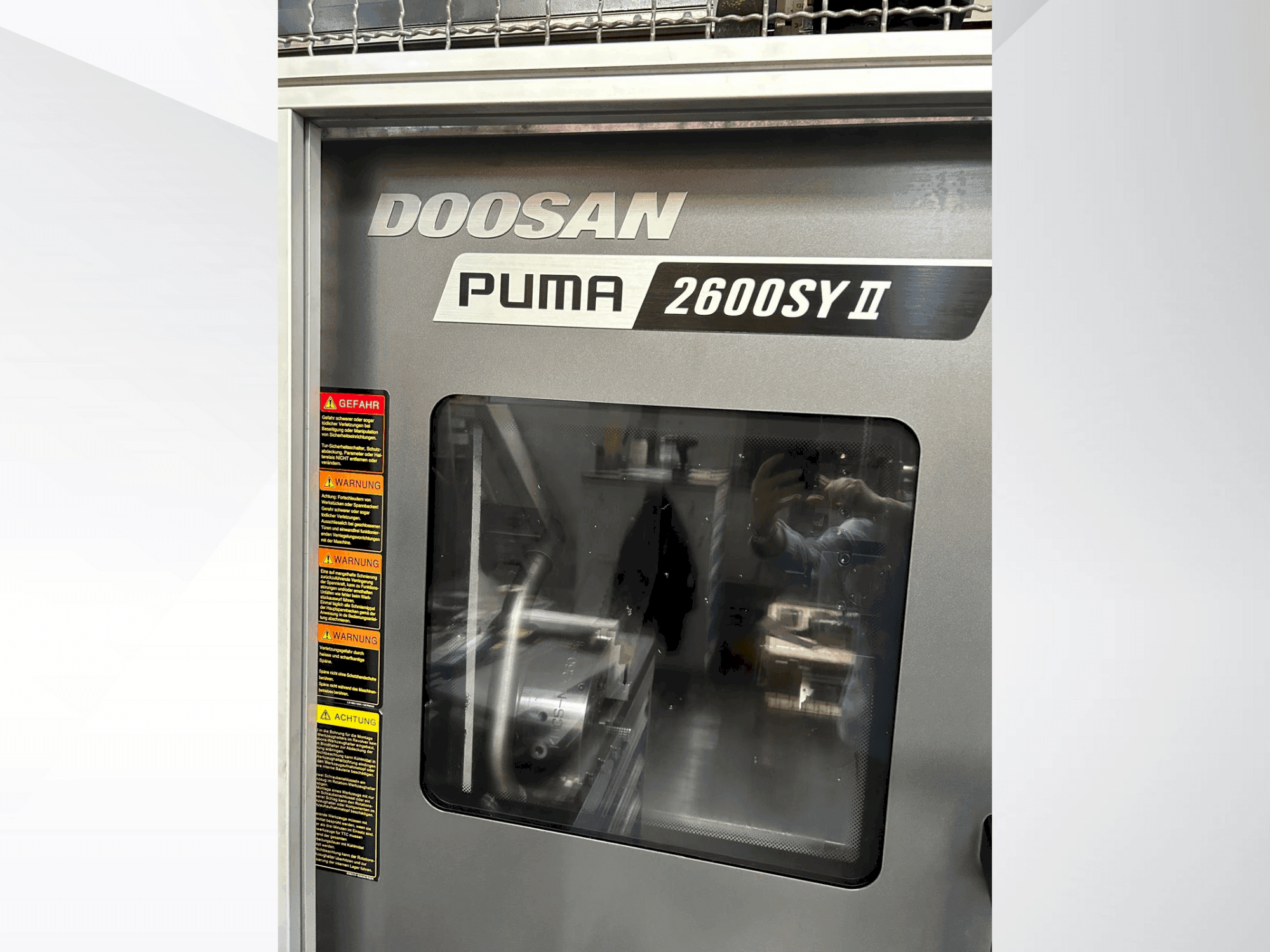

This 3-axis DOOSAN Puma 2600 SY II was manufactured in 2018, designed for precision in horizontal turning. Ideal for complex machining tasks, this machine ensures robust performance and durability. If you are looking to get high quality turning capabilities consider the DOOSAN Puma 2600 SY II machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2018
MODEL: Puma 2600 SY II
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - DOOSAN Puma 2600 SY II

General Data

Measurements width: 1903 MM
Measurements depth: 3600 MM
Measurements height: 2163 MM
Machine weight: 6500 KG

Control Unit

Brand: SIEMENS
Model: 828D

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 33 kw
Number of axis: 3

Movement

X-AXIS Movement: 260 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: ±52.5 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 830 mm
Z-AXIS Rapid traverse: 10 m/min

Additional equipment

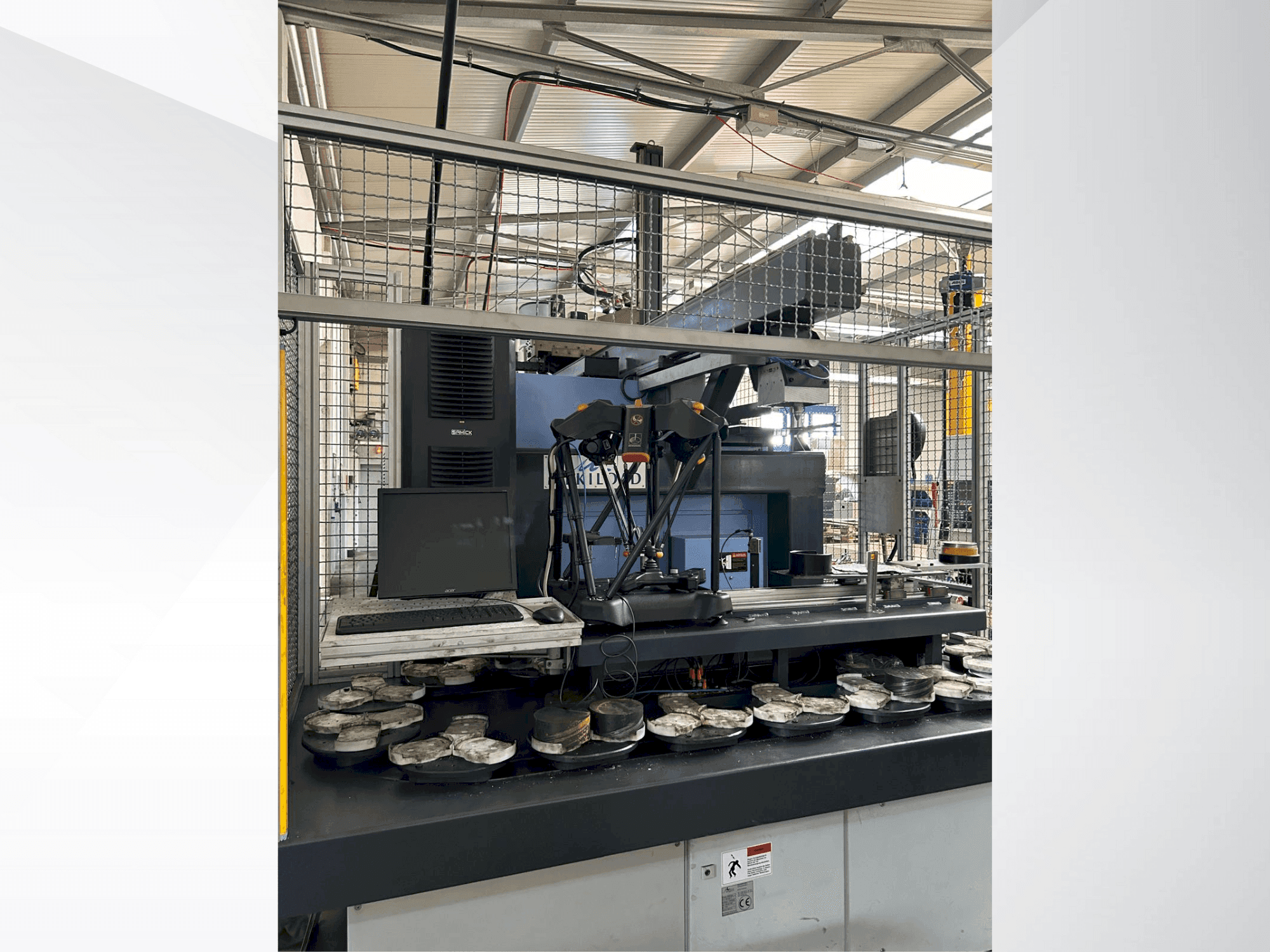

- Mekiload Gantry Loader
- Renishaw Equator
- Renishaw Equator

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter over bed: 780 mm
- - Max. Turning diameter over slide: 630 mm
- - Max. Turning length: 760 mm
- - Main spindle torque: 719 nm
- - Spindle mount (main): a2 #8
- - Sub spindle speed: 6000 rpm
- - Sub spindle power (30 min): 18. 2 kw
- - Sub spindle torque: 220 nm
- - Spindle mount (sub): a2 #5
- - Number of stations: 24 (12 driven)
Qualitative Machine Benefits:
- - Tool change time: 1. 0 second
- - Max speed (station): 5000 rpm
- - Holder for turning tools: 25 x 25 mm
- - Holder for boring bar: Ø50 mm
- - Coolant pump capacity: 1. 5 kw

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
