Doosan Puma 240B Turning

Show in original language

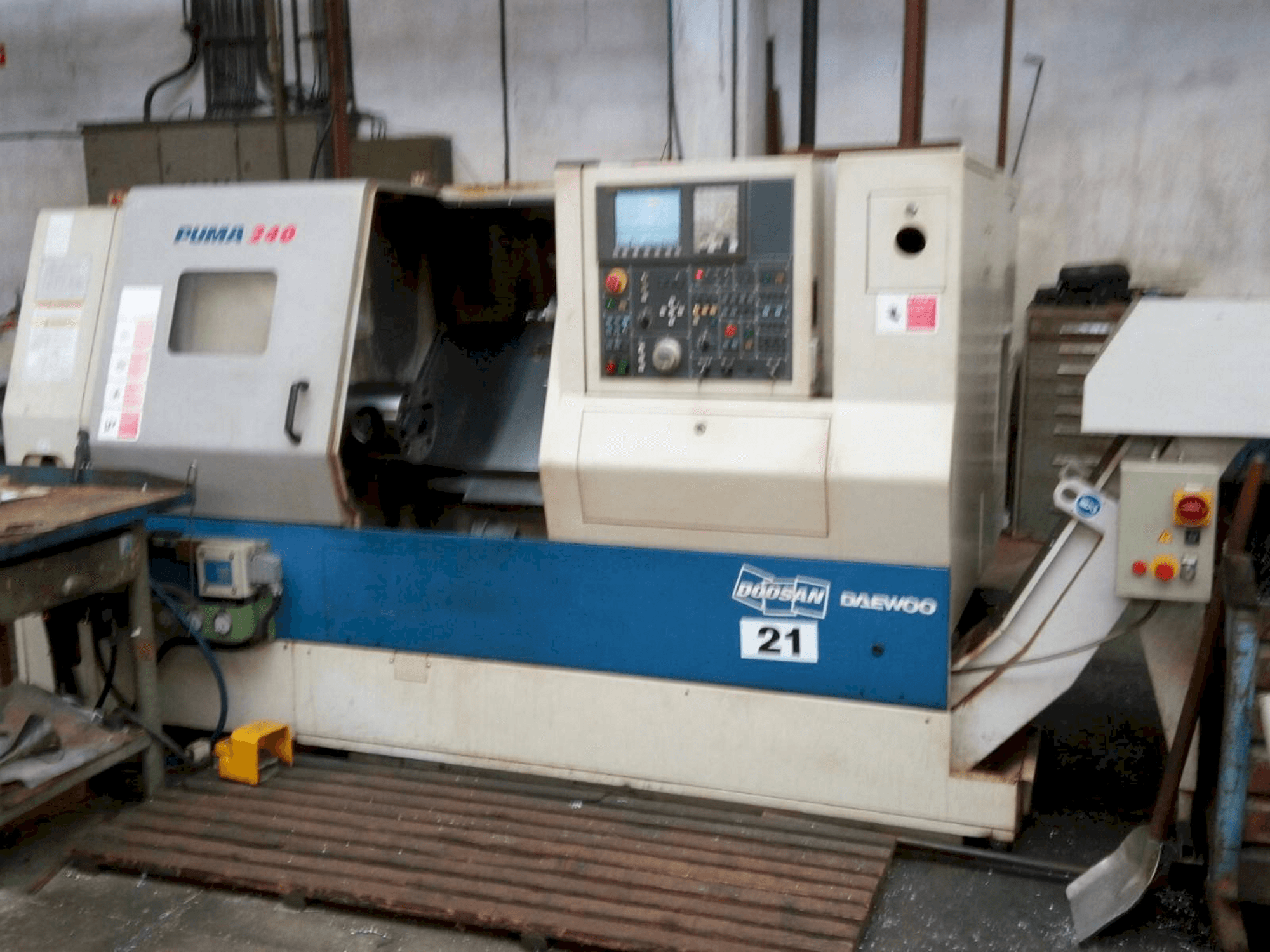

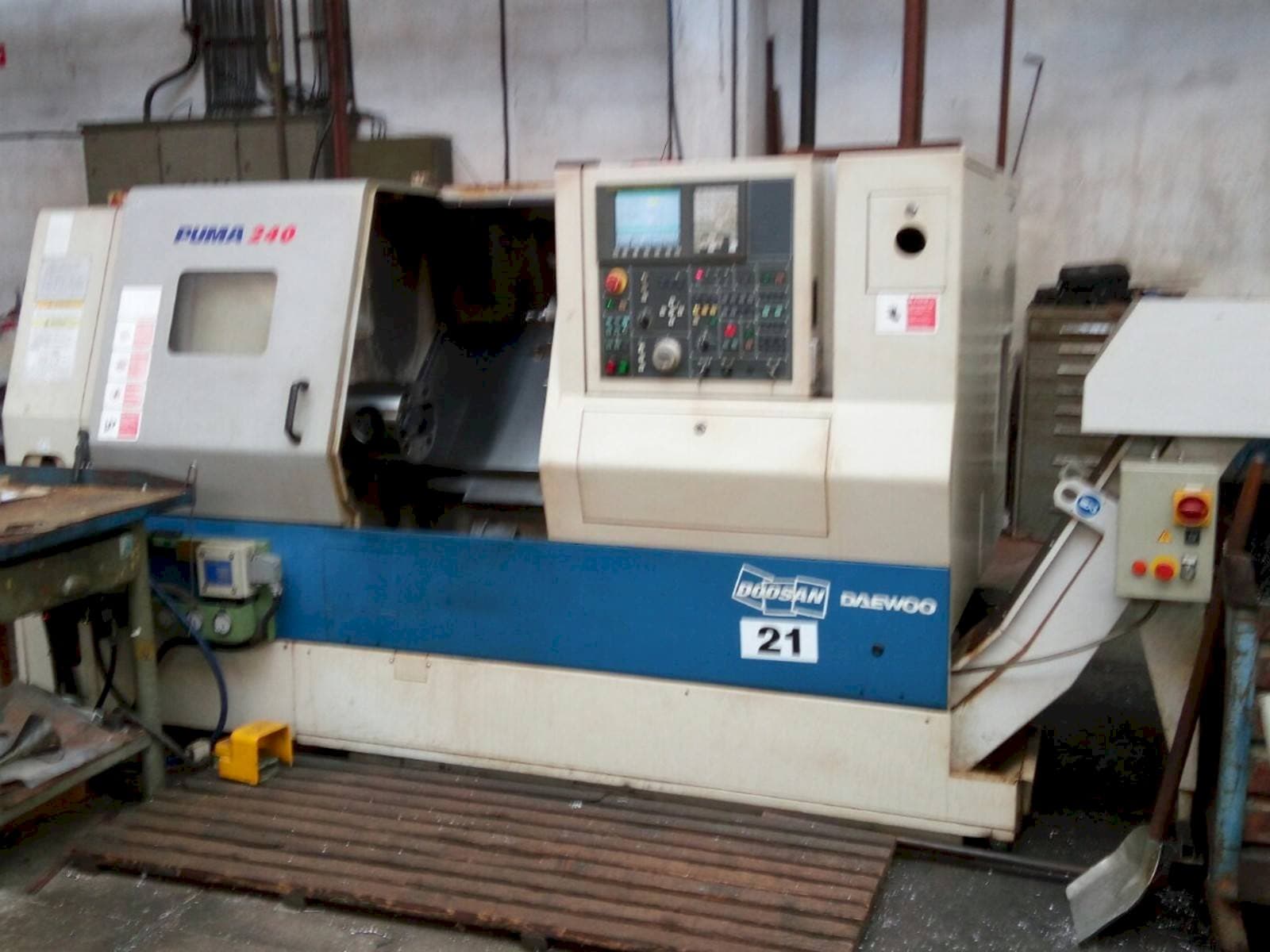

This Doosan 240B Lathes Machine was built in South Korea in the year 2006. It has 6018 hours of production hours, of which 2255 are spindle hours. It is equipped with a Fanuc control unit. This machine can work with a spindle speed up to 4500 rpm. The machine is in good condition.

Overview

brand: DOOSAN
year: 2006
MODEL: Puma 240B
production hours: 6018
application type: Turning
Location: Slovakia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Puma 240B

General Data

Machine weight: 4140 kg

Control Unit

Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN

Movement

X-AXIS Movement: 205 mm
Z-AXIS Movement: 580 mm

Turret

Number of turrets: 1
Number of tool slots: 12

Additional Information

Machine history

Material type: Cardan bars

Machine Benefits

Technical Machine Benefits:
- - Max. Swing over bed 550 mm
- - Max. Turning diameter 290mm
- - Max. Working bar capacity 65 mm
- - Max. Turning length 513 mm
- - Max. Working bar capacity 65 mm
- - Spindle motor power (cont. /30 min) 15/18. 5 kw
- - 2 axis lathe
Qualitative Machine Benefits:
- - Good condition, low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
