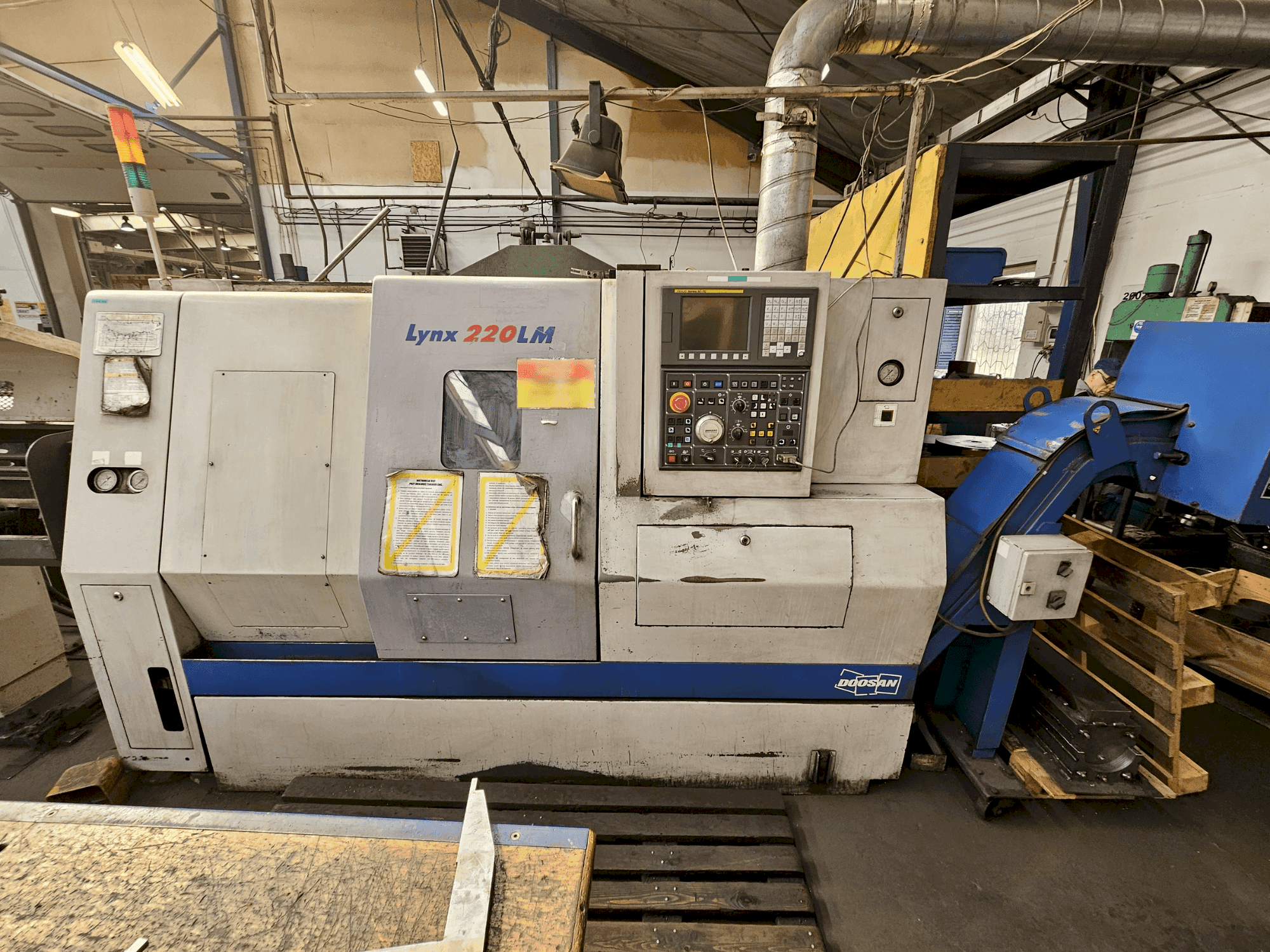

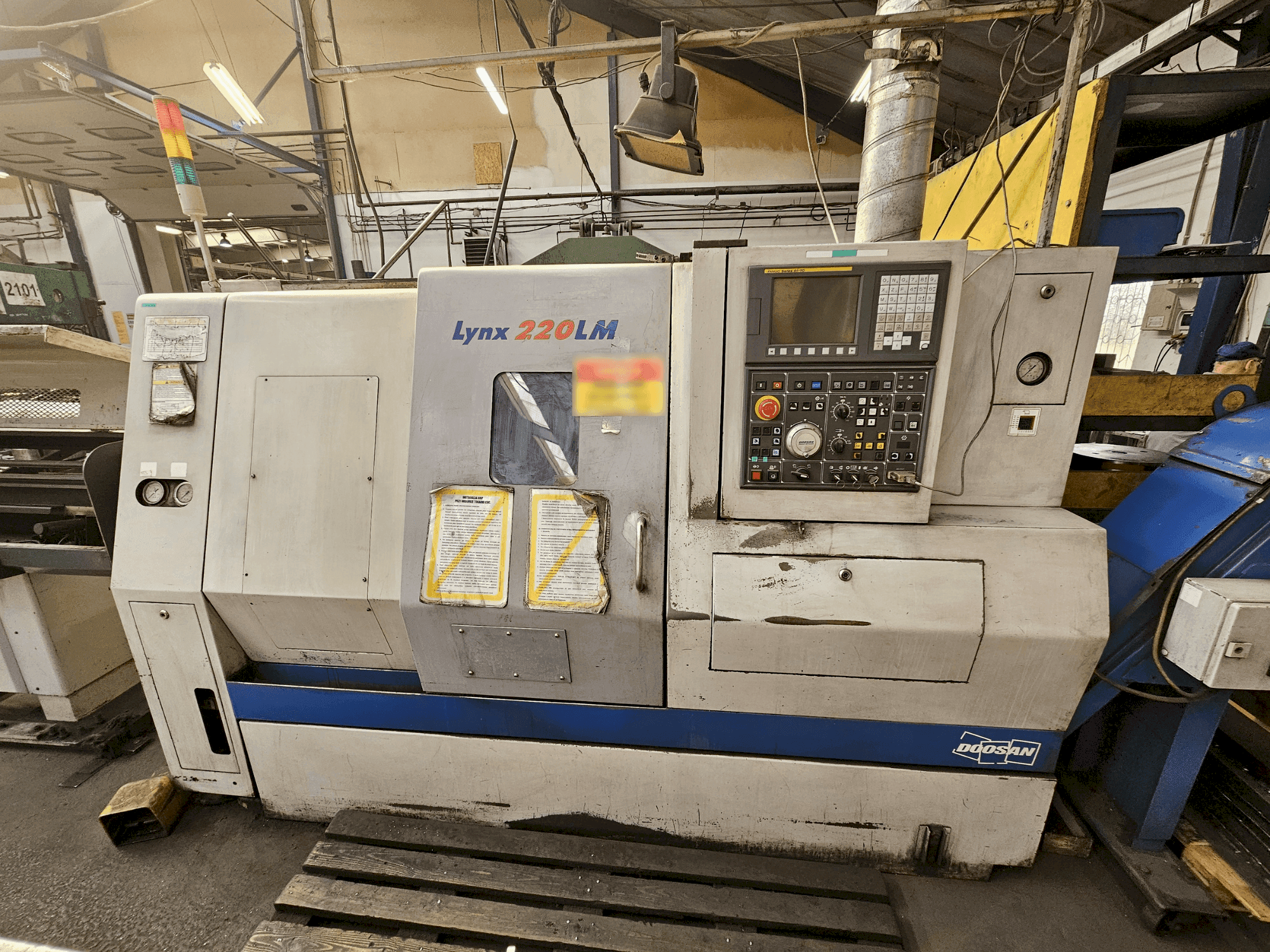

This DOOSAN LYNX 220LMA Lathe was manufactured in 2007 in South Korea. It is equipped with a FANUC Oi-TC control. The machine has 2 axes (X-Axis Travel: 175 mm, Z-Axis Travel: 330 mm), a max. turning diameter of 320 mm and a max. turning length of 322 mm. It comes with 24 turret stations and a spindle speed range of 60-6000 rpm. Swing over bed is 510 mm and swing over carriage is 290 mm. This lathe is in good condition, only the coolant pump has an issue which requires a technical review.
Overview
- brand: DOOSAN
- year: 2007
- MODEL: LYNX 220LMA
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- availability: Immediately
- control unit brand: FANUC
Technical Information - DOOSAN LYNX 220LMA
General Data
- Measurements width: 2560 MM
- Measurements depth: 1600 MM
- Measurements height: 1650 MM
- Machine weight: 3500 kg
Control Unit
- Brand: FANUC
- Model: Oi-TC
Main drive
- Spindle speed range: 60-6000 1/MIN
Movement
- X-AXIS Movement: 175 MM
- Z-AXIS Movement: 330 MM
Turret
- Number of tool slots: 24
Additional equipment
- - Bar feeder: LNS ECO LOAD (2007)
Additional Information
- Technical Machine Benefits:
- - Swing over bed: 510 mm
- - Swing over carriage: 290 mm
- - Max turning diameter: 320 mm
- - Max turning length: 322 mm
- - X-axis travel: 175 mm // z-axis travel: 330 mm
- - Spindle speeds: 60-6000 rpm
- - Turret stations: 24
- - The machine is in good condition, but there is an issue with the coolant pump.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
