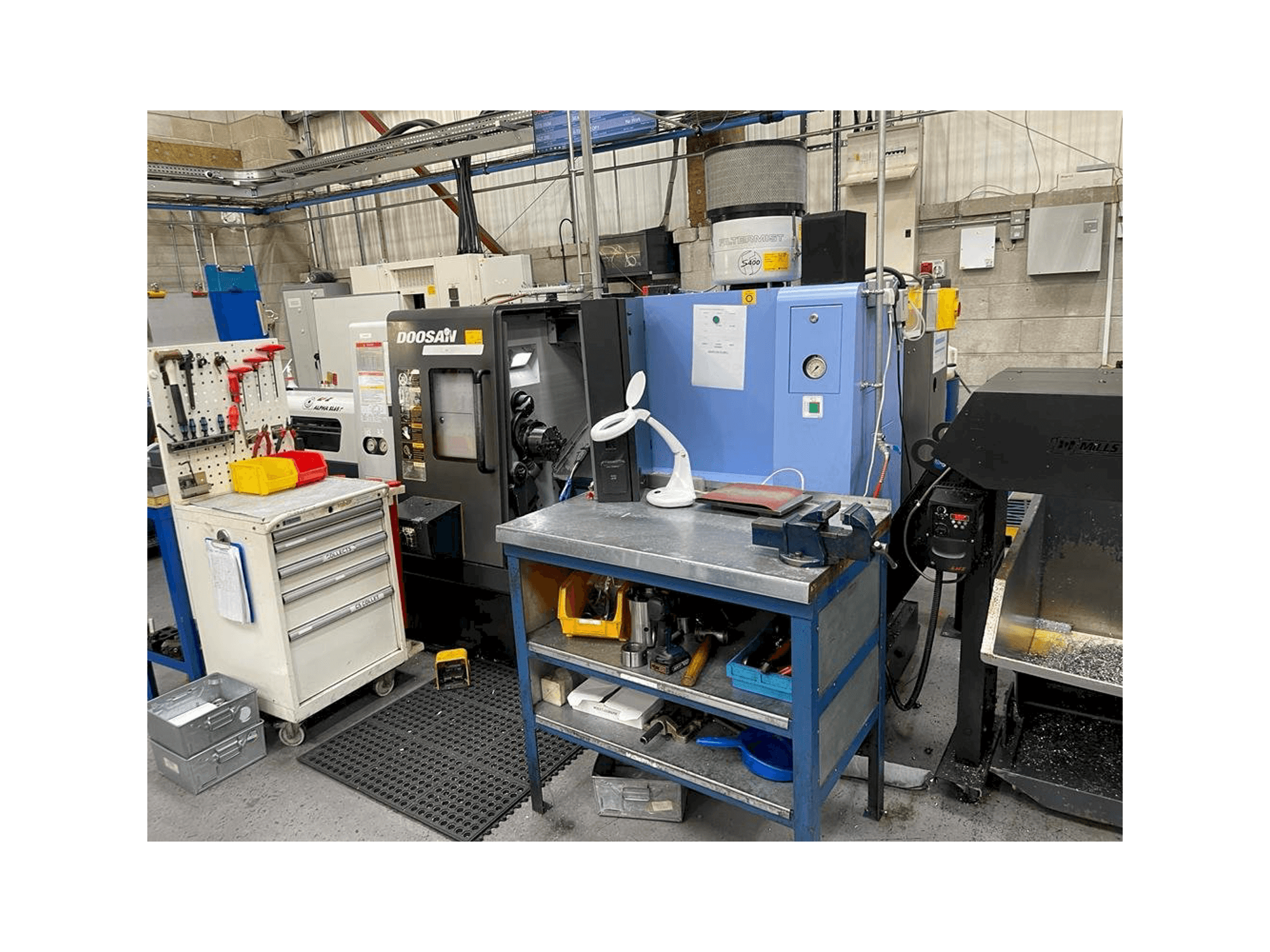

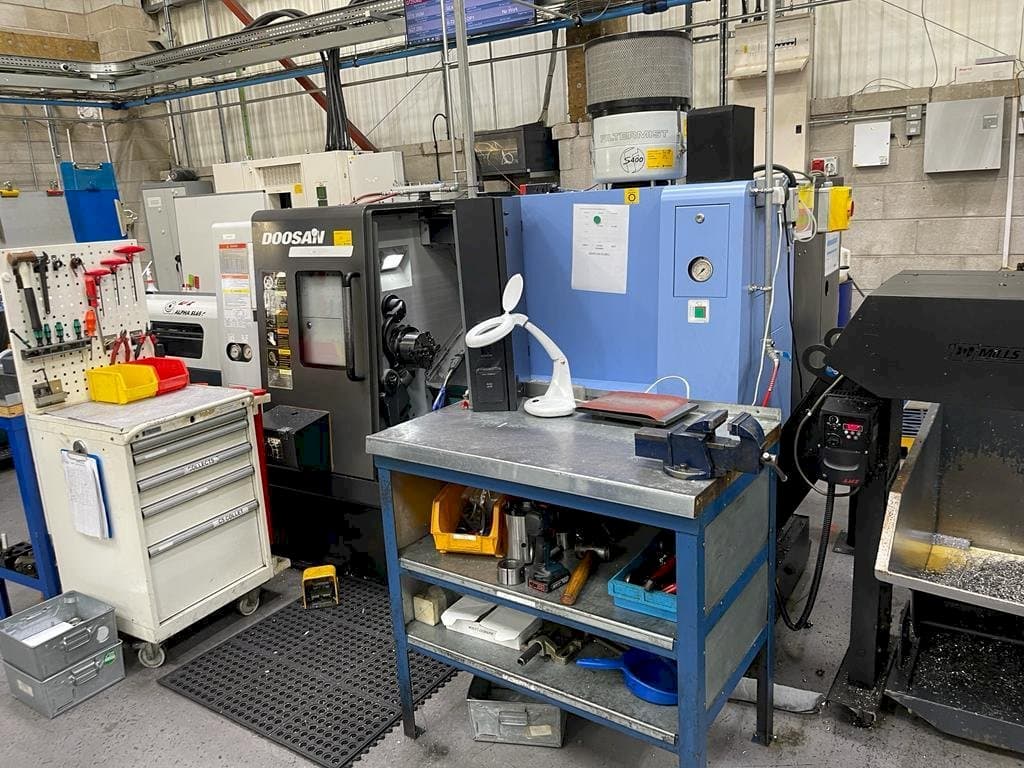

Doosan Lynx 220 LMA Lathe machine

Show in original language

This Doosan Lynx 220 LMA Lathe machine was built in the year 2014. It is equipped with a FANUC i Series control unit and has 3 axis. The machine has a spindle speed of 6000 rpm and is in very good condition.

Overview

brand: DOOSAN
year: 2014
MODEL: Lynx 220 LMA
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220 LMA

General Data

Measurements width: 2630 mm
Measurements depth: 1600 mm
Measurements height: 1655 mm
Machine weight: 3100 kg

Control Unit

Brand: FANUC
Model: i Series

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 15/11 kW

Movement

X-AXIS Movement: 175 mm
Z-AXIS Movement: 550 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 24

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 510 mm, over carriage 290 mm
- - Maximum machining diameter 250 mm
- - Maximum machining length 510 mm
- - Bar capacity 51 mm
- - Turret positions 24 (positions 1-12 driven)
- - 0. 001 degree c axis
- - Tailstock (taper mt #4, quill diameter/ stroke 65/80mm)
- - 3 jaw chuck, magazine barfeed, swarf conveyor,
- - Tool setter, parts catcher
- - 3 controlled axes (x, z, c)
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
