➤ Used DMG MORI NLX 6000 - 2000 - Lathe For Sale

Show in original language

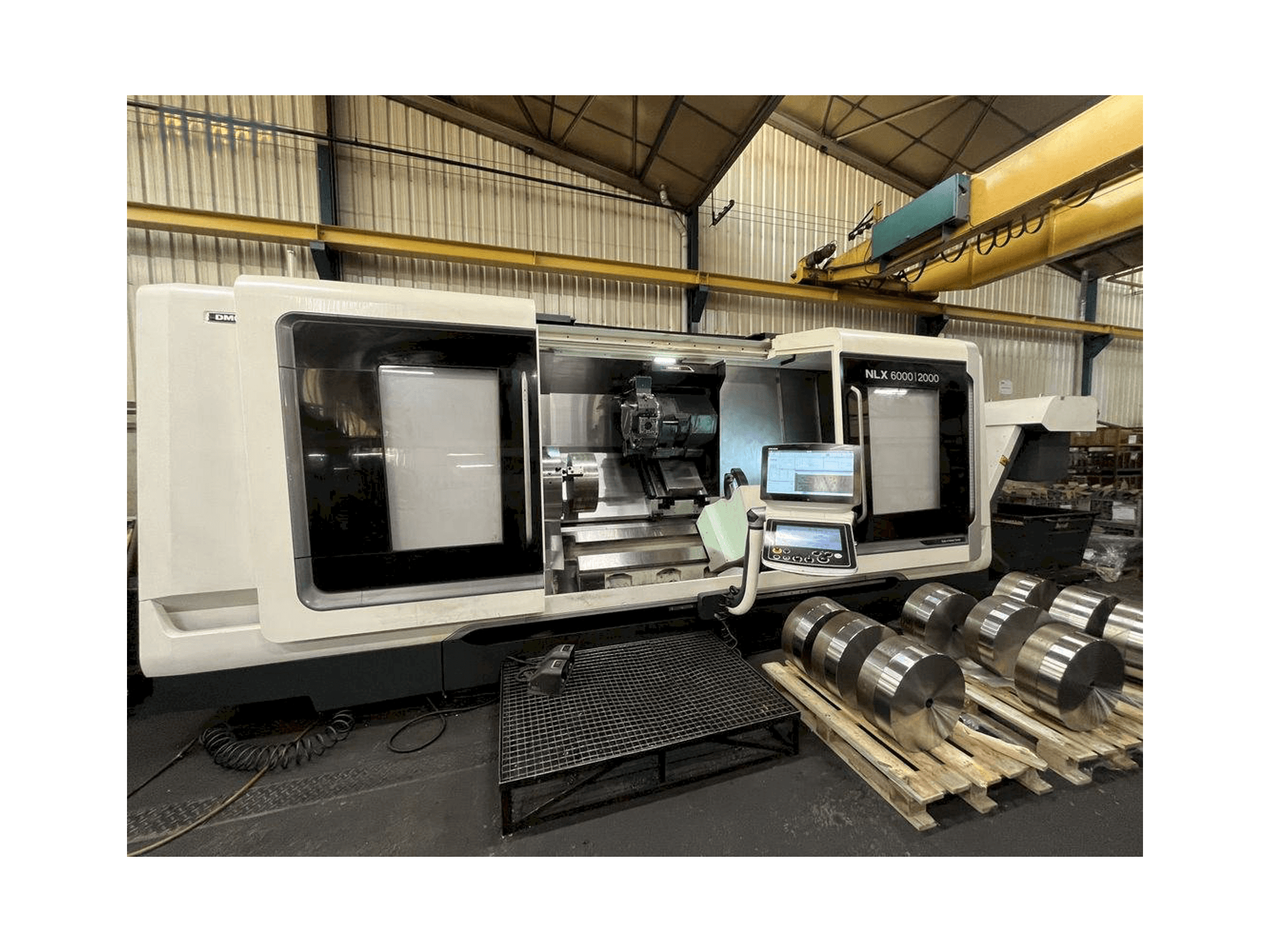

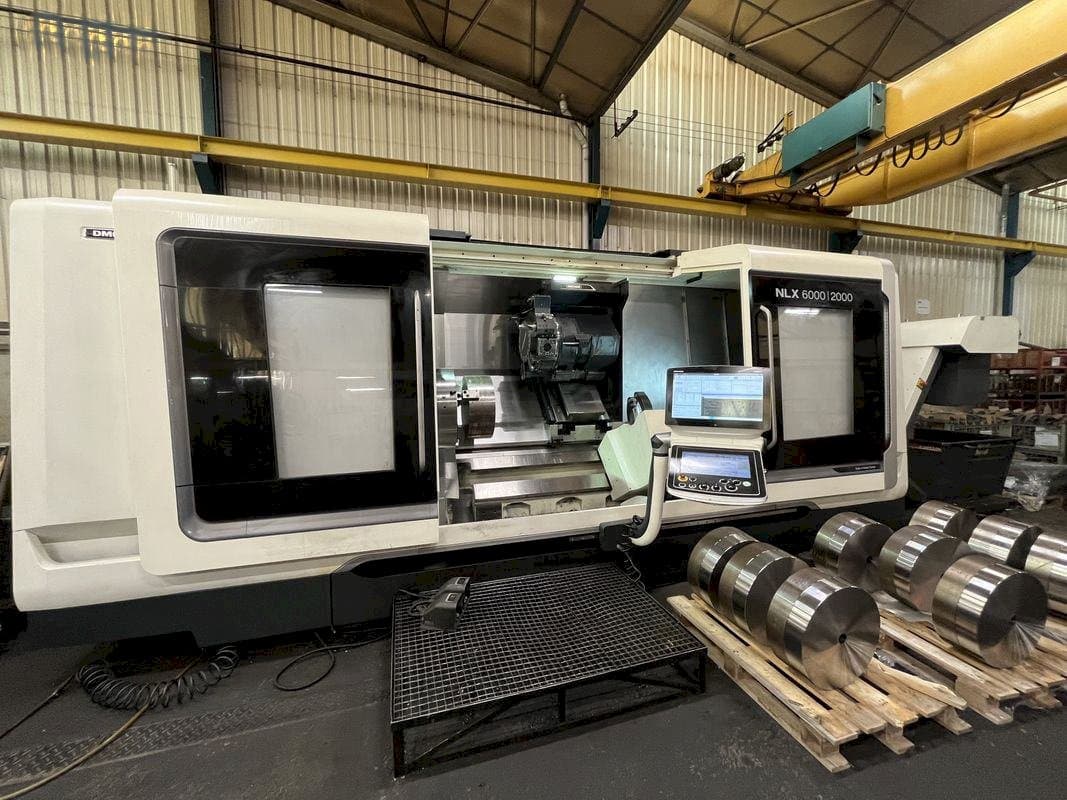

This DMG MORI NLX 6000 | 2000 Lathe was manufactured in the year 2017 and has only 2800 production hours. It is operated through MAPPS-CELOS M730UM control unit. The machine has a spindle speed of 1600 rpm.

Overview

brand: DMG MORI
year: 2017
MODEL: NLX 6000 | 2000
production hours: 2800
application type: Turning
Location: France
machine type: Turn-Mill Centre
availability: Sold

Technical Information - DMG MORI NLX 6000 | 2000

Control Unit

Model: M730UM

Main drive

Number of spindles: 1
Spindle speed range: 1600 1/MIN
Spindle motor power: 45/37 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between tips = 2000 mm
- - Bore = Ø185
- - Torque = 7021 nm
- - Chuck schunk thw 630-160
- - 12-position turret type bmt 75 equipped with y-axis
- - Speed of standard rotary tools: 8 000 tr/min
- - Tailstock with fixed axis: fixed steady rest schunk thl mt5 and steady rest plus 510
- - Carpet type right hand discharge chip conveyor high pressure watering system 1 mpa/ 1. 5 mpa (1. 1 kw/ 2. 2 kw)
- - Direct reading linear scale on x, y, z axis
- - Automated rotary arm for tool measurement

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
