DMG MORI - CTX Beta 1250 TCMD-TUR-DMG-2014-00001
Do you have further questions? Contact us.
![sales contact](https://storage.googleapis.com/gindumac-public/team/sergi_guardia.jpg)
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Machine Tools
- DMG MORI GILDEMEISTER CTX beta 1250 TC lathe

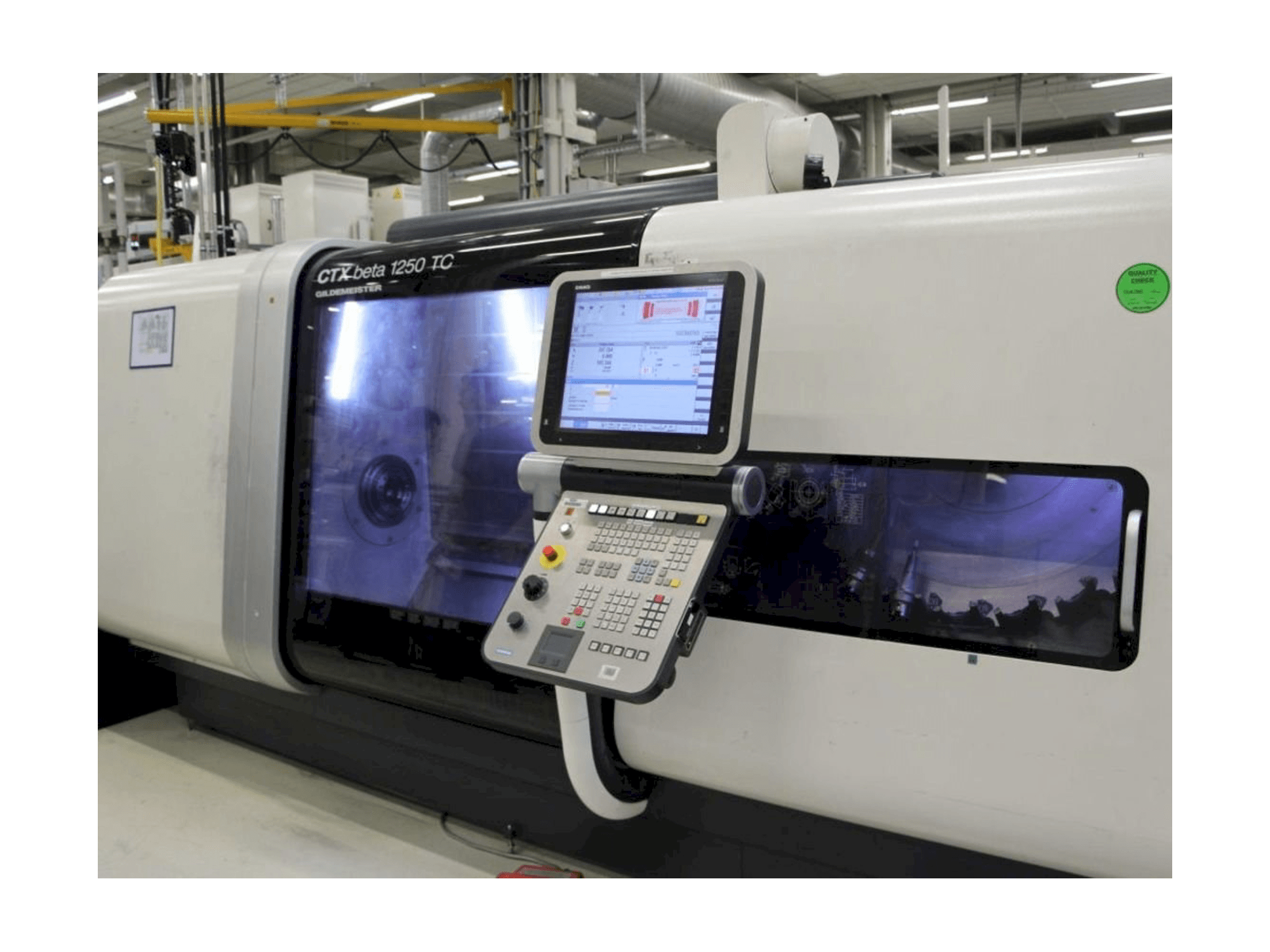

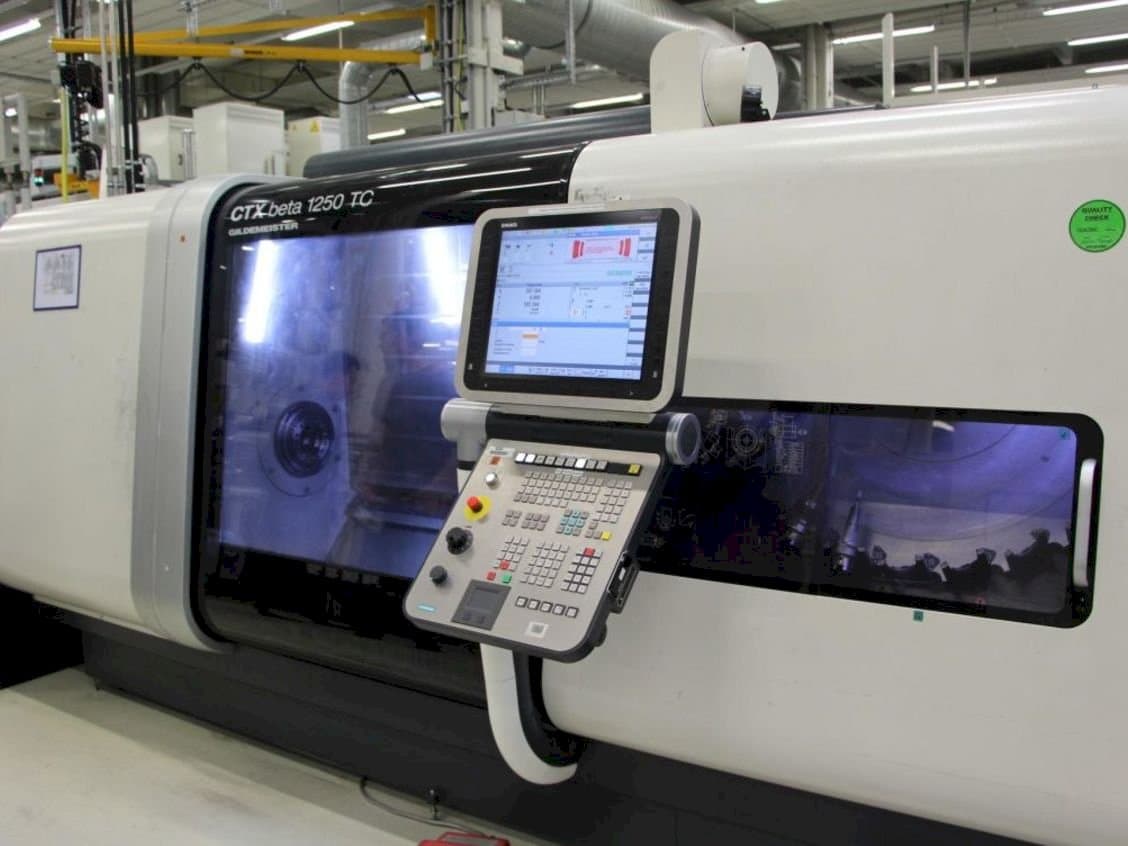

This DMG MORI CTX Beta 1250 TC lathe was made in the year 2014 in Italy and has 27453 hours, of which 9161 are spindle hours. It is equipped with a Siemens control unit and has 3 axis. The machine has a max. swing diameter over a bed of 500 mm and a max. swing diameter over a slide of 500 mm.
Overview
- brand: DMG MORI
- year: 2014
- MODEL: CTX Beta 1250 TC
- production hours: 27453
- application type: Turning
- Location: Moldova
- machine type: Lathe
- availability: Sold
- control unit brand: Siemens
Technical Information - DMG MORI CTX Beta 1250 TC
General Data
- Measurements width: 5700 mm
- Measurements depth: 2550 mm
- Measurements height: 2200 mm
- Machine weight: 8500 kg
Control Unit
- Brand: Siemens
Main drive
- Number of axis: 3
Movement
- Y-AXIS Movement: 200 (+/- 100) mm
- B-AXIS Movement: 220 (+/- 110) ° MM
Tools
- Max weight: 7 kg
- Max tool diameter: 80 mm
- Max tool length: 300 mm
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Max. Swing diameter over bed: 500 mm
- - Max. Swing diameter over slide: 500 mm
- - Distance between centres: 1425 mm
- - Spindle nose height from the ground: 1040 (1010 + 30) mm
- - Tailstock travel: 1200 mm
- - Machine is equipped with a chip conveyor and a tailstock
- Qualitative Machine Benefits:
- - Including documentation as well as software
- - attention: The tools shown on the photos are not in scope of delivery! attention: Mandrel as well as coolant treatment installations and pump is not in scope of delivery!
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
