DMG MORI - CNC 400PL-TUR-FAM-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FAMOT CNC 400 Lathe

Show in original language

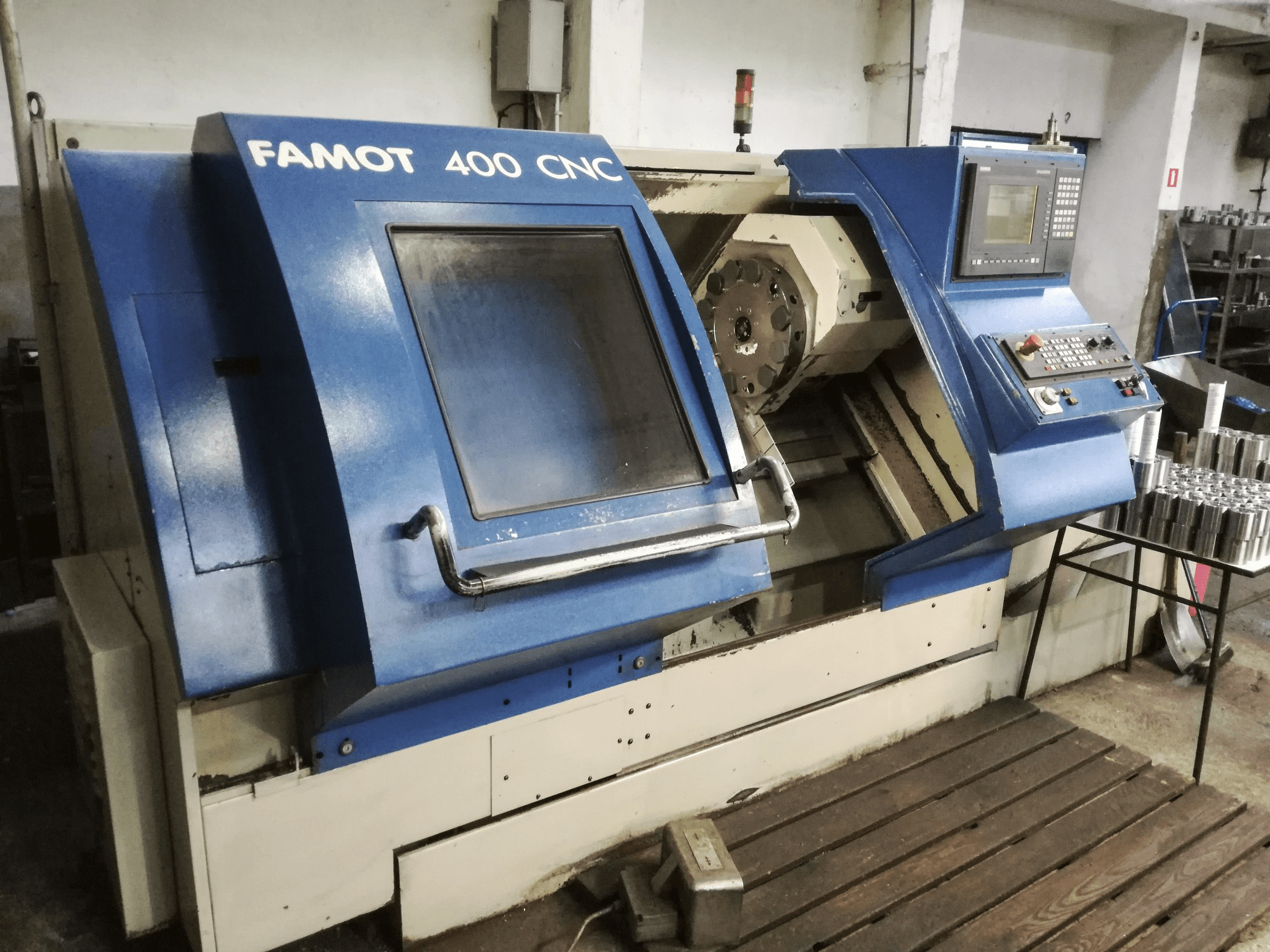

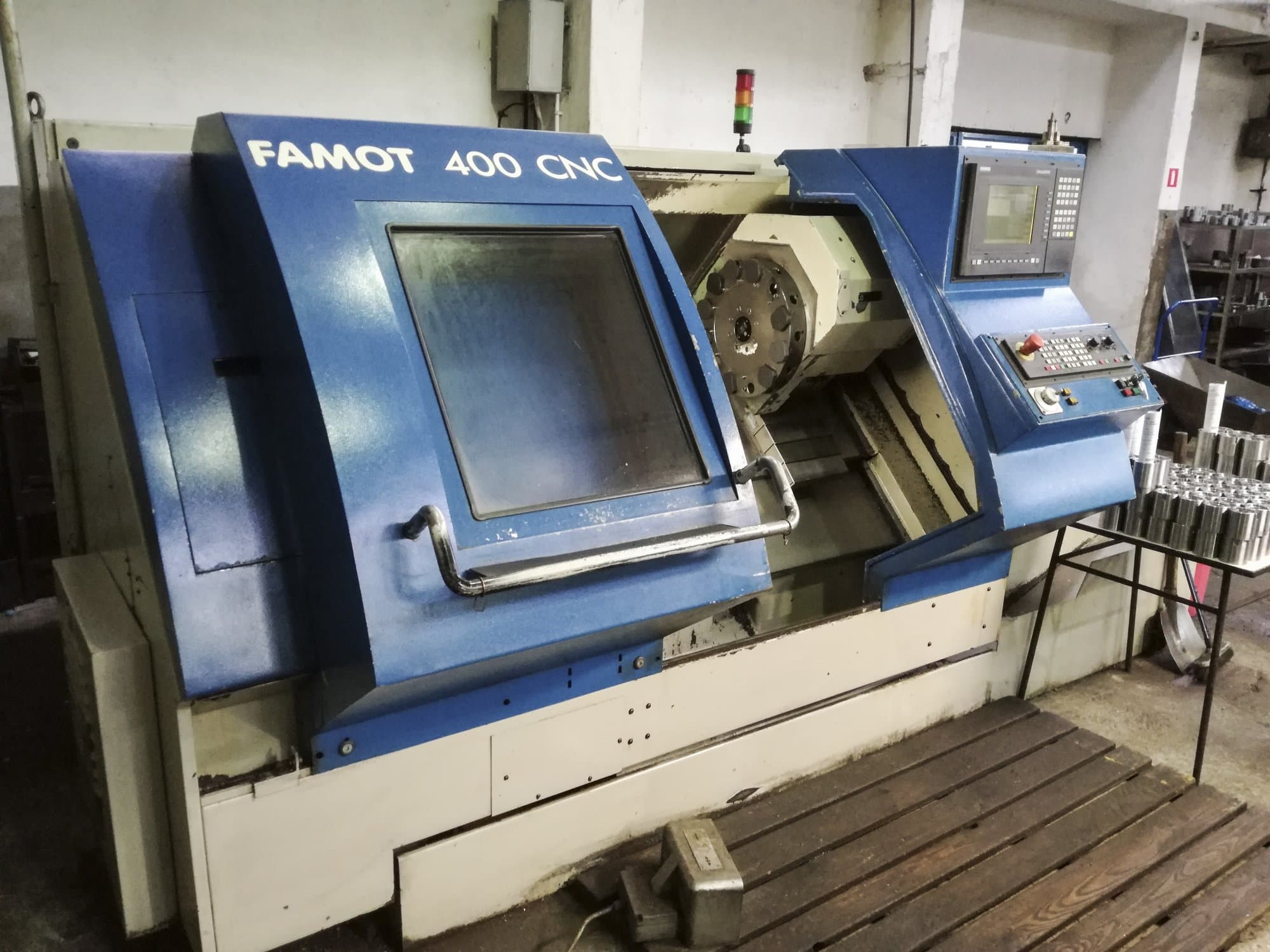

This DMG MORI CNC 400 Lathe was manufactured in 1998 in Poland and is equipped with a SIEMENS SINUMERIK 810D Control unit. This 2-axis machine comes with a hydraulic chuck as additional equipment.

Overview

brand: DMG MORI
year: 1998
MODEL: CNC 400
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI CNC 400

General Data

Measurements width: 4300 mm
Measurements depth: 1730 mm
Measurements height: 1850 mm
Machine weight: 4500 kg

Control Unit

Model: SINUMERIK 810D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/min

Movement

X-AXIS Movement: 200 mm
Y-AXIS Movement: 40 mm
Z-AXIS Movement: 640 mm

Turret

Number of turrets: 12

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 25 kVA

Additional equipment

- Hydraulic Chuck

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
