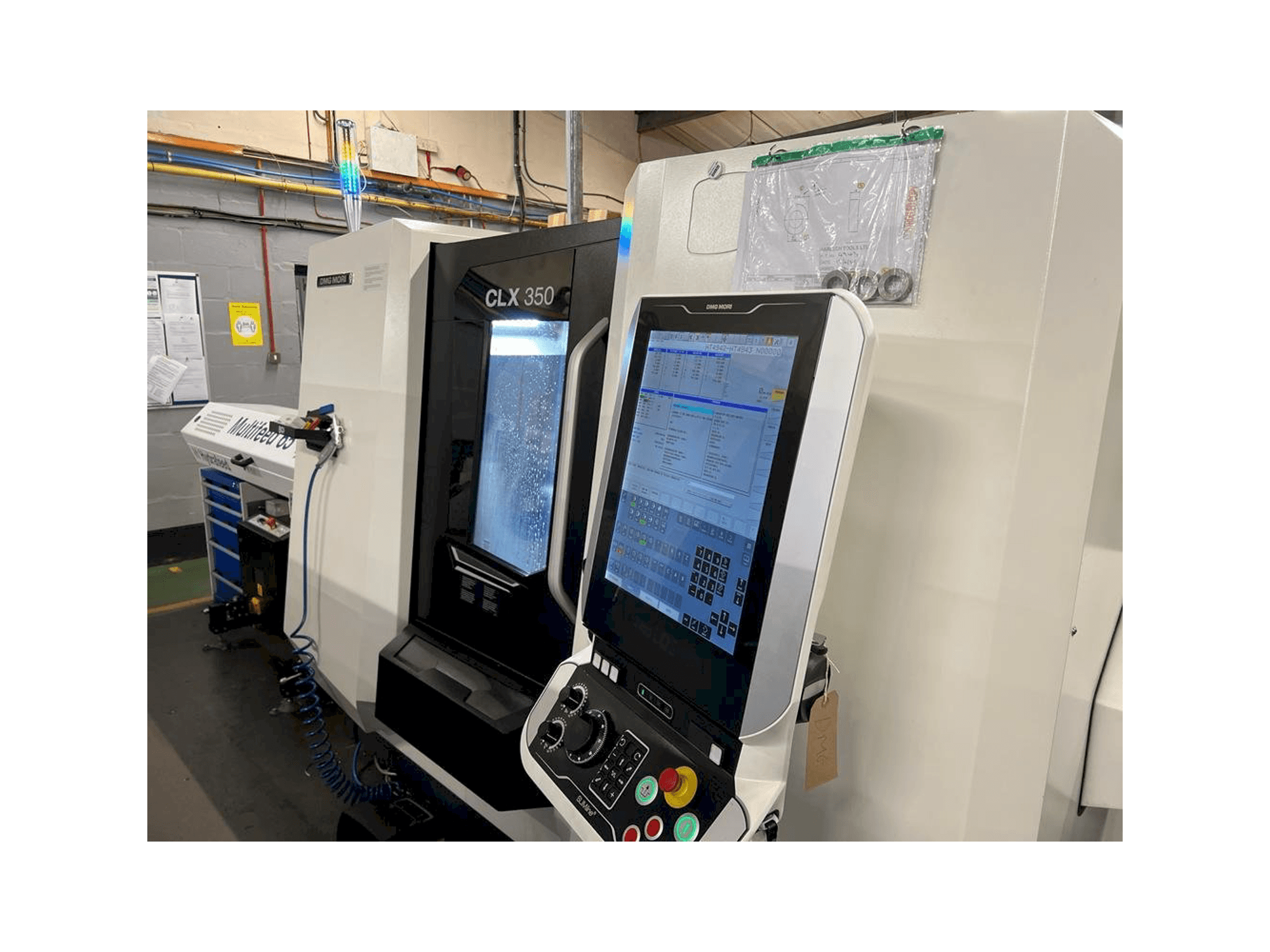

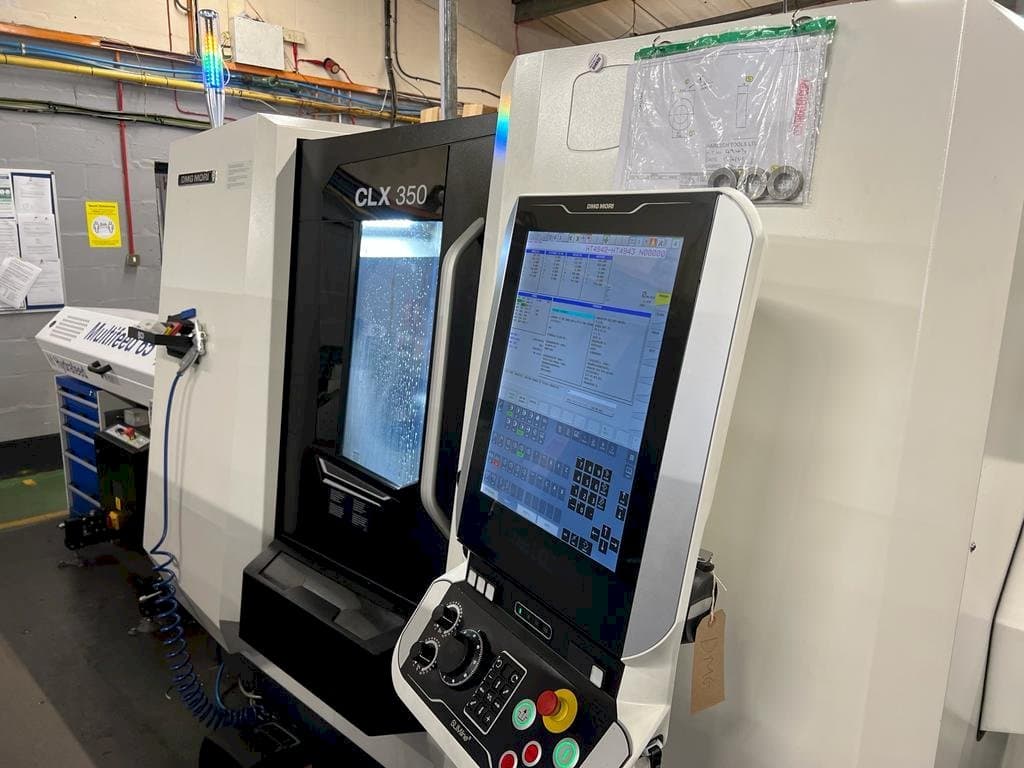

DMG MORI CLX 350 Lathe machine

Show in original language

This DMG MORI CLX 350 Lathe machine was built in Germany in the year 2020. This 5 axis machine it is equipped with a FANUC control unit. This machine can perform with a spindle speed up to 5500 rpm. Includes a Barfeed Magazine Hydrafeed Multifeed 65. Machine in very good condition, low production hours.

Overview

brand: DMG MORI
year: 2020
MODEL: CLX 350
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DMG MORI CLX 350

General Data

Measurements width: 3400 mm
Measurements depth: 2271 mm
Measurements height: 2208 mm
Machine weight: 4700 kg

Control Unit

Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 242.5 mm
Y-AXIS Movement: +/- 40 MM
Z-AXIS Movement: 540 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: VDI 30

Additional equipment

- Barfeed Magazine Hydrafeed Multifeed 65

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum cutting diameter 320mm
- - Swing over the cross-slide 360mm
- - Bar capacity 65mm
- - Chuck size 200mm
- - Milling motor power 5. 4kw
- - Milling rpm 5500 rpm
- - Spindle motor power 16. 5/11kw
- - Rapid feedrates xyz: 30 x 22. 5 x 36m/minute
- - Sub spindle max speed 5000rpm
- - C axis & milling, tool setter, coolant, y-axis, interlocked guards, low volt light, 3 jaw chuck, collets, magazine barfeed, collet chuck, swarf conveyor, c axis on sub spindle
Qualitative Machine Benefits:
- - Very good condition, low hours

Extra information

- 5 axis lathe wit C axis, Y axis and milling function

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
