➤ Used DMG CTX beta 1250 TC 4A For Sale | gindumac.com

Show in original language

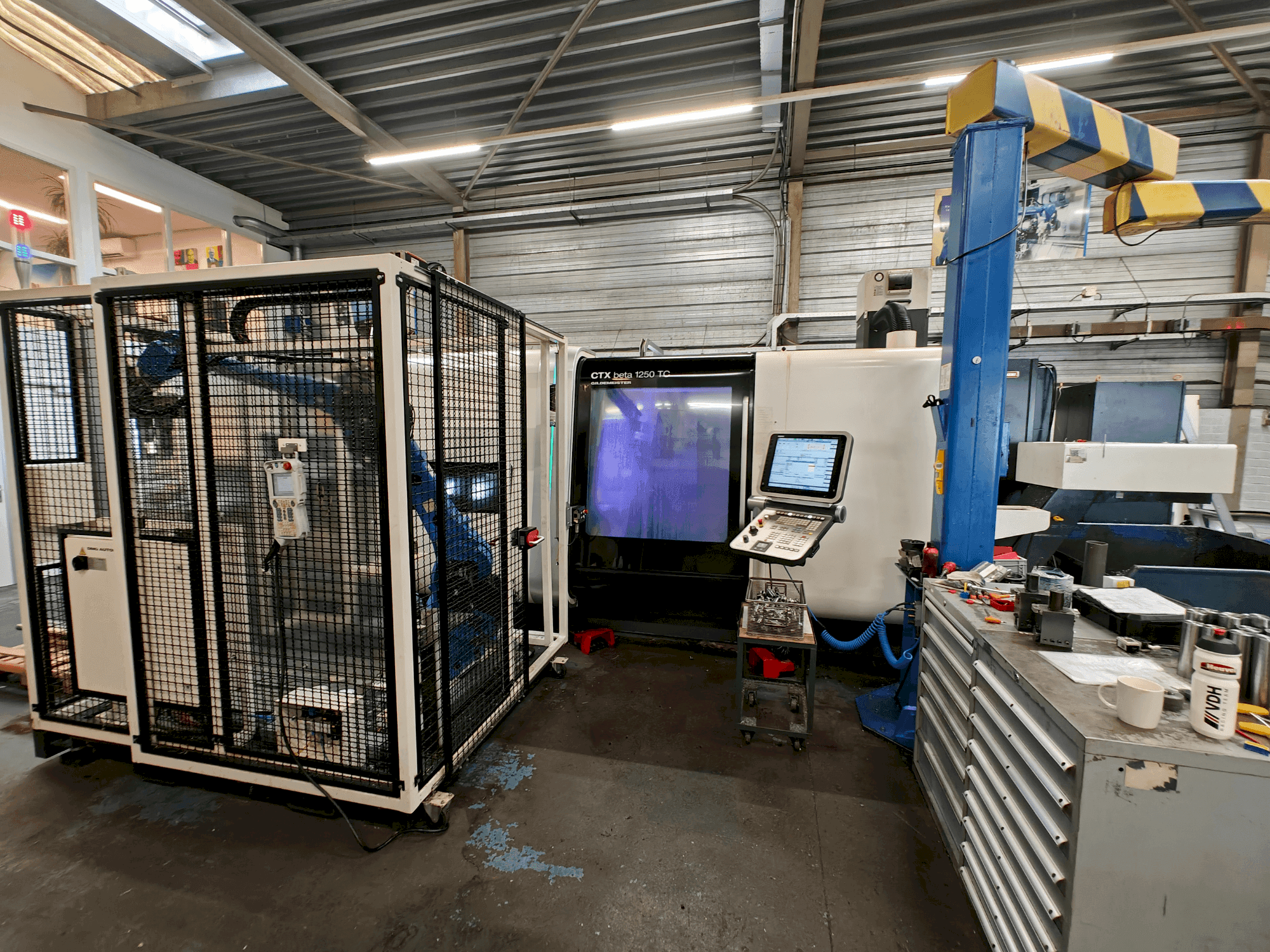

This 12-axis DMG CTX beta 1250 TC 4A horizontal turning machine was manufactured in 2012. It features a two-spindle turning/milling center, integrated spindle motors, and a CNC control Siemens 840D. Equipped with a Y-axis, B-axis, and a tool chain magazine with 120 compartments, it offers high flexibility and precision. Ideal for complex machining tasks, the DMG CTX beta 1250 TC 4A horizontal turning machine we have for sale is a robust addition to any production line. Contact us for further details.

Overview

brand: DMG
year: 2012
MODEL: CTX beta 1250 4 A
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - DMG CTX beta 1250 4 A

Control Unit

Model: SINUMERIK 840D ERGOline
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 5000 rpm 1/MIN
Spindle motor power: 25/32 kW
Tool taper: HSK-63A DIN 69893
Number of axis: 12

Movement

Y-AXIS Movement: 100 mm
B-AXIS Movement: 110° MM

Media

Internal cooling: Yes
Cooling pressure: 8/20 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 0-4000 rpm (main spindle ism 102)
- - 40/48 kw (main spindle ism 102)
- - Collet device replaced by a standard variant
- - Tool drive from the revolver as direct drive
- - Y-axis for revolver
- - Tool holder ii with precision interface (trifix)
- - Liquid-cooled drive motor in the turret disc
- - Nc-controlled workpiece removal device
- - Conveyor belt for workpiece dimensions Ø10-102 mm, length approx. 600 mm, max. Weight 10 kg

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
