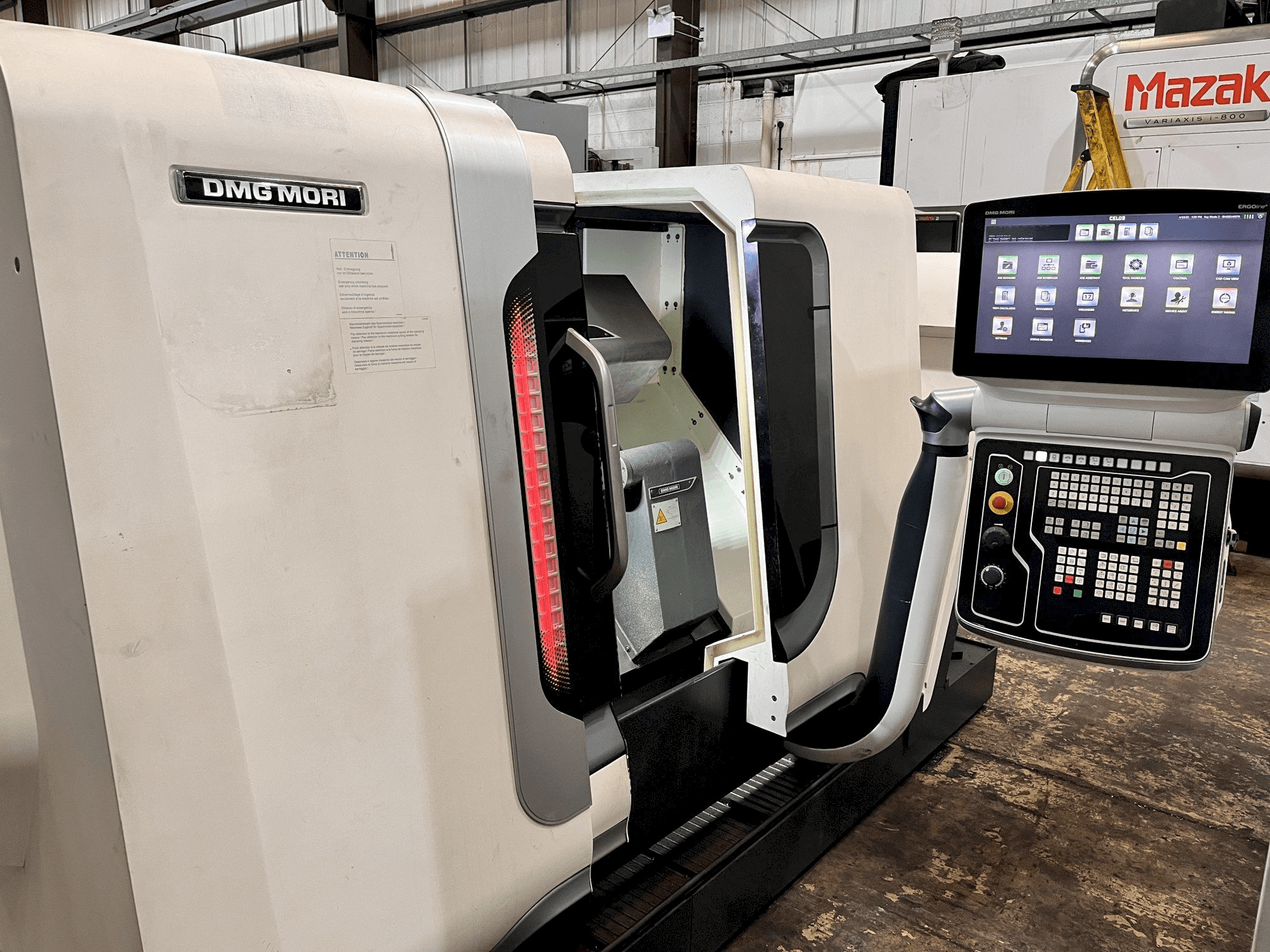

DMG CTX ALPHA 300 Lathe machine

Show in original language

This DMG CTX ALPHA 300 Lathe machine was built in Germany in 2017. It has 9570 working hours of which 1268 are cutting time. This 4 axis machine is operated through a Siemens 840D ERGOLINE control unit. It works with a spindle speed up to 6000 rpm. Includes a tool holder VDI 30. Machine in very good condition and low hours.

Overview

brand: DMG
year: 2017
MODEL: CTX ALPHA 300
production hours: 9570
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG CTX ALPHA 300

General Data

Measurements width: 3705 mm
Measurements depth: 1720 mm
Measurements height: 1787 mm
Machine weight: 3800 kg

Control Unit

Model: 840D ERGOLINE
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 210 mm
Y-AXIS Movement: +/- 40 mm
Z-AXIS Movement: 335 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: VDI 30

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum cutting diameter 240mm
- - Maximum cutting length 520mm
- - Bar capacity 52mm
- - Chuck size 215mm
- - Milling motor power 5. 4kw
- - Milling rpm 5000rpm
- - Tailstock taper mt #4, travel 370mm
- - Rapid feedrates xyz: 30 x 22. 5 x 30m/minute
- - Spindle motor power 14kw
- - C and y axis, coolant, tooling
Qualitative Machine Benefits:
- - Very good condition, low hours
- - Chip conveyor

Extra information

- 4 axis lathe wit C axis, Y axis and milling function

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
