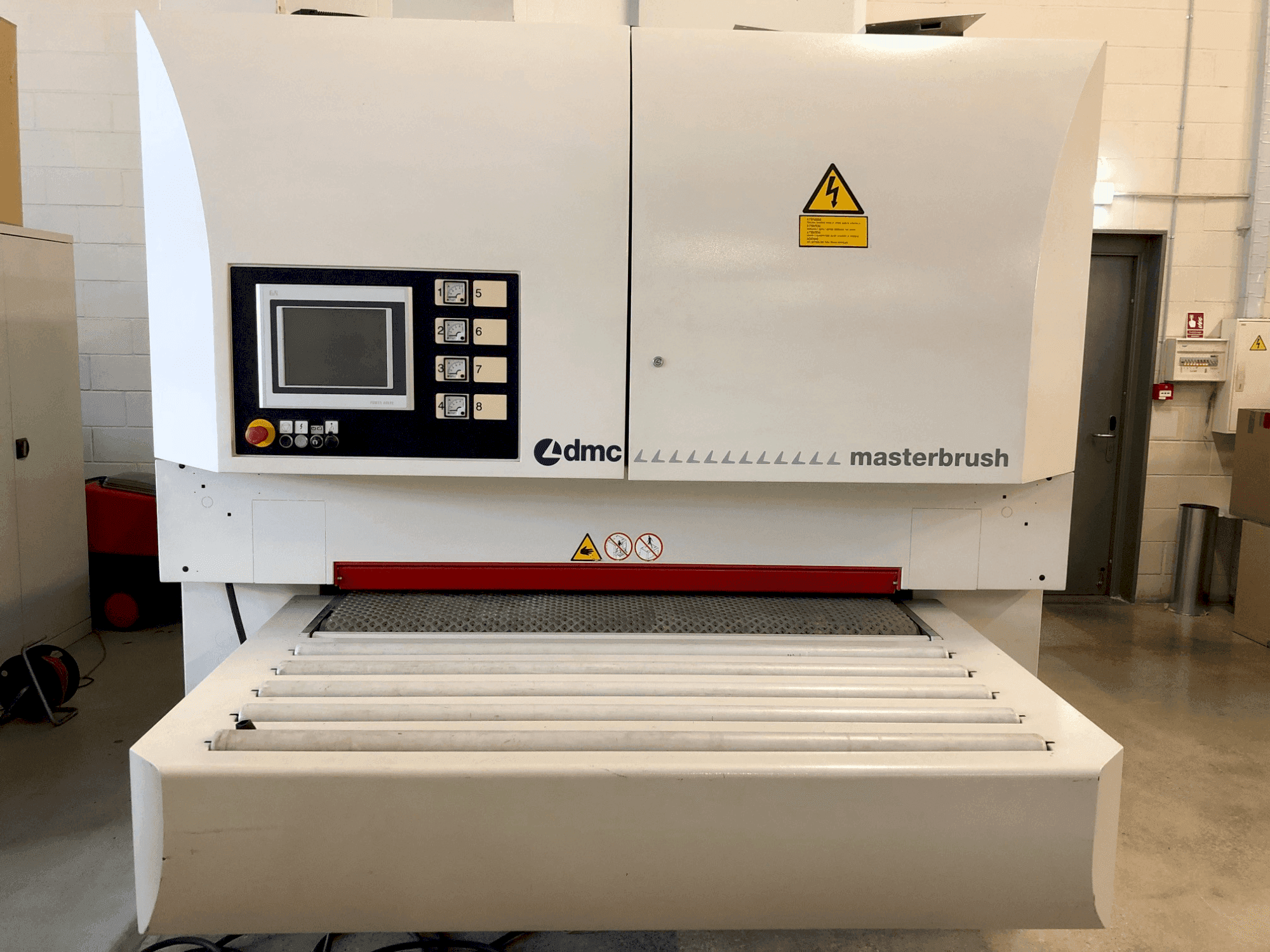

DMC - MASTERBRUSH MB 1350 M4LV-WOO-DMC-2011-00001

Additional equipment

• - Thickness of the product to be processed, min/max: 8 / 200 mm
• - Main Drive: Feed speed, min/max: 3.5 / 18 m/s // Feed motor power: 2.2 Kw (3 HP) // Vacuum motor power: 11 Kw (15 HP)
• - Possibility to adjust the height of the grinding roller with the help of a thickness indicator
• - Automatic stop of the sander in the event of an accident
• - Automatic oscillation of the grinding belt with electronic control
• - Direction of movement of the inclined belt is opposite to the feed of the workpiece
• - Length of the bevel tape: 2620 mm // Width of the inclined belt: 1370 mm // Grinding roller diameter: 320 mm // Rubberized sanding roller hardness: 30 Sh // Speed of the inclined belt: up to 18 m/s
• - Pneumatic switch for extremely precise positioning of the sanding roller
• - Slanted belt blower with electronic oscillation // Electric motor power: 11 Kw (15 HP)
• - Inverter for adjusting the speed of the sanding belt (from 3 to 18 m/s)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Orbital rotating disk : working unit19 discs, diameter 125 mm // manually adjustable working height // engine power: 1. 1 kw (1. 5 hp) // inverter for disc rotation // speed adjustment (from 180 to 500 rpm) // inverter for regulating orbital motion
  • - Two helical brush grinding: units brush roller, diameter 300 mm // manually adjustable working height // motor power: 4 kw (5. 5 hp) // inverter for adjusting the roller rotation speed (from 180 to 500 rpm) // rolls for pressing the workpiece before and after the brush grinding roller
  • - Cleaning unit felt roller: diameter 200 mm // motor power: 2. 2 kw (3 hp) // rotating billet blowers
  • - Adjustable height of grinding roller and brush rollers
  • - Automatic oscillation for precise control
  • - Inverters for adjustable speed control
  • - Pneumatic switch for precise positioning
  • - Multiple working units for comprehensive processing: grinding, orbital rotating, helical brushing, and cleaning
• Qualitative Machine Benefits:
  • - Fine-tuning capabilities for consistent processing quality
  • - Safety features such as automatic stop in case of accidents
  • - Rubberized rollers to protect workpieces
  • - Electronic control for precise operation

Extra information

• - Operational for approximately 6 months with an estimated 960 working hours // More precise data available once connected to electricity
