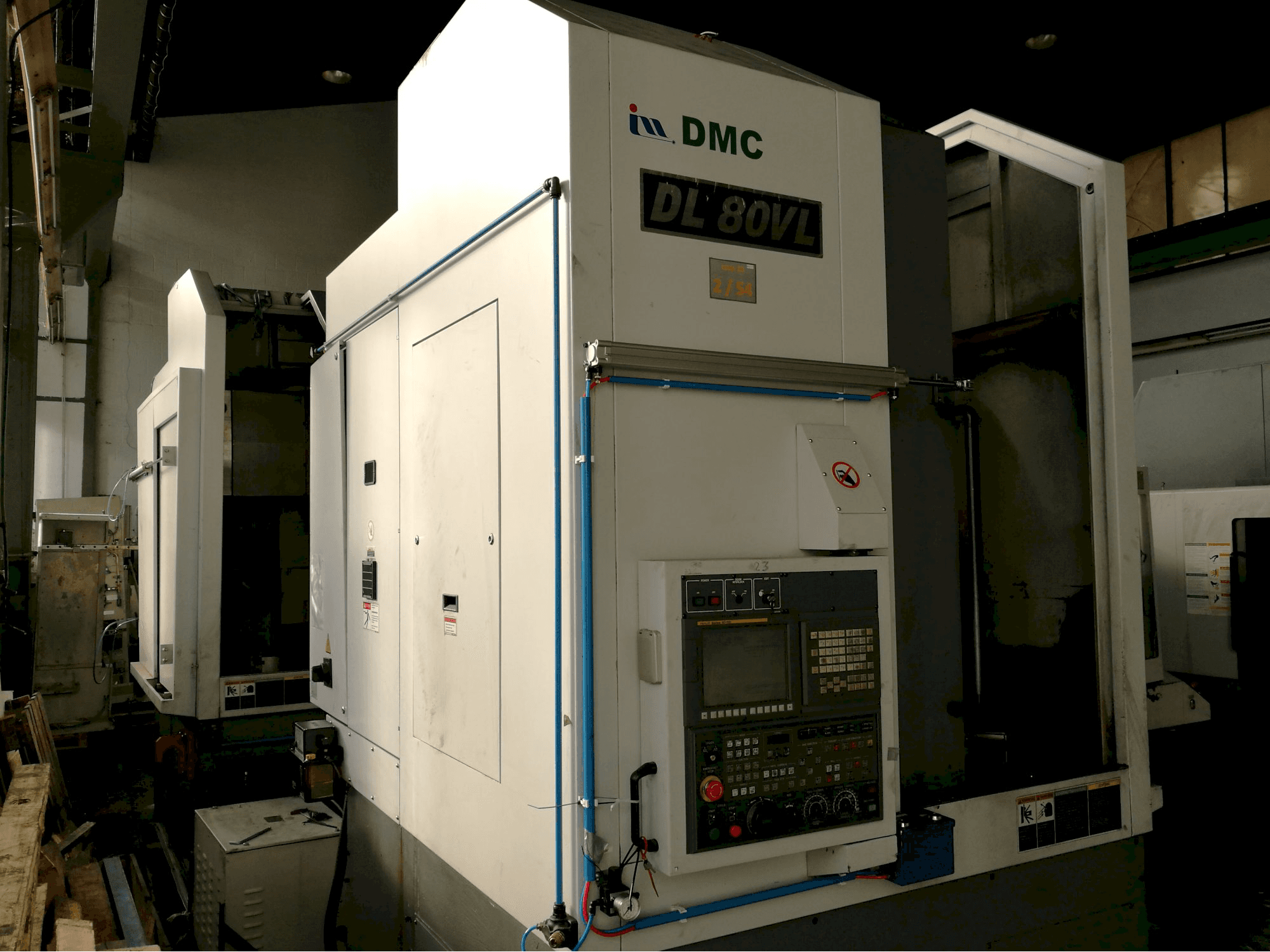

DMC DL 80VL Lathe

Show in original language

This DMC DL 80VL Lathe from 2011 was made in Korea and counts with 42675 productions hours since then. Operated through a FANUC Series Oi-TD Control unit, this machine has mainly worked with steel during the past, incorporating a spindle speed up to 2000 rpm.

Overview

brand: DMC
year: 2011
MODEL: DL 80VL
production hours: 42675
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DMC DL 80VL

General Data

Measurements width: 2865 mm
Measurements depth: 1900 mm
Measurements height: 3370 mm
Machine weight: 9800 kg

Control Unit

Brand: FANUC
Model: Series Oi-TD

Main drive

Spindle speed range: 2000 rpm 1/MIN

Movement

X-AXIS Movement: 390 mm
Y-AXIS Movement: 780 mm

Turret

Number of turrets: 1

Media

Main electronic connection: 240 V / 60 Hz
Power consumption: 57.5 kVA
Air pressure: 5 bar
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
