➤ Used DEMAG IntElect 100/470-340 Smart For Sale

Show in original language

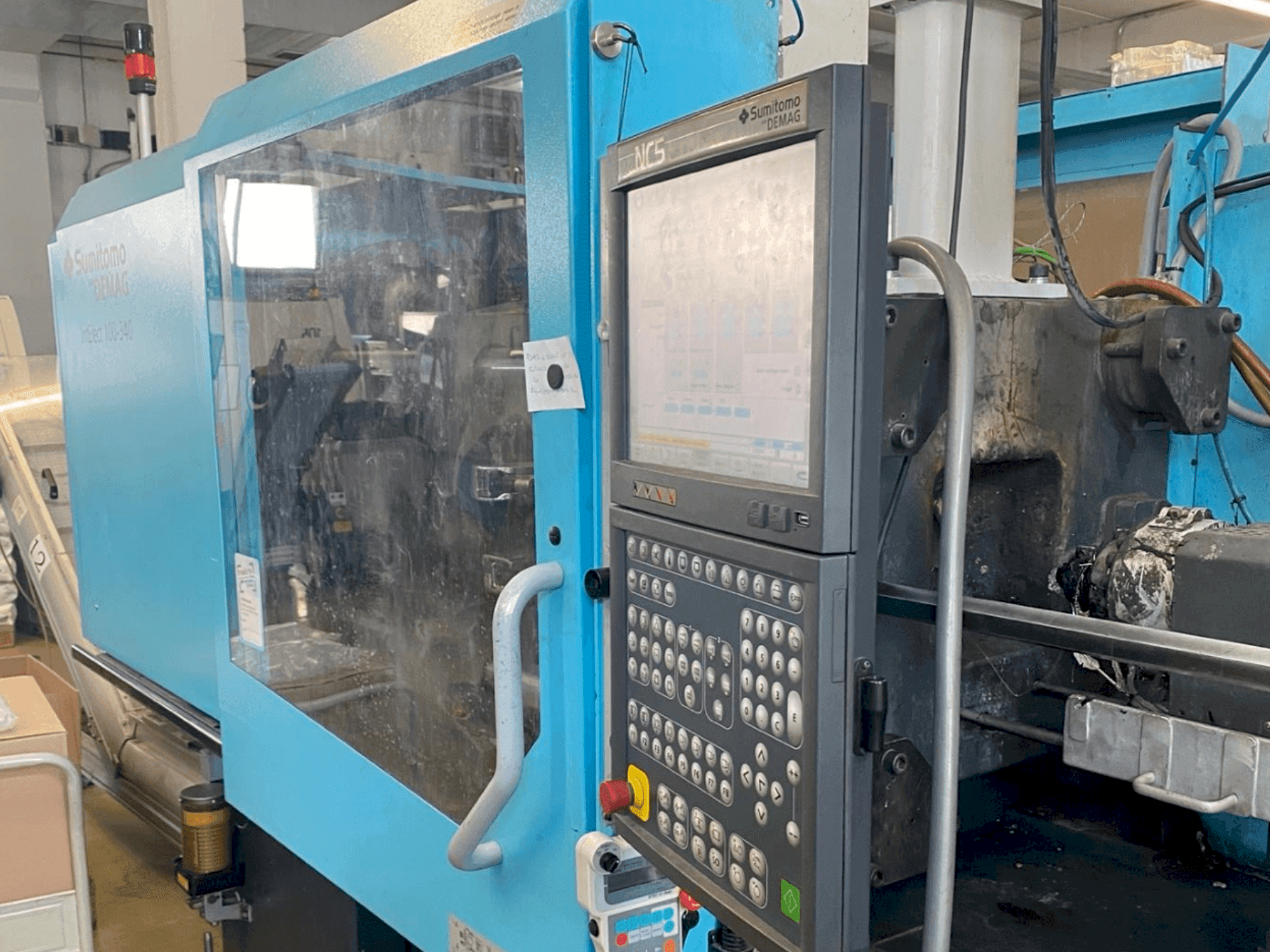

This DEMAG IntElect 100/470-340 Smart was manufactured in 2013. A robust hydraulic injection moulding machine featuring a clamping force of 1000 kN and a screw diameter of 30 mm. It supports a maximum shot volume of 114 cm³ and a shot weight of 102 g. Dimensions are 4633 mm in length, 1304 mm in width, and 1932 mm in height. Ideal for precise moulding operations. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

brand: DEMAG
year: 2013
MODEL: IntElect 100/470-340 Smart
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - DEMAG IntElect 100/470-340 Smart

General Data

Measurements width: 4633 mm
Measurements depth: 1304 mm
Measurements height: 1932 mm
Machine weight: 5400 kg

Injection Unit

Screw diameter: 30 mm
Shot weight: 102 g
Stroke volume: 114 cm³
Injection pressure: 2800 bar
Heating capacity: 8.3 kW
Nozzle pressure: 30 kN

Clamping unit

Clamping force: 1000 kN
Opening stroke: 380 mm
Max open daylight: 810 mm
Distance between bars: 470 x 420 mm
Mould height min: 200 mm
Mould height max: 430 mm
Size of mold platens: 620 x 620 mm
Ejector stroke: 110 mm
Ejector force for / back: 35 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Holding force: 1100 kn
- - Maximum mold weight: 780 kg
- - Maximum mold weight on moving platen: 500 kg
- - Maximum retraction force: 35 kn
- - Dry cycle stroke: 1. 2 – 329 s/mm
- - Core pull: 0 units
- - Screw l/d ratio: 20
- - Maximum nozzle stroke: 350 mm
- - Nozzle immersion depth (svo): 20 mm
- - Material hopper capacity: 35 liters

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
