DAEWOO Puma 350LB Lathe

Show in original language

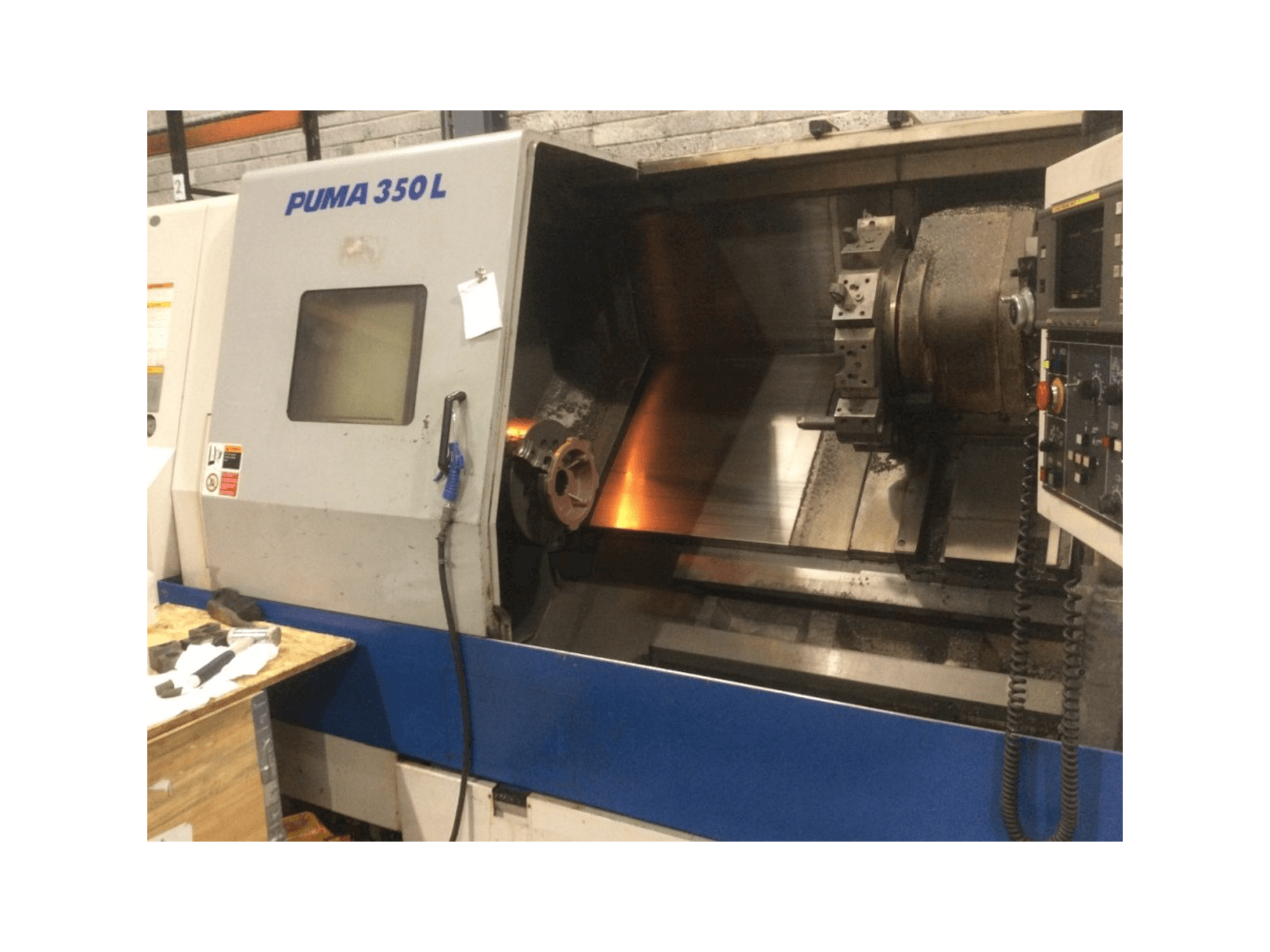

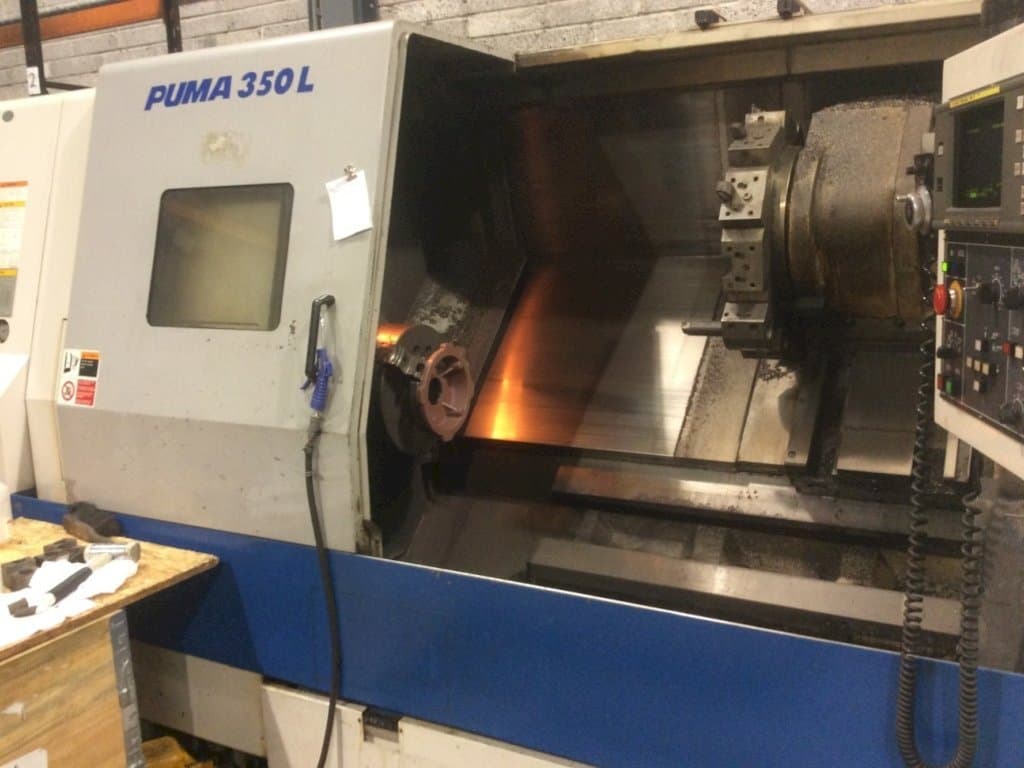

This DAEWOO Puma 350LB Lathe was built in Korea in the year 1998. Equipped with a FANUC Series 18-T Control unit, this 2 axis machine can perform with a spindle speed up to 2000 rpm.

Overview

brand: DAEWOO
year: 1998
MODEL: Puma 350LB
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DAEWOO Puma 350LB

General Data

Measurements width: 5100 mm
Measurements depth: 2390 mm
Measurements height: 2240 mm
Machine weight: 10500 kg

Control Unit

Model: Series 18-T
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN

Movement

X-AXIS Movement: 362 mm
Z-AXIS Movement: 2155 mm

Workpiece

Workpiece drm: 550 mm
Workpiece x: 550 mm
Workpiece z: 2100 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 10

Media

Main electronic connection: 380 V
Chip conveyor: Yes

Additional equipment

- Tailstock
- Hydraulic Steady Rest
- Transformer

Additional Information

Machine history

Material type: Mild steel
End product: Component parts

Machine Benefits

Technical Machine Benefits:
- - 118mm spindle bore
- - 2 axis cnc lathe
- - Max swing: 700mm
- - Swing over cross-slide: 480mm
- - 3 jaw hydraulic chuck
- - Tailstock machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
