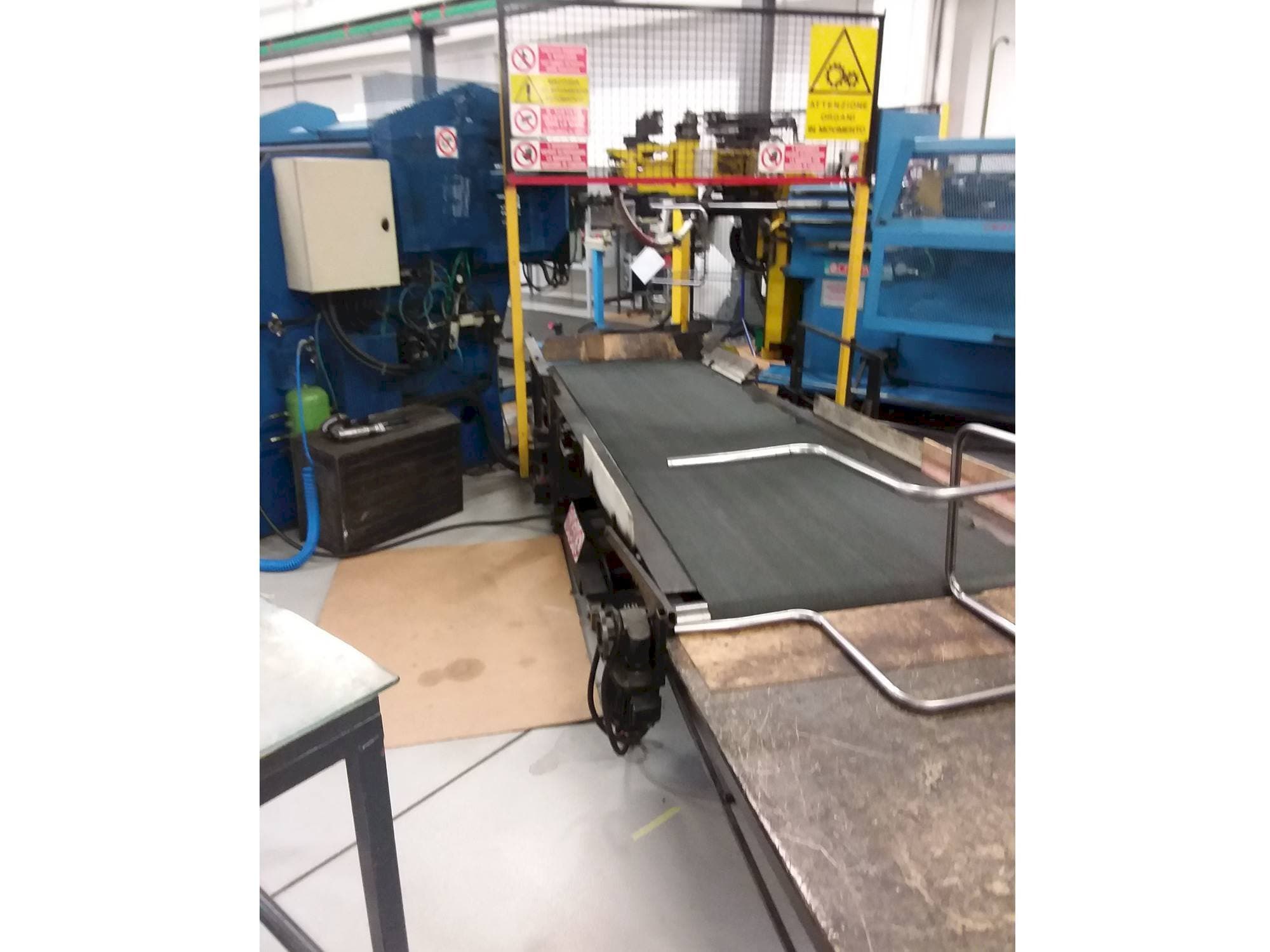

This Crippa 532 Tube Bending Machine was built in the year 2000. It has a record of 59617 production hours. This machine works with a tube bender length of 6500 mm and comes with a loader which supports a weight of 2180 Kg. It has received maintenance / revamping activities carried out overhauled Siemens, motor + encoder replaced, both maintenance performed on March 2020

Overview

brand: Crippa
year: 2000
MODEL: 532
production hours: 59617
application type: Bending
Location: Italy
machine type: Die Bending Machine
availability: Sold

Technical Information - Crippa 532

Media

Main electronic connection: 380 v

Additional equipment

- The tube bending machine comes with a loader

Additional Information

Machine history

Material type: Round tube

Machine Benefits

Technical Machine Benefits:
- - Dimensions and weight of the tube bender: 3600 kg; length 6500 mm; width 2560 mm; height 1970 mm
- - Loader: weight 2180 kg. ; length 5300 mm; width 2150 mm; height 2000 mm
- - Type of electrical supply required and absorbed power: 380 volts; absorbed power 22 kw; absorbed current 40 amperes
- - Charger: absorbed power 8 kw; absorbed current 13 amps
- - Presence of accessories and / or specific equipment supplied with complete equipment bottom + top plate for ø 25 pipe and 62. 5 average radius
Qualitative Machine Benefits:
- - Maintenance / revamping activities carried out overhauled siemens motor serial number el493375105003 + encoder replaced - both maintenance performed on march 2020
- - Ordinary maintenance done
- - Any extraordinary maintenance activities necessary and / or suggested the machine is working, there are no suggestions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
