Colombo - Colombo AM 60CZ-WOO-COL-2006-00001

Name: Colombo Colombo AM 60
Brand: Colombo
SKU: CZ-WOO-COL-2006-00001
Price: 2055150 INR
Availability: InStock

Rs. 2,055,150

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
Used Colombo AM 60 - 2006 - Woodworking machine for sale | gindumac.com

Show in original language

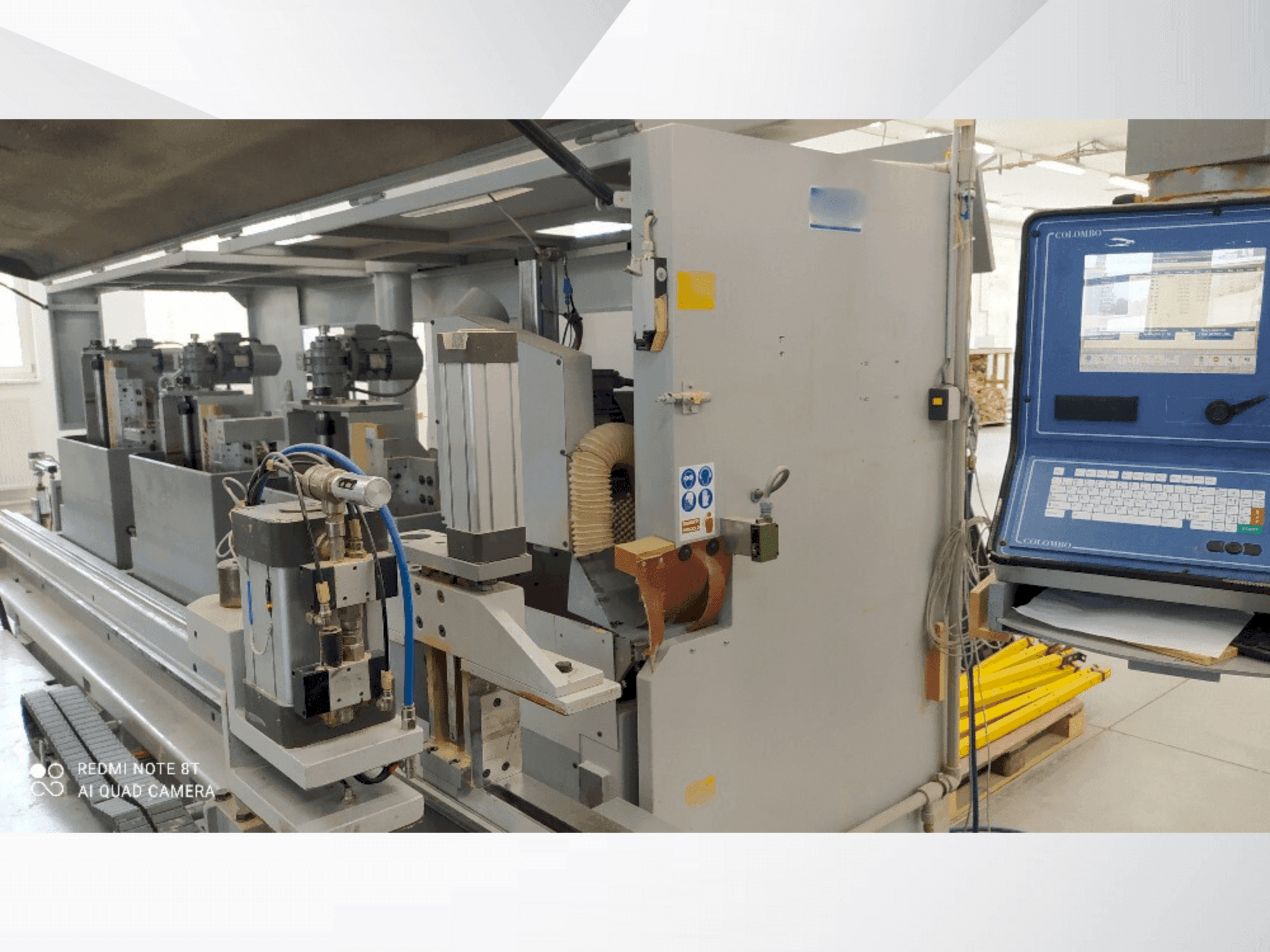

The Colombo AM 60, crafted in 2006, is a specialized woodworking machine built for precision and versatility. With a 4kW cutting unit, it accommodates 400/500mm blades, achieving speeds of 3000 rpm. The cutting heights reach 100mm with a 400mm blade and 155mm with a 500mm blade. An 11kW pinning shaft, with a diameter of Ø50mm and a length of 600mm, supports tools up to 300mm. Its advanced feeding system, rated from 5.5kW to 15kW, adjusts electronically. Contact us for further details.

Overview

brand: Colombo
year: 2006
MODEL: Colombo AM 60
application type: Sawing (Wood)
Location: Czech Republic
machine type: Panel Saw
availability: Immediately

Technical Information - Colombo Colombo AM 60

Main drive

Main motor power: 1.1 - 1.5 kW, electronic adjustment speed 5.5-7.5-11-15 kW

Workpiece

Workpiece x: 270-300 MM
Workpiece y: 180 MM
Workpiece z: 30-135 MM

Table

Outer length: 250 MM
Outer width: 1100 MM
Height adjustment: Maximum 100mm with 400mm blade and 155mm with 500mm blade

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Motor power (cutting unit): 4kw
- - Motor power (pinning shaft): 11kw
- - Motor power (left side profiling shaft): 7. 5kw
- - Blade diameter: 400/500mm
- - Blade rpm: 3000.
- - Blade bor: 30 mm
- - Horizontal blade travel: 100 mm
- - Pinning shaft: diameter - 50 mm, useful shaft length - 600 mm, vertical electronic shaft travel - 540 mm, shaft rpm - 3100, max tool diameter - 300 mm, extraction 2 x 150 mm
- - 1 left side profiling shaft: diameter - 50 mm, usefull spindle length - 600 mm, vertical spindle travel - 540 mm, shaft rpm - 6000, rotation left and right, max tool diameter - 220 mm, extraction - 2 x 150 mm, horizontal adjustment pneumatic - 70 mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
