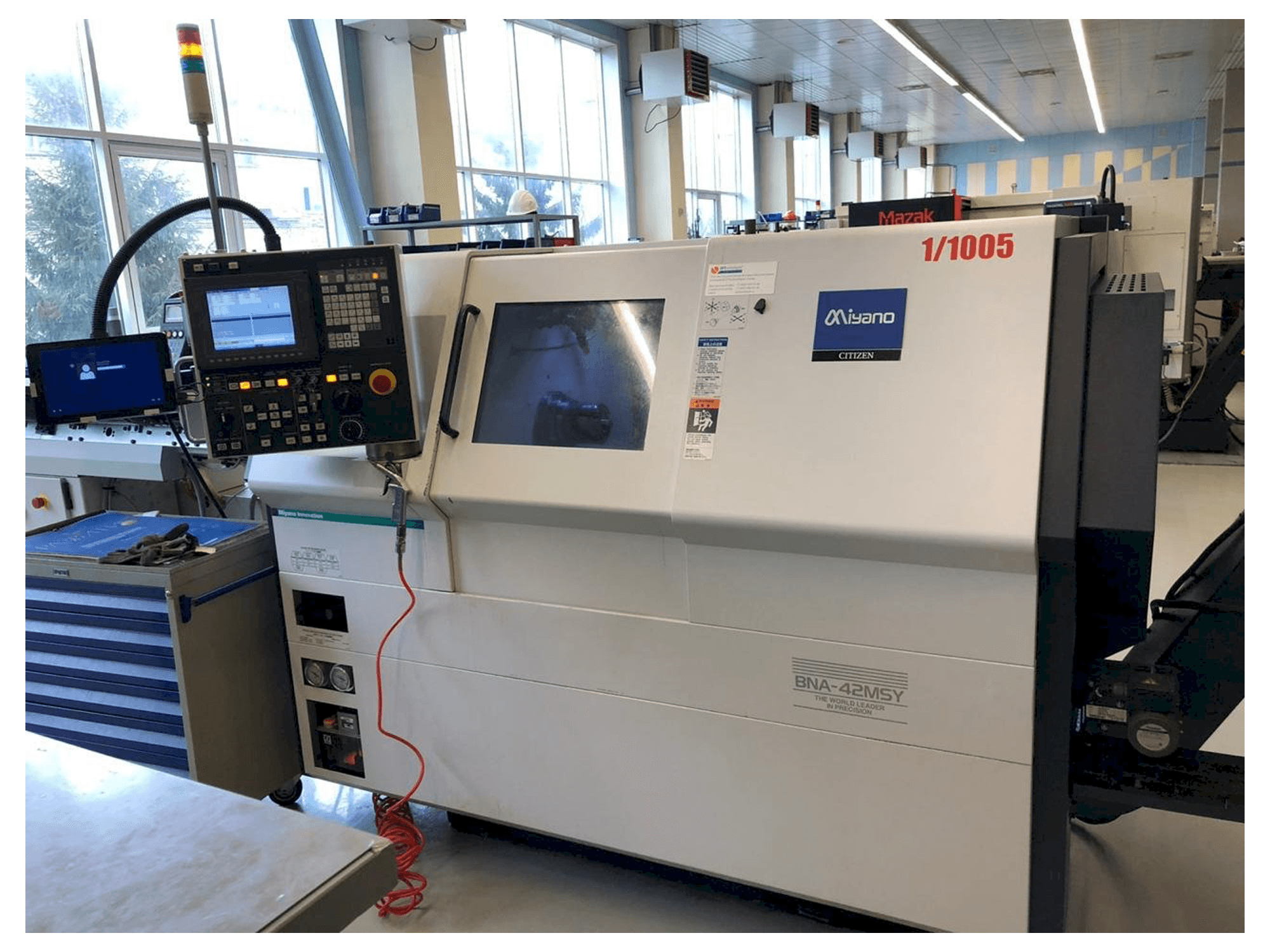

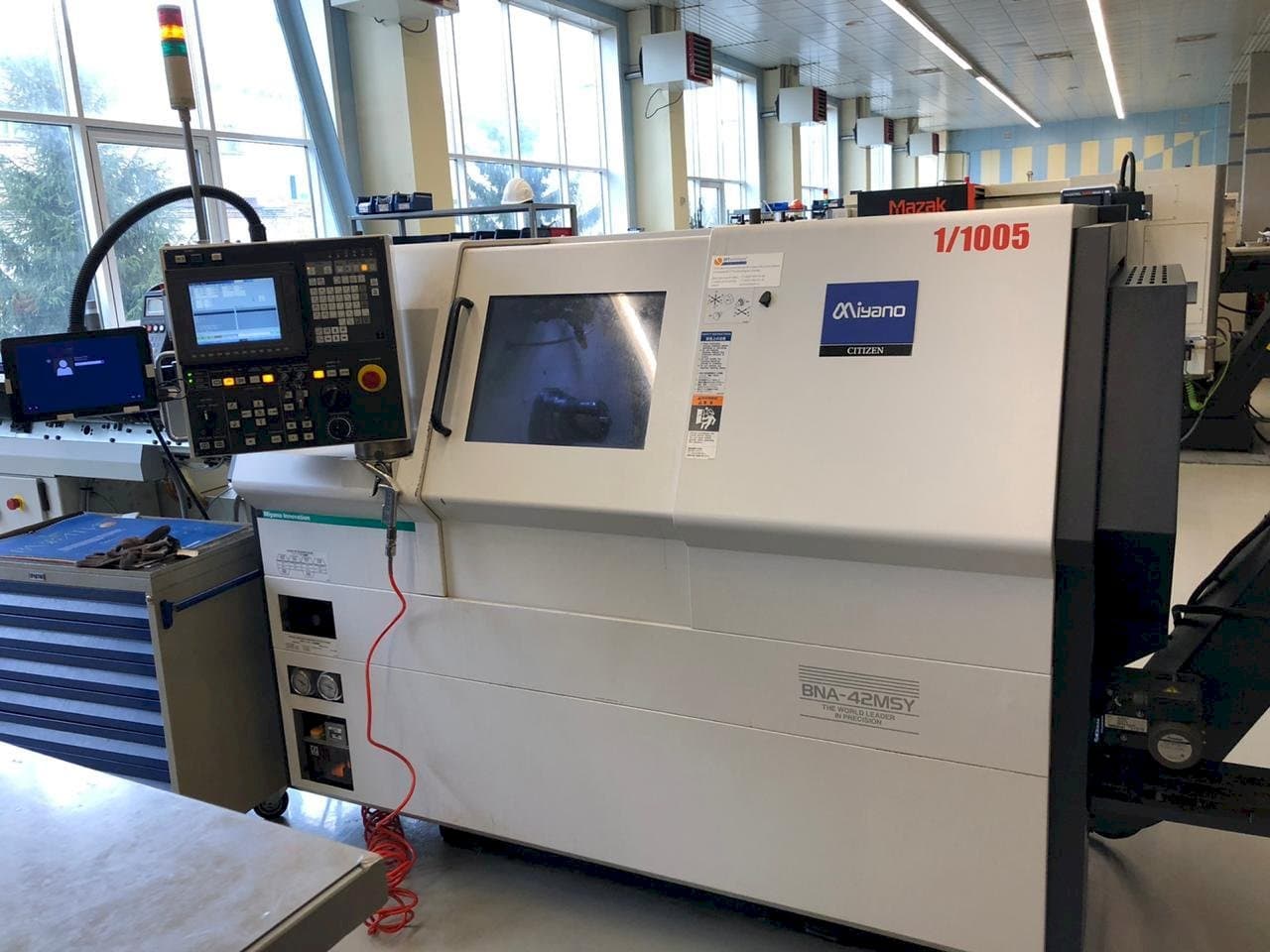

Citizen Miyano BNA-42MSY Lathe

Show in original language

This Citizen Miyano BNA-42MSY Lathe was manufactured in Japan in 2014. This machine counts with 2 spindles, and can operate with a speed up to 6000 rpm.

Overview

brand: Citizen
year: 2014
MODEL: Miyano BNA-42MSY
application type: Turning
Location: Russia
machine type: Turn-Mill Centre
availability: Sold

Technical Information - Citizen Miyano BNA-42MSY

General Data

Measurements width: 2388 mm
Measurements depth: 1450 mm
Measurements height: 1620 mm
Machine weight: 3000 kg

Main drive

Number of spindles: 2
Spindle speed range: 6000 1/MIN
Spindle motor power: 11/7.5 kW

Movement

X-AXIS Rapid traverse: 20m/min
Y-AXIS Rapid traverse: 12m/min
Z-AXIS Rapid traverse: 20m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 8 revolving tools
- - Maximum machining diameter of bar work: ø42mm
- - Maximum machining length: 100 mm
- - 8st. Turret (half-indexing mechanism)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
