➤ Used CITIZEN M32 III - Swiss Type Turning Machine

Show in original language

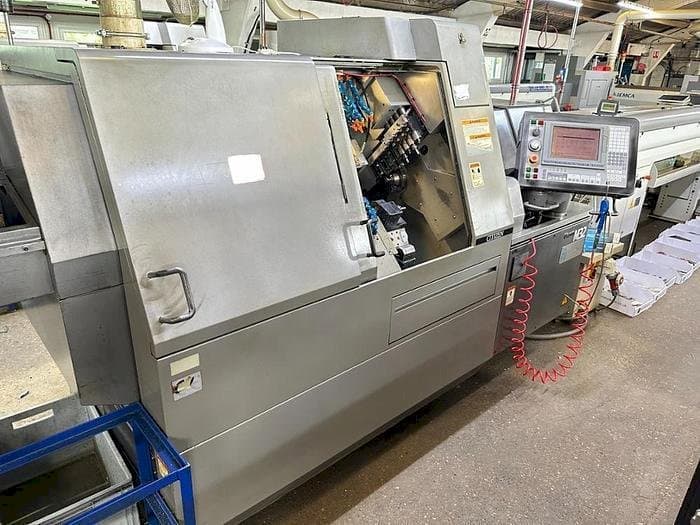

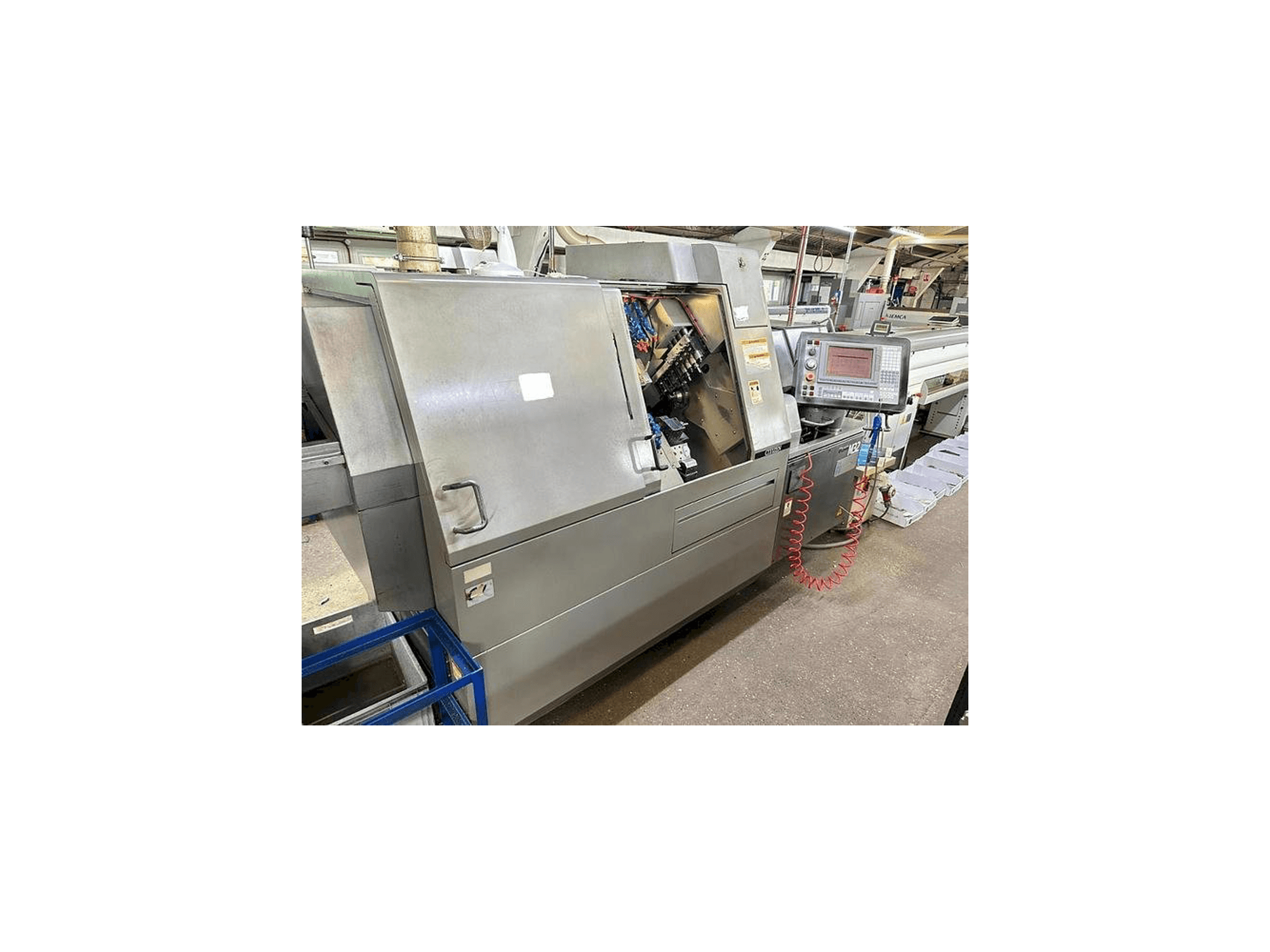

This CITIZEN M32 III Swiss Type Turning was manufactured in the year 2005. It is equipped with a Cincom control unit. The machine has a spindle speed of 8000 rpm. See official brochure attached for more details.

Overview

brand: Citizen
year: 2005
MODEL: M32 III
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Sold

Technical Information - Citizen M32 III

Controller

Brand: Cincom

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 7,5 Kw

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max chucking barstock: Ø 32 mm
- - Max machining lenght: 320 mm
- - Max drilling diameter main spindle: Ø 12 mm
- - Max back-spindle drilling: Ø 10 mm
- - Max. Back-spindle rotating speed: 7. 000 rpm, max. Back-spindle power: 3,5 kw
- - Gang rotary tool: 5 fixed tools + 4 driven tools
- - Turret tools: 10 positions
- - Bar feeder: iemca boss 332 e/r type 37ll - year 2008
- - Equipment: chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

CITIZEN M32 III (2005) - Official Brochure.pdf
