CHENDE CJ480M3V Injection Moulding Machine

Show in original language

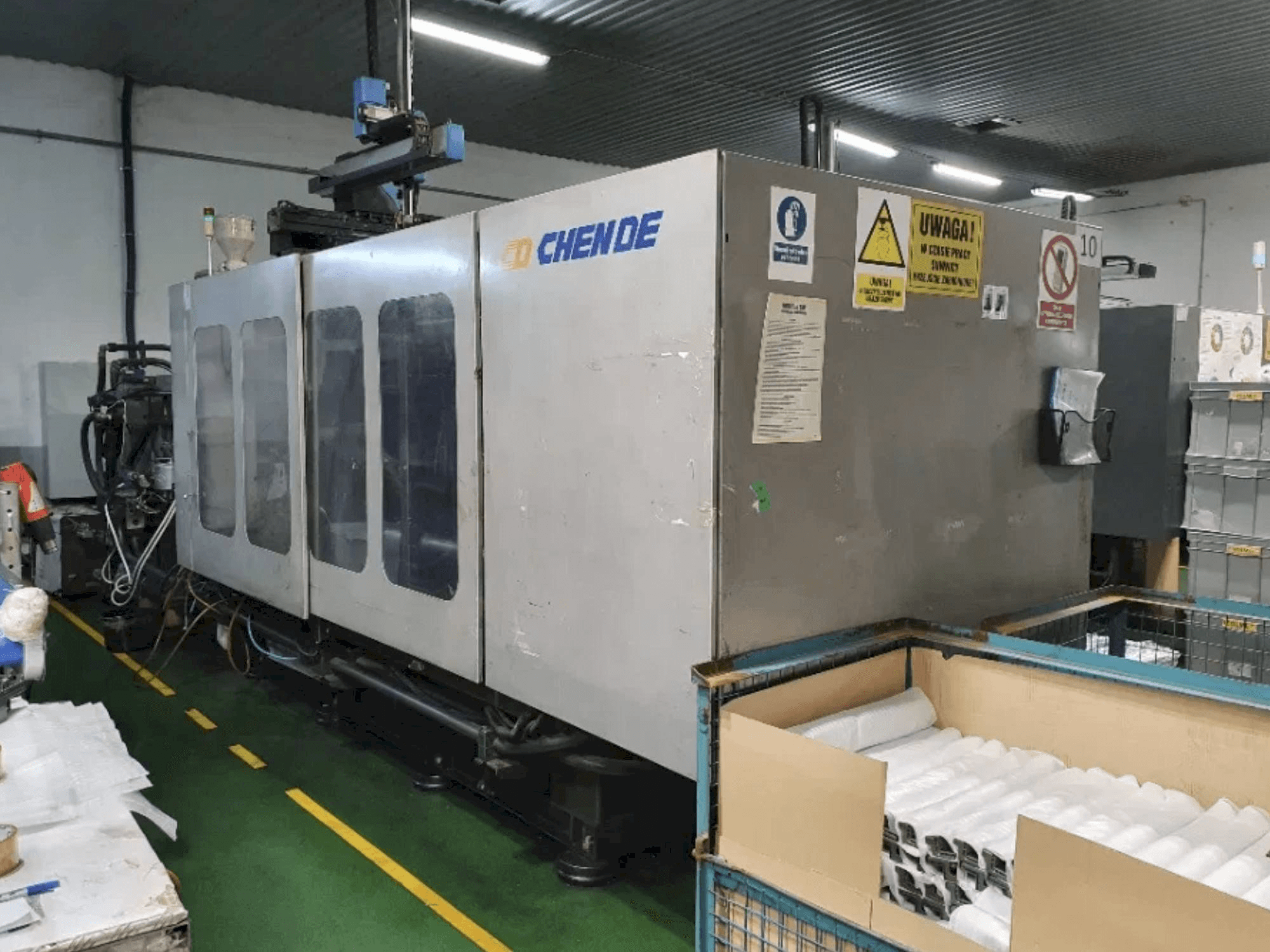

This CHENDE CJ480M3V Injection Moulding Machine was made in the year 2007 in China. It has been working for only 1369 hours. This machine can perform with a clamping force 4800 kN, and an ejection force 111 kN. It includes a Robot in the offer. This machine presents very good working conditions, full documentation is available, and is ready for test.

Overview

brand: CHENDE
year: 2007
MODEL: CJ480M3V
production hours: 1369
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - CHENDE CJ480M3V

General Data

Measurements width: 7800 mm
Measurements depth: 1900 mm
Measurements height: 2300 mm
Machine weight: 20000 kg

Control Unit

Model: MPC40

Table

Outer length: 1135 mm
Outer width: 1130 mm

Clamping unit

Clamping force: 4800 kN
Ejector force for / back: 111 kN

Media

Main electronic connection: 400V / 50Hz

Additional equipment

- Robot included in the offer

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tie bar 800 x 770 mm
- - Distance between bars: 800 x 770 mm
- - Mould height min. : 265 mm
- - Mould height max. : 800 mm
- - Mould opening stroke: 755 mm
Qualitative Machine Benefits:
- - The machine in good working condition.
- - Full documentation available.
- - Machine still at the production and ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
