- Bystronic Bystar 4020 4KW Laser Cutting Machine

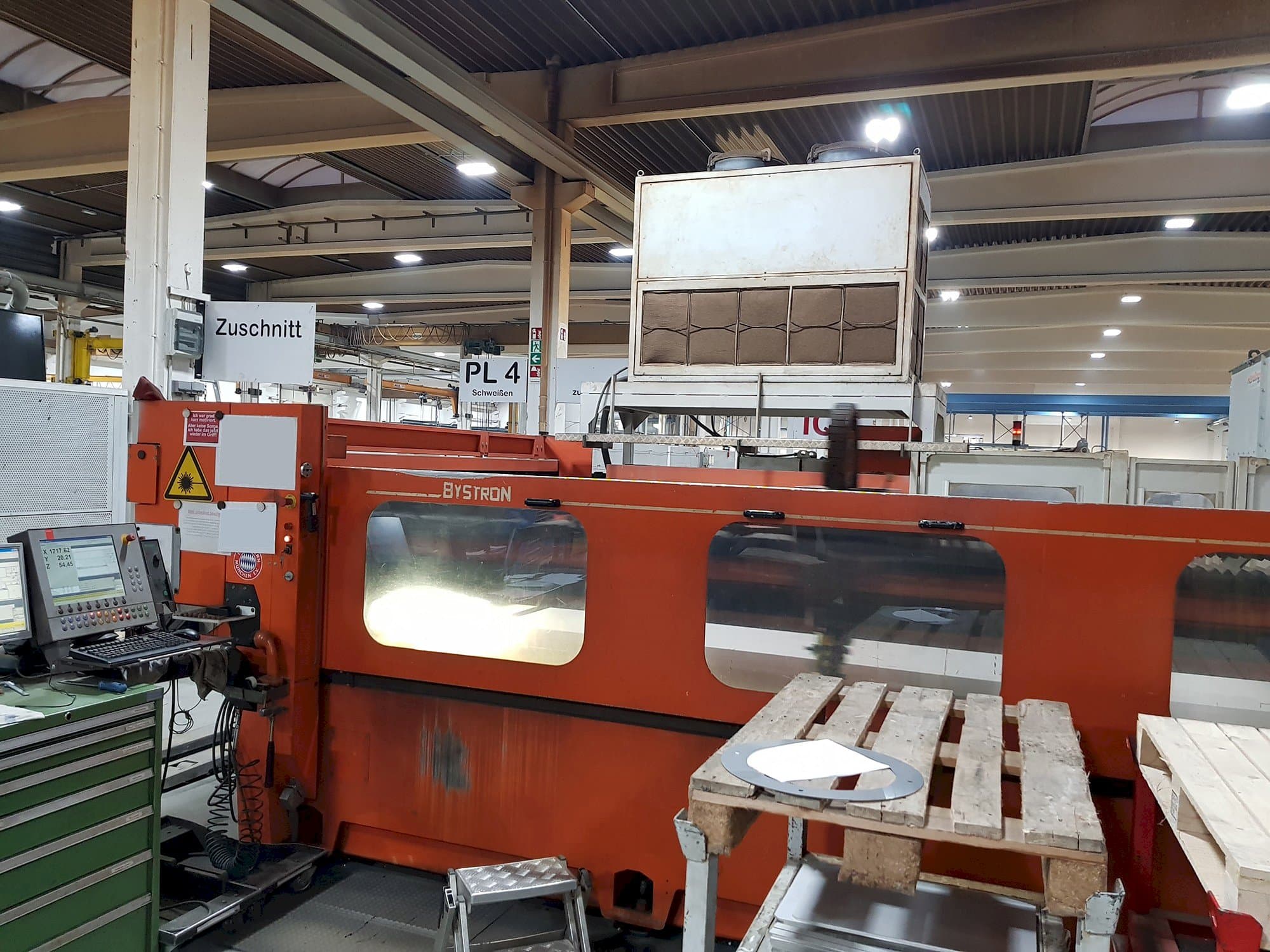

This Bystronic Bystar 4020 4KW Laser Cutting Machine was made in 2001 in Switzerland. Equipped with a Bystronic CNC 96 Control unit (new version with flat screen), it has a production record of 83000 hours and a laser history of 45000 hours, and it stands out due to its potent laser power of 4kW. Furthermore, it comes in an excellent working condition as it has been operated by a Swiss manufacturer with high quality standards. This machine includes a cooling unit and Herding extraction. Its high voltage transformer was replaced with a transformer switcher in October 2018. Furthermore, the end mirror and output window were also replaced in August 2018.
Overview
- brand: Bystronic
- year: 2001
- MODEL: Bystar 4020 4KW
- production hours: 83000
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: Bystronic
Technical Information - Bystronic Bystar 4020 4KW
General Data
- Measurements width: 5800 mm
- Measurements depth: 3900 mm
- Machine weight: 8770 kg
Control Unit
- Brand: Bystronic
- Model: CNC 96
Main drive
- Laserpower: 4 kW
Movement
- X-AXIS Movement: 4000 mm
- Y-AXIS Movement: 2000 mm
Max Material thickness
- Steel: 20 MM
- Stainless steel: 20 MM
- Aluminum: 12 MM
Additional equipment
- - Bypos
- - Cut-Control
- - 2 Cutting heads
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
