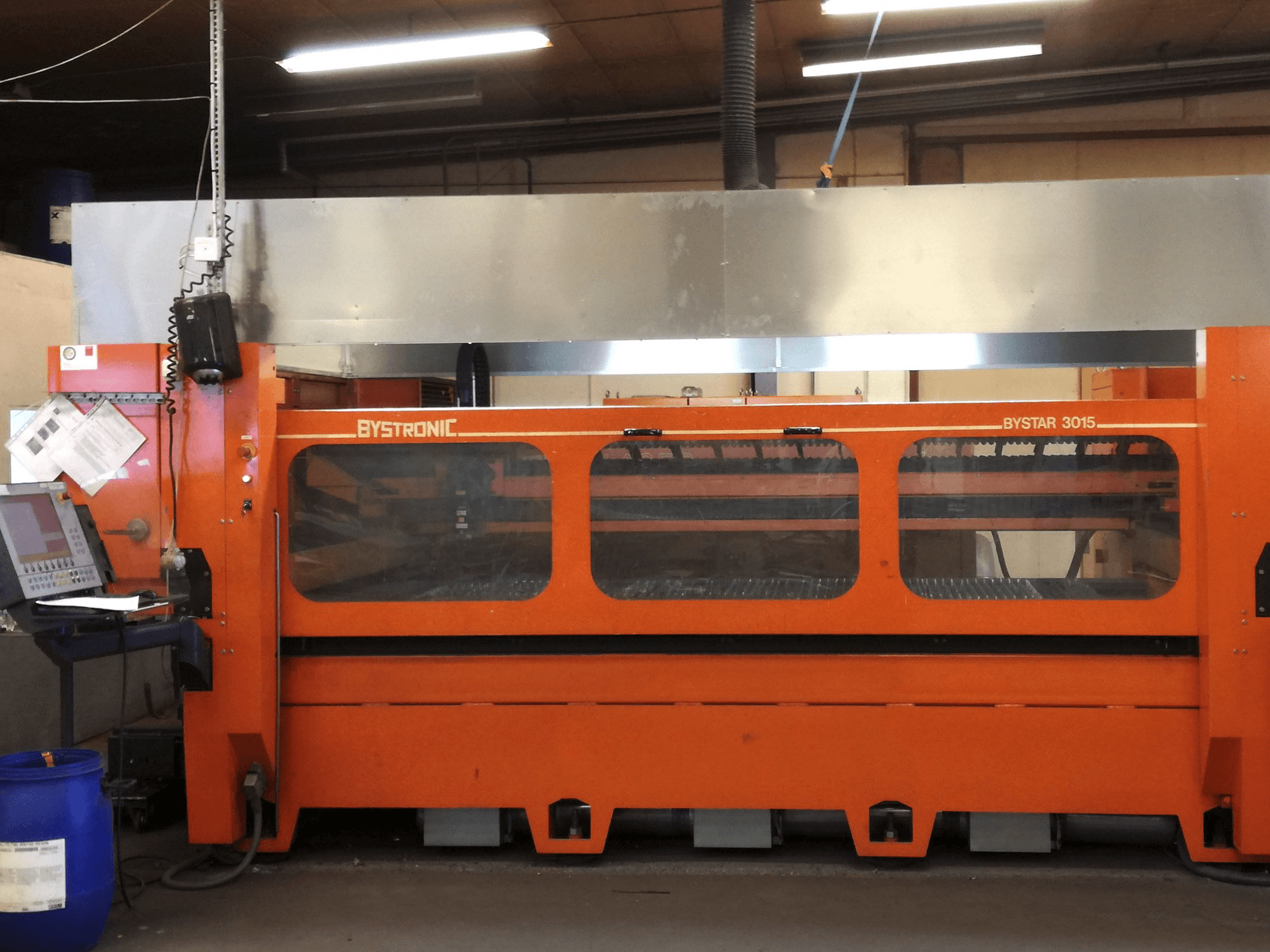

➤ BYSTRONIC Bystar 3015 Laser Cutting Machine - SE-LAS-BYS-2000-00001

Show in original language

This Bystronic Bystar 3015 Laser Cutting Machine was manufactured in 2000 in Switzerland and comes up with a production history of 15713 working hours. Equipped with a Bystronic Control unit, this machine is easy to program and to handle and got its service done in time. In 2017 the pump, compressor, optics and cabling was replaced for this machine, which has mainly worked with metal sheets between 3-5 mm of thickness.

Overview

brand: Bystronic
year: 2000
MODEL: Bystar 3015
production hours: 15713
application type: Cutting
Location: Sweden
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic Bystar 3015

General Data

Measurements width: 4600 mm
Measurements depth: 2200 mm
Measurements height: 1100 mm
Machine weight: 6000 kg

Control Unit

Brand: BYSTRONIC

Main drive

Laserpower: 3 kW
Laser type: CO2
Laser brand: Bystronic

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 210 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece z: 50 mm
Workpiece weight: 750 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 15 mm
Aluminum: 6 mm

Media

Main electronic connection: 380 V
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
