➤ Used BYSTRONIC Bystar 3015 | CO2 Laser Cutting Machine

Show in original language

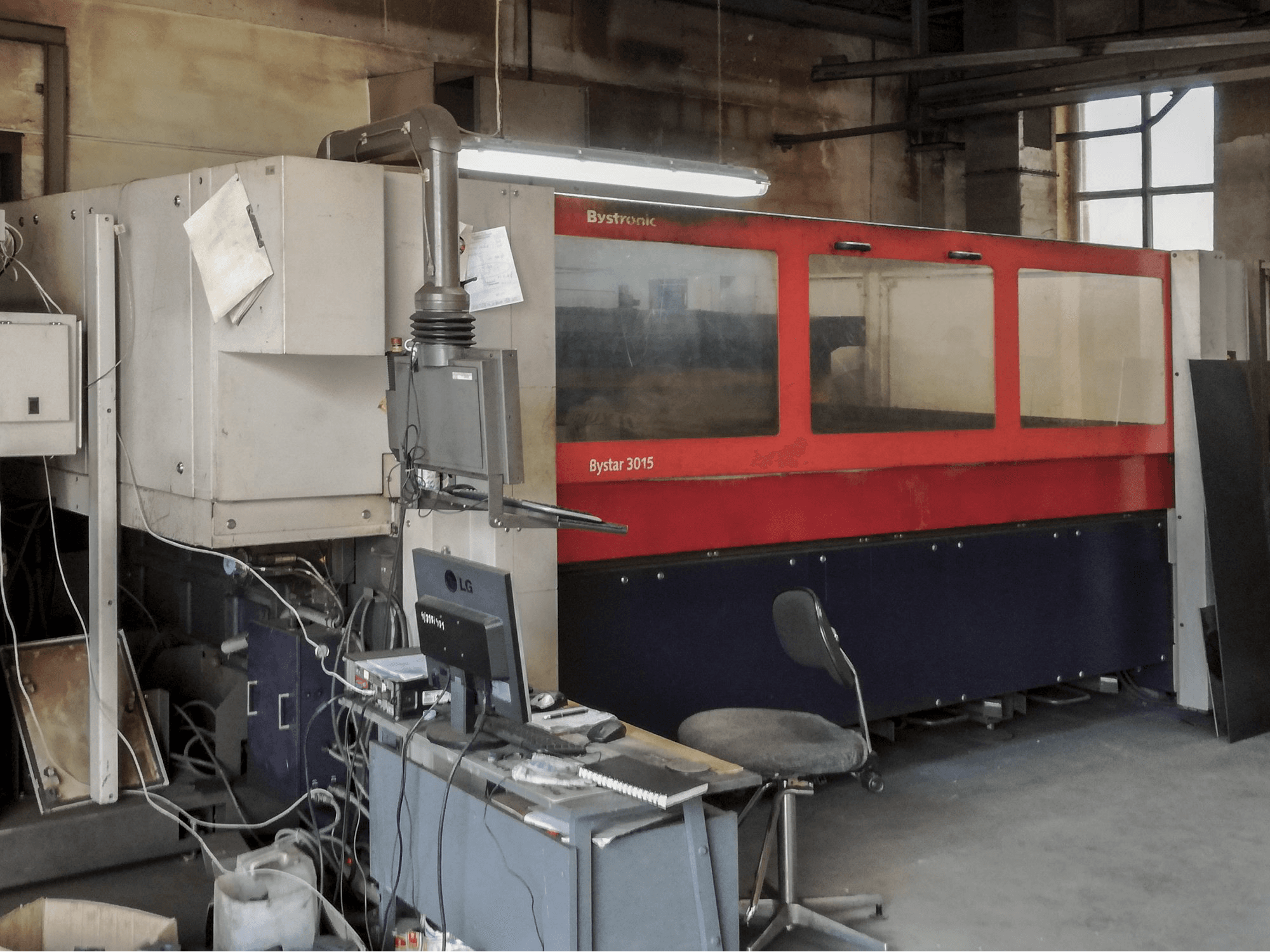

This Bystronic Bystar 3015 Laser Cutting Machine was manufactured in 2006 in Switzerland and has a working record of 21152 production hours. The Bystronic Bystar 3015 comes with a CNC control unit by Bystronic itself and has the advantage of an automatically changing working table. Thanks to frequent service inspections, this machine is in very good condition.

Overview

brand: Bystronic
year: 2006
MODEL: Bystar 3015
production hours: 21152
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic Bystar 3015

General Data

Measurements width: 5700 mm
Measurements depth: 10500 mm
Measurements height: 2200 mm
Machine weight: 13500 kg

Control Unit

Brand: BYSTRONIC

Main drive

Laserpower: 3 kW
Laser type: CO2
Laser brand: Bylaser 3000

Movement

X-AXIS Movement: 3050 mm
Y-AXIS Movement: 1525 mm
Z-AXIS Movement: 170 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Max Material thickness

Steel: 20 mm
Aluminum: 29 mm

Media

Main electronic connection: 3x 400 V / 50 Hz

Additional equipment

- Second working table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
