➤ Second Hand BYSTRONIC Bystar 3015 | Laser Cutting Machine

Show in original language

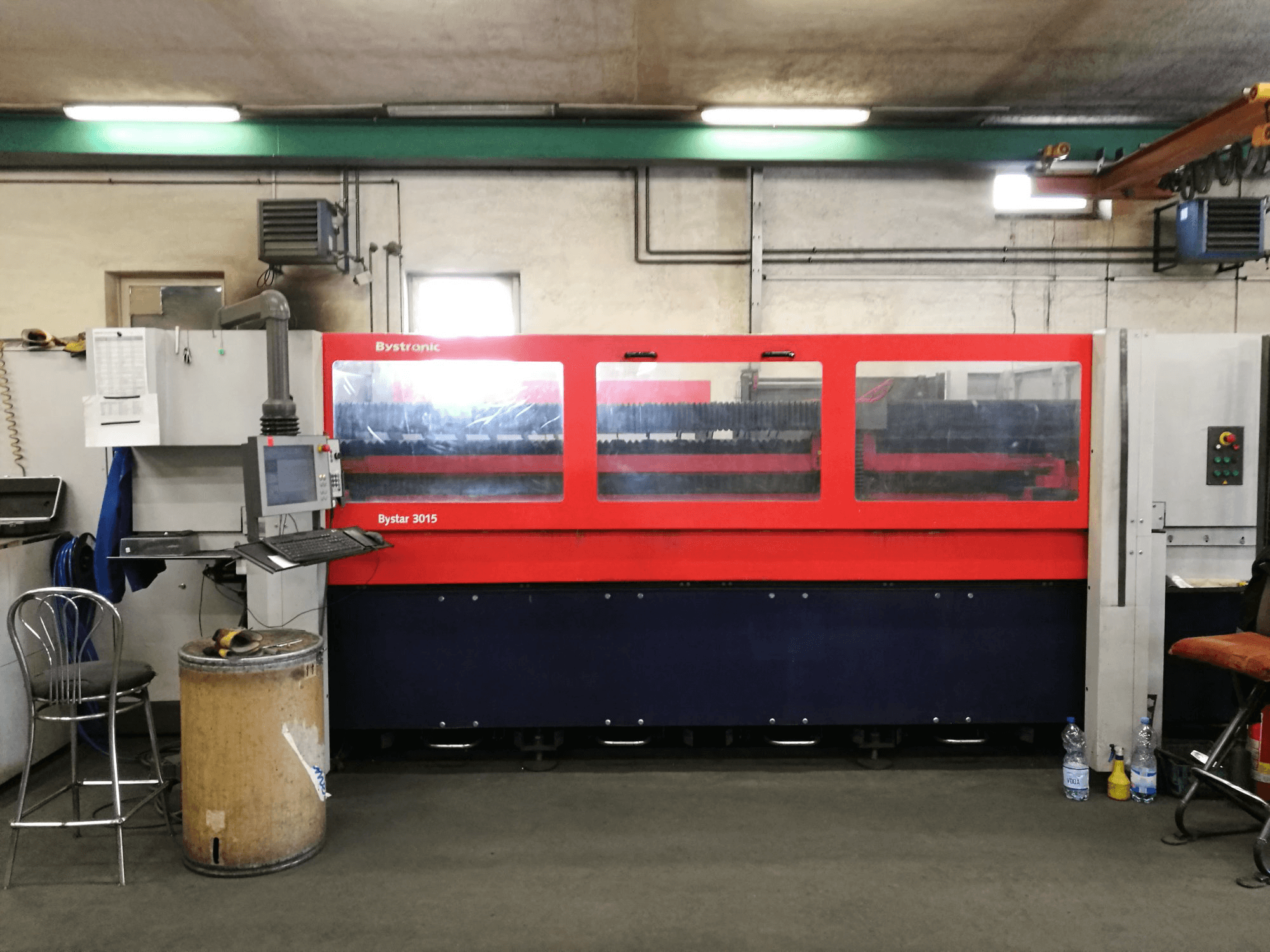

This Bystronic Bystar 3015 Laser Cutting Machine from Switzerland has been working for 46563 production hours. Equipped with a Bystronic Control unit, this machine has mainly worked with steel and aluminium sheets of up to 20 mm of thickness during the past and is also able to process tubes with up to 350 mm of diameter. The model has been regularly serviced by Bystronic.

Overview

brand: Bystronic
year: 2005
MODEL: Bystar 3015
production hours: 46563
application type: Cutting
Location: Czech Republic
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic Bystar 3015

General Data

Measurements width: 13700 mm
Measurements depth: 6000 mm
Machine weight: 13500 kg

Control Unit

Brand: BYSTRONIC

Main drive

Laserpower: 4.4 kW
Plasma brand: Bylaser 4400
Laser type: CO2

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 170 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 10 mm

Media

Main electronic connection: 400 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
