Bystronic BySprint Fiber 3015

Show in original language

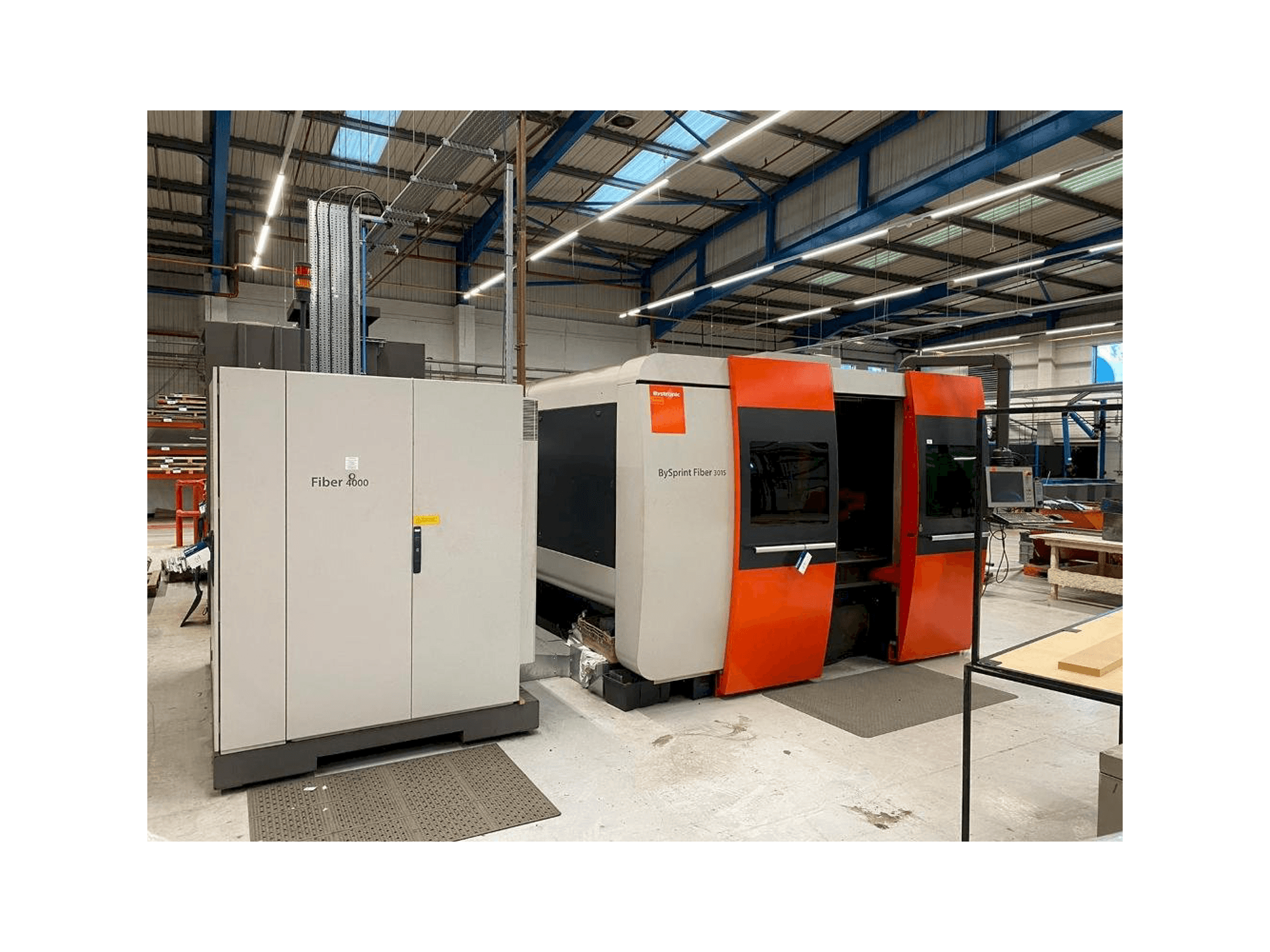

This Bystronic BySprint Fiber 3015 Fiber Laser Cutting Machine was manufactured in the year 2014 in Switzerland. It is equipped with a 15" touch screen ByVision control unit. This machine has a record of 7500 cutting hours. It works with a laser power 4 kW and it can cut steel sheets up to 20 mm of thickness. This machine is in very good condition and presents its full service history.

Overview

brand: Bystronic
year: 2014
MODEL: BySprint Fiber 3015
production hours: 7500
application type: Cutting
Location: United Kingdom
machine type: Fiber Laser Cutting Machine
availability: Sold

Technical Information - Bystronic BySprint Fiber 3015

General Data

Machine weight: 13000 Kg

Control Unit

Model: ByVision

Main drive

Laserpower: 4 kW

Movement

X-AXIS Movement: 3000 MM
Y-AXIS Movement: 1500 MM
Z-AXIS Movement: 70 MM

Workpiece

Workpiece weight: 890 KG

Max Material thickness

Steel: 20 MM
Stainless steel: 15 MM
Aluminum: 15 MM

Media

Power consumption: 25 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Positioning accuracy +/- 0. 1 mm
- - Max axis acceleration 12 m/s2
- - Edge detection
- - Byvision with 15" touch screen, keyboard and manual control unit
- - Dust collector
- - Chillier
- - Loading arm
- - Water cleaning gun
Qualitative Machine Benefits:
- - Full service history
- - Very good condition
- - Installed in 2015

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
