➤ BYSTRONIC Bysprint 3015 | Laser Cutting Machine

Show in original language

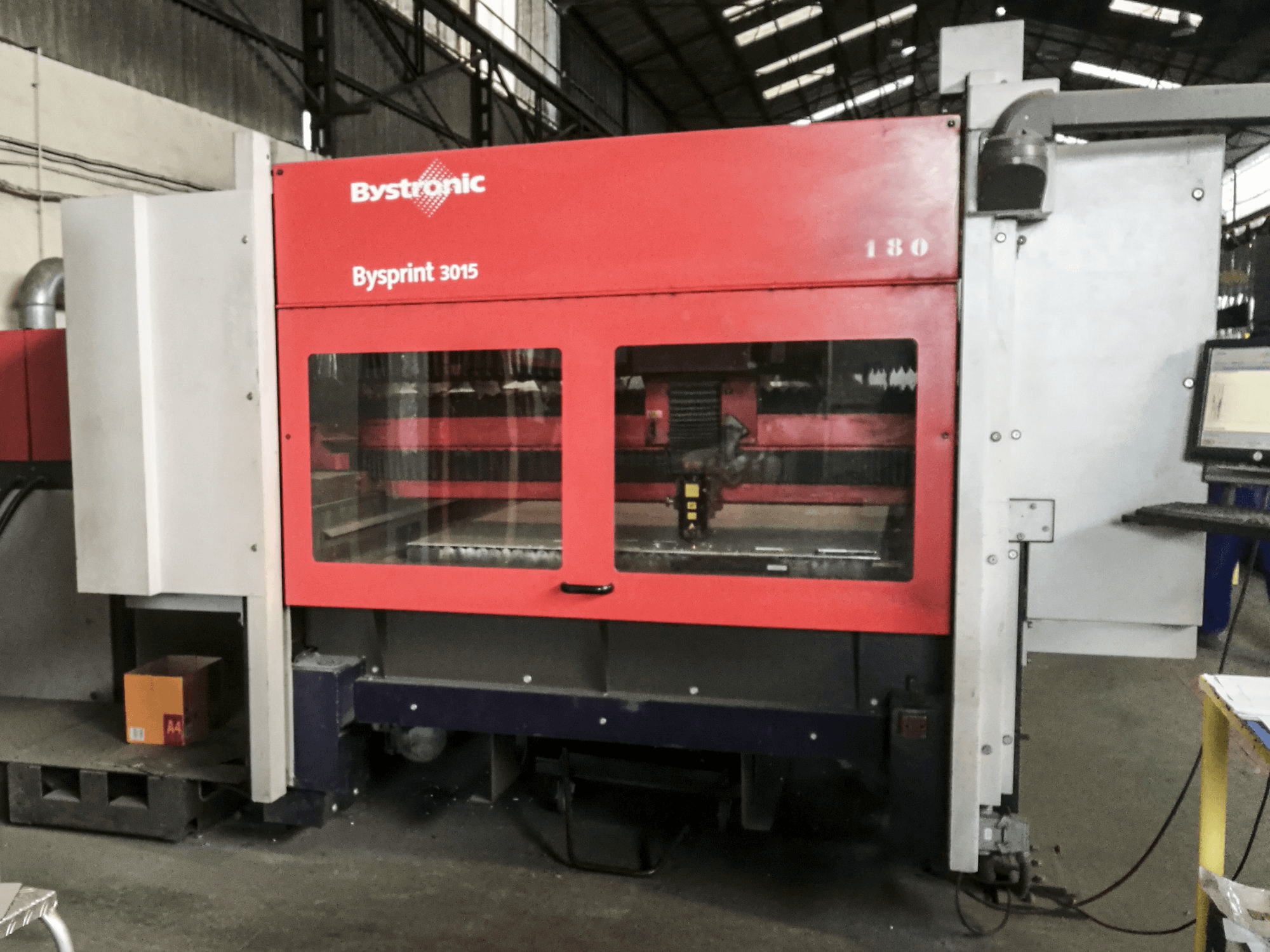

This Bystronic BySprint 3015 Laser Cutting Machine was manufactured in 2006 in Switzerland and has a working record of 30496 production hours of which the laser was switched on for 20211 hours. Operated through a ByVision P8008B Control unit, this 3 kW laser cutter comes in good conditions due to regular Bystronic maintenance.

Overview

brand: Bystronic
year: 2006
MODEL: BySprint 3015
production hours: 30496
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic BySprint 3015

General Data

Measurements width: 12900 mm
Measurements depth: 7000 mm
Measurements height: 2920 mm
Machine weight: 12000 kg

Control Unit

Model: P8008B
Brand: BYSTRONIC

Main drive

Laserpower: 3 kW
Laser type: CO2

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 50 m/min
Y-AXIS Movement: 1500 mm
Y-AXIS Working Feed: 50 m/min
Z-AXIS Movement: 70 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece z: 70 mm
Workpiece weight: 750 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 8 mm

Machine specific data

Number of cutting heads: 2
Size of cutting head 1: 5"
Size of cutting head 2: 7.5"

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 45 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
