➤ BYSTRONIC BySpeed 3015 - Laser Cutting Machine For Sale

Show in original language

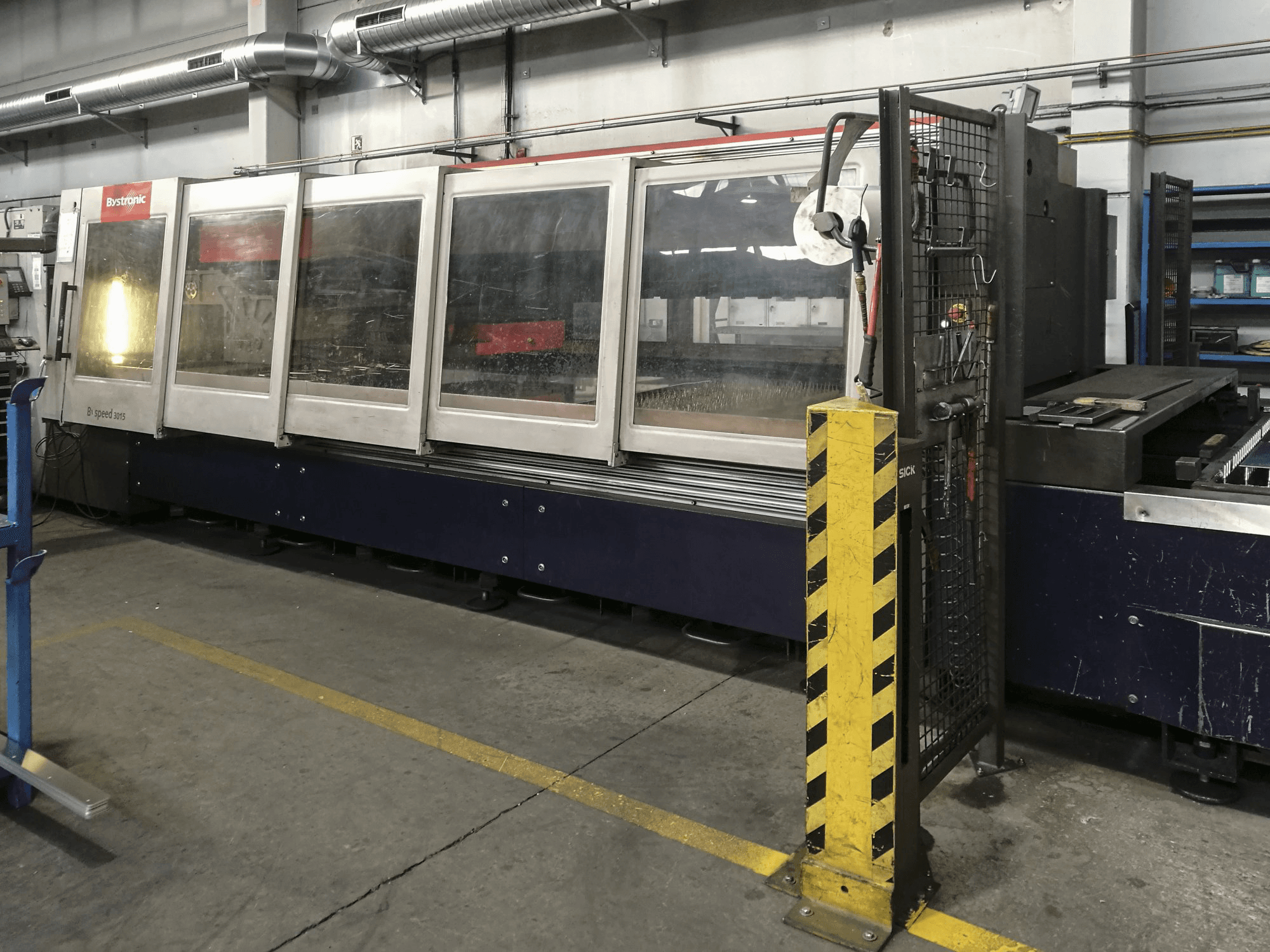

This Bystronic Byspeed 3015 Laser Cutting Machine was manufactured in 2006 in Switzerland and has a working record of 52295 production hours. This machine, which is equipped with a Bystronic ByVision Control unit, stands out due to its very good accessibility as well as its big working table and comes in a very good working condition as it was regularly inspected by Bystronic maintenance.

Overview

brand: Bystronic
year: 2006
MODEL: Byspeed 3015
production hours: 52295
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic Byspeed 3015

General Data

Measurements width: 13500 mm
Measurements depth: 5550 mm
Measurements height: 2200 mm
Machine weight: 20000 kg

Control Unit

Model: ByVision
Interface: P8104
Brand: BYSTRONIC

Main drive

Laserpower: 5.2 kW
Laser type: CO2
Laser brand: Bylaser 5200

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 100 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece z: 100 mm
Workpiece weight: 890 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Machine specific data

Number of cutting heads: 3
Size of cutting head 1: 5"
Size of cutting head 2: 7.5"
Size of cutting head 3: 7.5"

Media

Main electronic connection: 3x 400 V
Power consumption: 62 kVA
Air pressure: 6 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
