Bystronic - BTL 4020FI-LAS-BYS-2001-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Bystronic BTL 4020

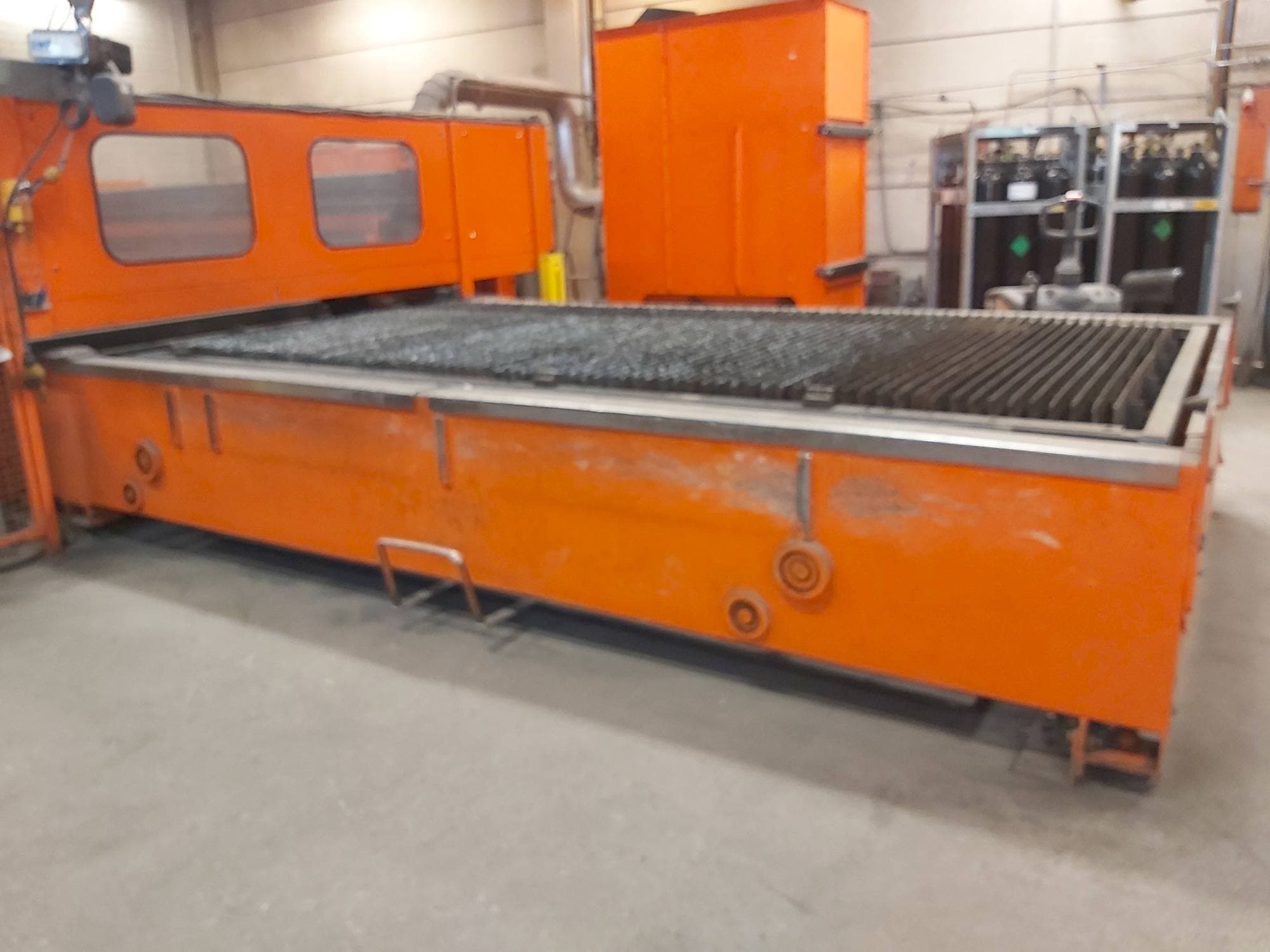

This Bystronic BTL 4020 Laser Cutting Machine was manufactured in the year 2001 in Switzerland. It has a record of 48730 production hours. This machine has a control unit of the same brand. It can work with a CO2 laser power 4 kW.
Overview
- brand: Bystronic
- year: 2001
- MODEL: BTL 4020
- production hours: 48730
- application type: Cutting
- Location: Finland
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: BYSTRONIC
Technical Information - Bystronic BTL 4020
General Data
- Measurements width: 4500 mm
- Measurements depth: 6400 mm
- Measurements height: 2000 mm
- Machine weight: 16000 kg
Control Unit
- Brand: BYSTRONIC
Main drive
- Laserpower: 4 KW
- Laser type: C02
Workpiece
- Workpiece x: 4000 MM
- Workpiece y: 2000 MM
Max Material thickness
- Steel: 20 mm
- Stainless steel: 12 mm
- Aluminum: 6 mm
Media
- Main electronic connection: 400 V 50 HZ
- Power consumption: 80 KW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
