BOY 80M Injection Moulding Machine

Show in original language

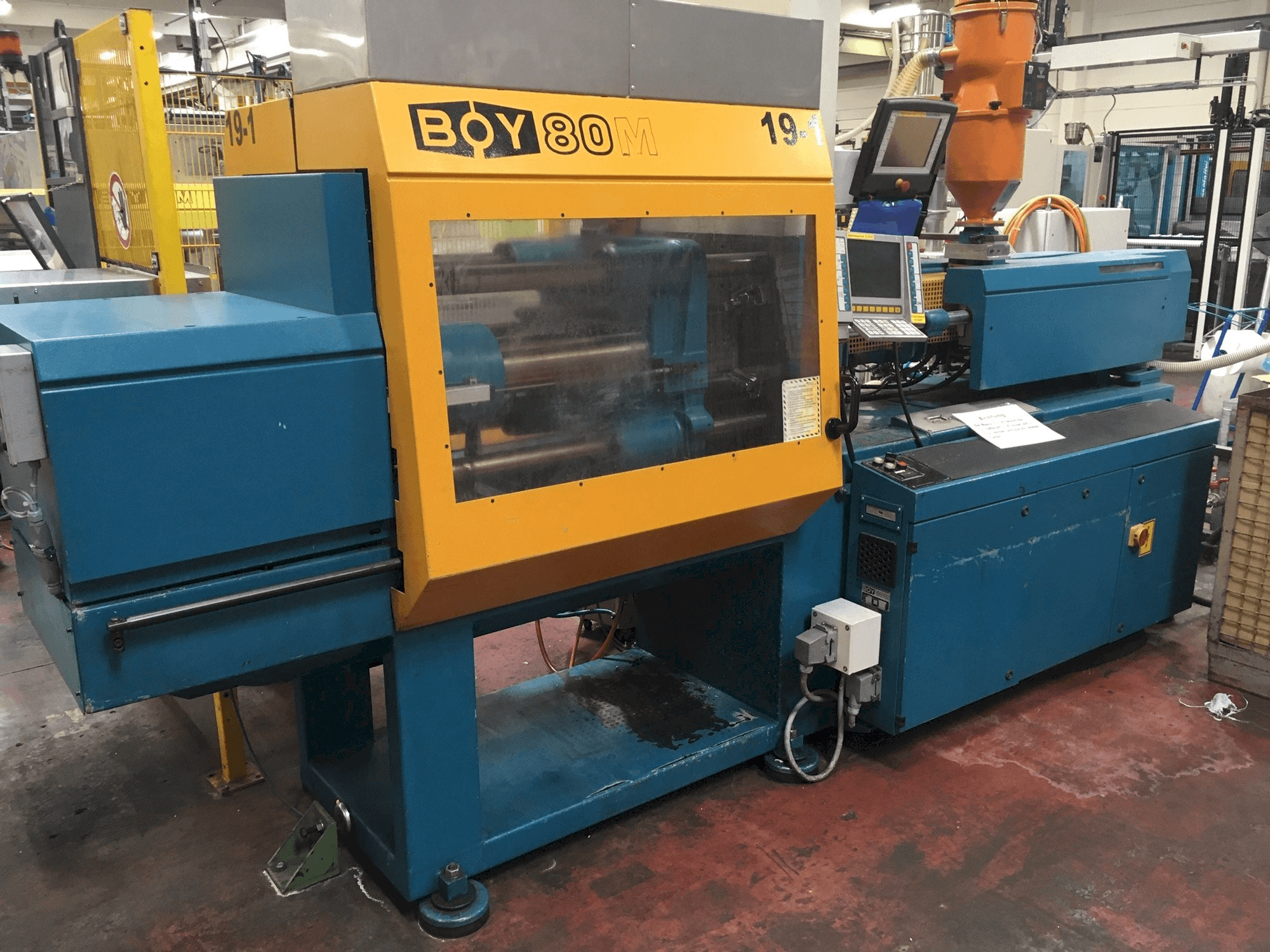

This BOY 80M Injection Moulding Machine was manufactured in 1996 in Germany and has a production history of 86487 hours. Equipped through a Procan Control unit, this machine can operate with a clamping force of 800 kN.

Overview

brand: BOY
year: 1996
MODEL: 80M
production hours: 86487
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - BOY 80M

General Data

Measurements width: 3395 mm
Measurements depth: 1000 mm
Measurements height: 1995 mm
Machine weight: 3250 kg

Controller

Brand: Procan

Injection Unit

Stroke volume: 200 CM³
Injection pressure: 1532 bar

Clamping unit

Clamping force: 800 kN
Opening stroke: 680 mm
Distance between bars: 410x358 mm
Mould height min: 250 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Euromap 12

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
