Bodor C3 Fiber laser cutting machine

Show in original language

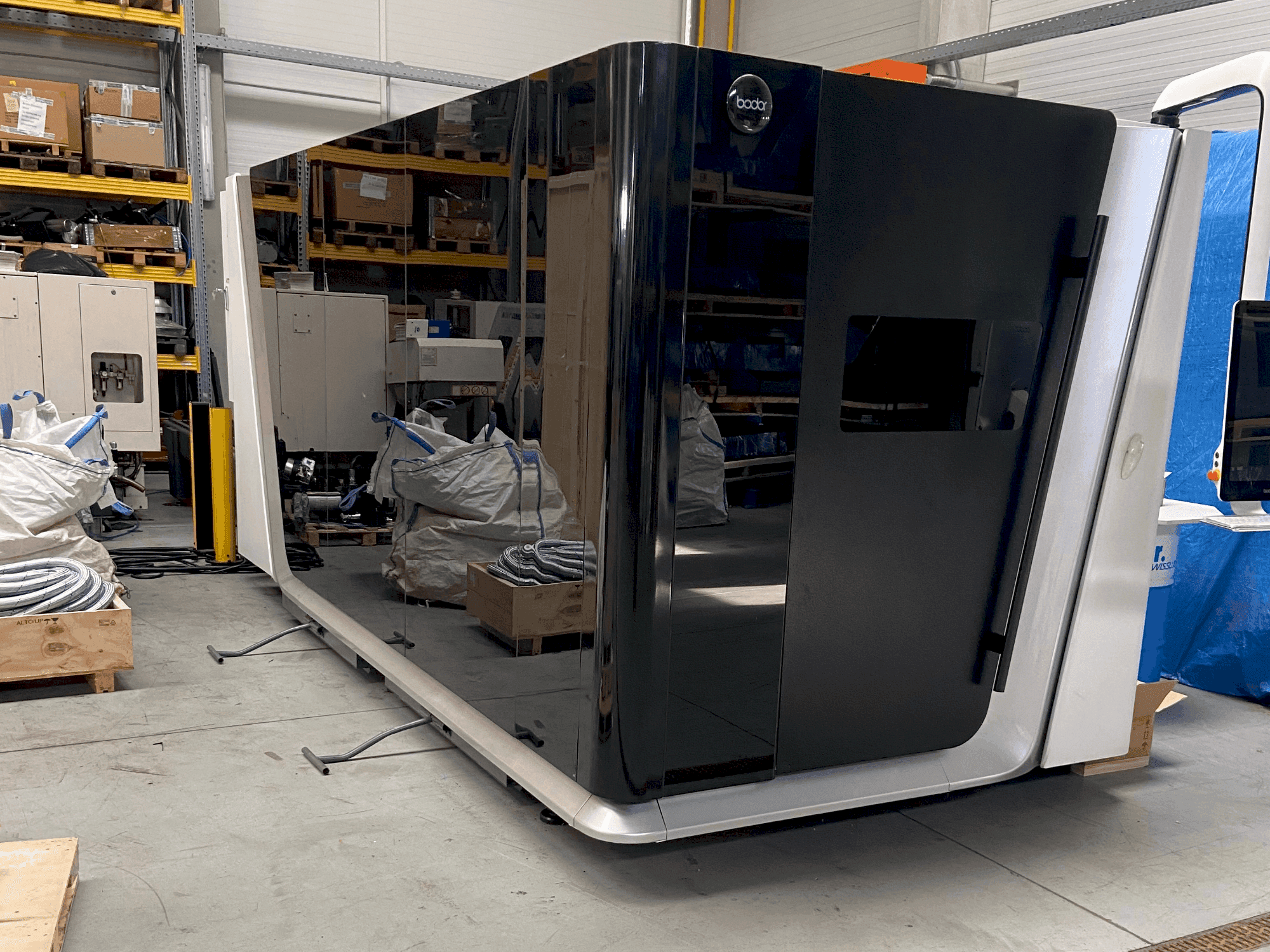

This Bodor C3 Fiber laser cutting machine was manufactured in 2022 in China. It is equipped with a 6 kW fiber laser with Maxphotonics laser source and a Bodor laser head. In addition, it operates with interchangeable tables, X/Y-axis positioning accuracy of 0.05mm/m, a max. acceleration of 1.5 G and a max. linkage speed of 110m/min. The machine is used as demo machine, it is like new, still under power and can be inspected anytime.

Overview

brand: Bodor
year: 2022
MODEL: C3
production hours: 50
application type: Cutting
Location: Czech Republic
machine type: Fiber Laser Cutting Machine
availability: Sold
control unit brand: BODOR

Technical Information - Bodor C3

General Data

Measurements width: 9100 mm
Measurements depth: 2225 mm
Measurements height: 2055 mm
Machine weight: 4800 kg

Control Unit

Model: BodorThinker 3.0
Brand: BODOR

Main drive

Laserpower: 6 KW

Movement

Z-AXIS Movement: 300 mm

Workpiece

Workpiece weight: 1450 kg

Media

Power consumption: 59.8 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X/y-axis positioning accuracy 0. 05mm/m
- - Bodor laser head
- - Max. Accelaration 1. 5 g
- - Laser source maxphotonic
- - Interchangeable tables
- - Max. Linkage speed 110m/min
Qualitative Machine Benefits:
- - Demo machine, like new

Extra information

- Machine is under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
