BODINI - ELEDRIVE 165ES-INJ-BOD-2006-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- BODINI ELEDRIVE 165 Injection Moulding Machine

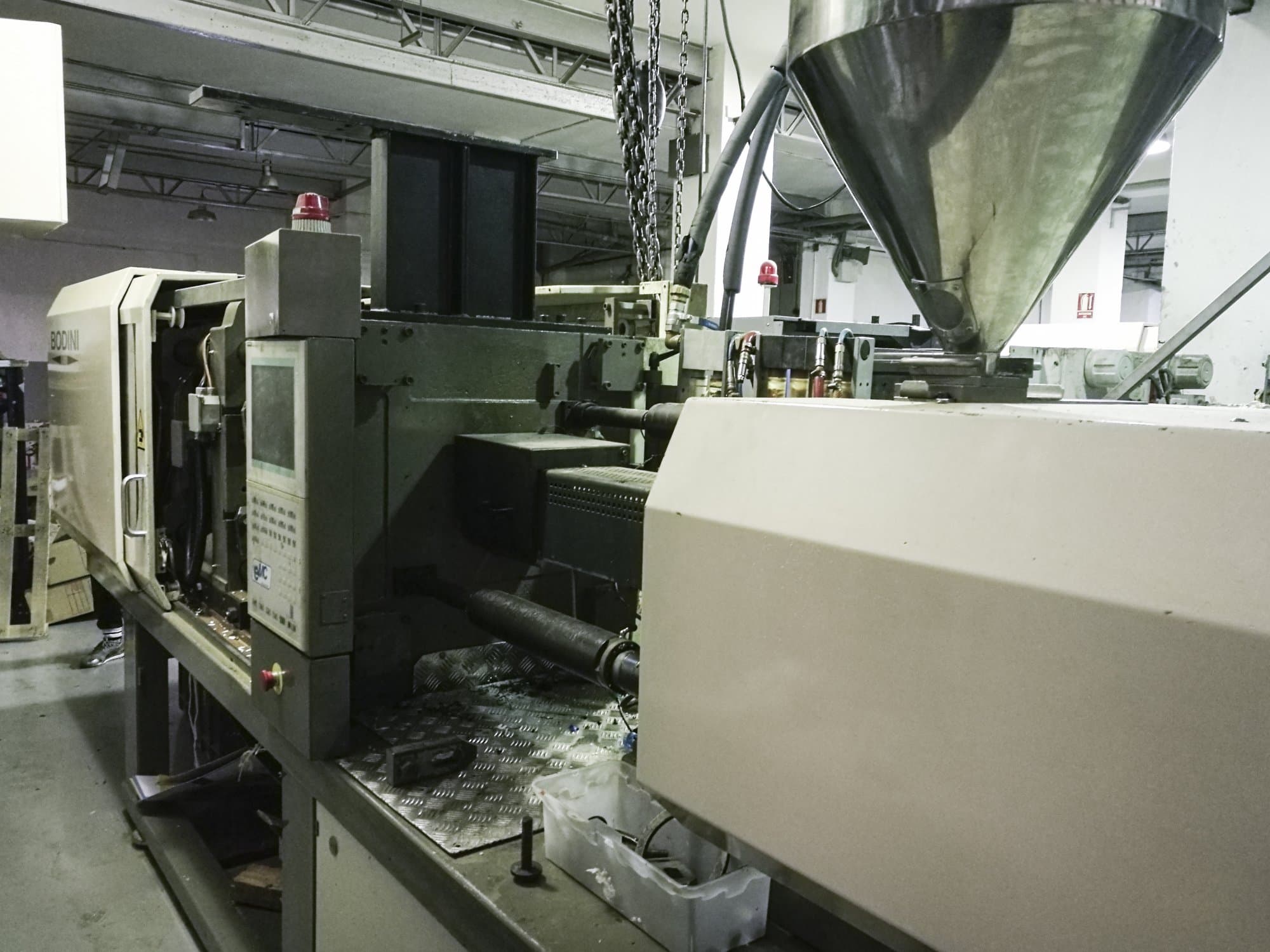

This BODINI ELEDRIVE 165 Injection Moulding Machine was manufactured in Italy in 2006, and has a record of about 10000 production hours. With a clamping force of 1650 kN, the machine has handled mainly polypropylene in the past and stands in excellent conditions due to regular maintenance.
Overview
- brand: BODINI
- year: 2006
- MODEL: ELEDRIVE 165
- production hours: 10000
- application type: Injection Moulding
- Location: Spain
- machine type: Electrical Injection Moulding Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - BODINI ELEDRIVE 165
General Data
- Measurements width: 5230 mm
- Measurements depth: 1200 mm
- Measurements height: 2010 mm
Control Unit
- Model: SIMATIC MULTI PANEL TOUCH
- Brand: SIEMENS
Injection Unit
- Screw diameter: 45 mm
- Stroke volume: 342 cm³
- Injection pressure: 1700 bar
- Plasticizing rate max.: 32 g/s PS
- Screw speed: 400 1/min
- Heating capacity: 10,5 kW
Clamping unit
- Clamping force: 1650 kN
- Opening stroke: 470 mm
- Distance between bars: 510 x 510 mm
- Ejector stroke: 165 mm
- Ejector force for / back: 30 kN
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
