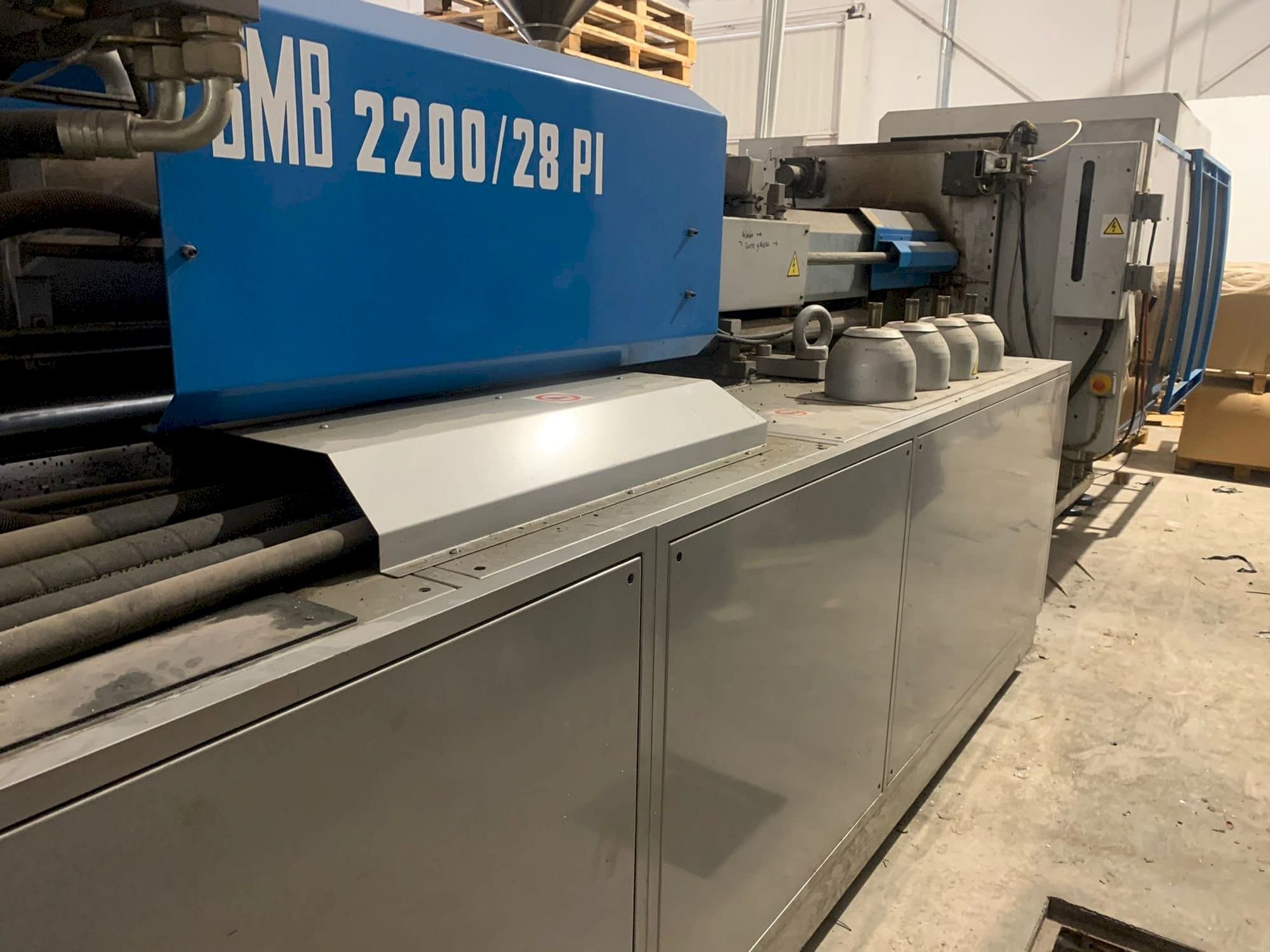

This BMB KW28PI-2200 Injection Moulding Machine is equipped with a SIEMENS SIJECT OP37 control unit. This machine has an injection pressure of 2000 bar and a clamping force of 2800 kN.

Overview

brand: BMB
year: 2003
MODEL: KW28PI-2200
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - BMB KW28PI-2200

General Data

Measurements width: 7965 MM
Measurements depth: 1920 MM
Measurements height: 2350 MM
Machine weight: 14500 kg

Control Unit

Model: SIJECT OP37
Brand: SIEMENS

Injection Unit

Screw diameter: 65 mm
Stroke volume: 1125 CM³
Injection pressure: 2000 bar
Screw speed: 250 1/min

Clamping unit

Clamping force: 2800 kN
Opening stroke: 600 mm
Distance between bars: 630 x 560 mm
Mould height min: 200 mm
Mould height max: 650 mm
Size of mold platens: 1250 mm
Ejector stroke: 220 mm
Ejector force for / back: 67 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
