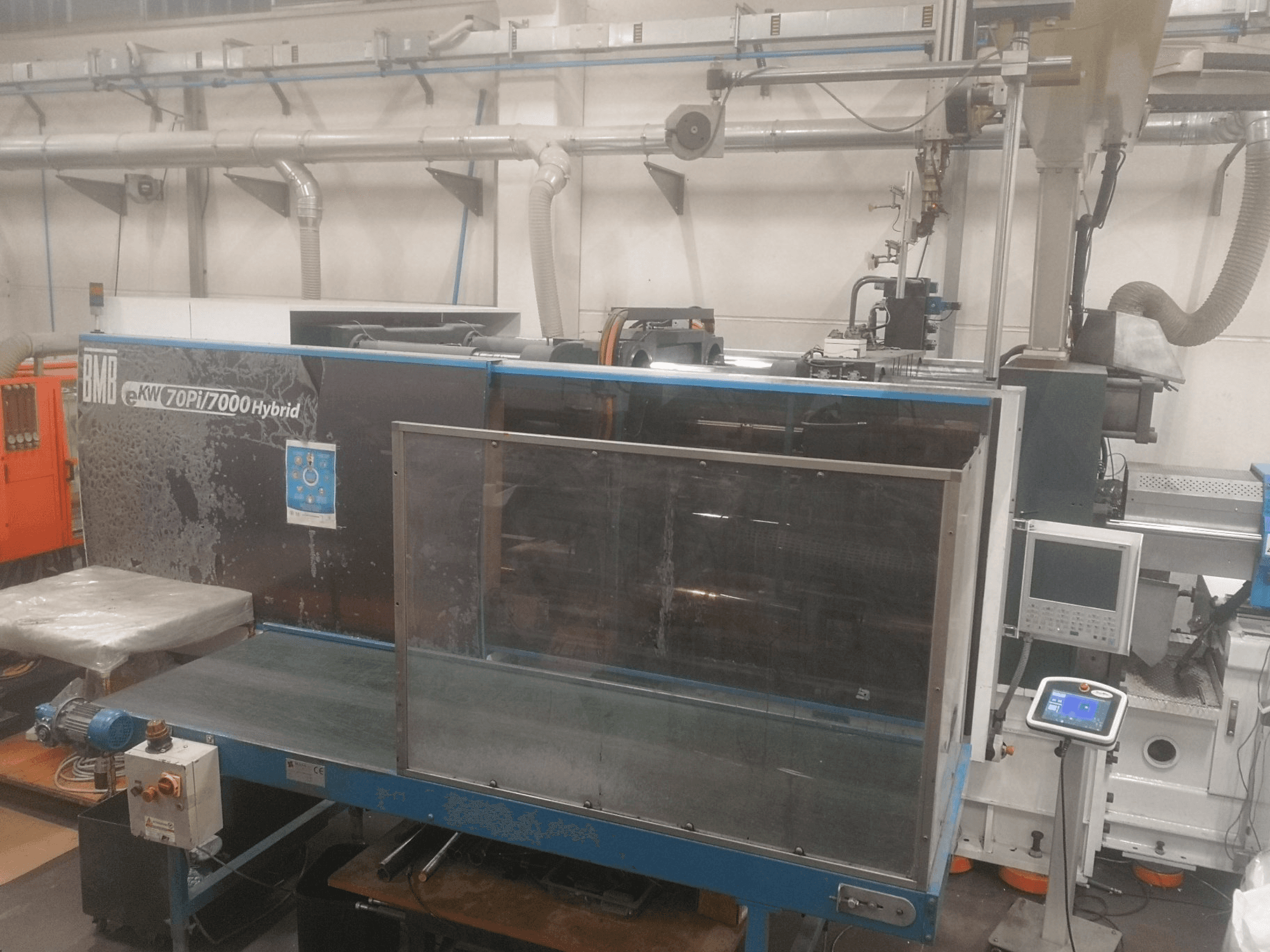

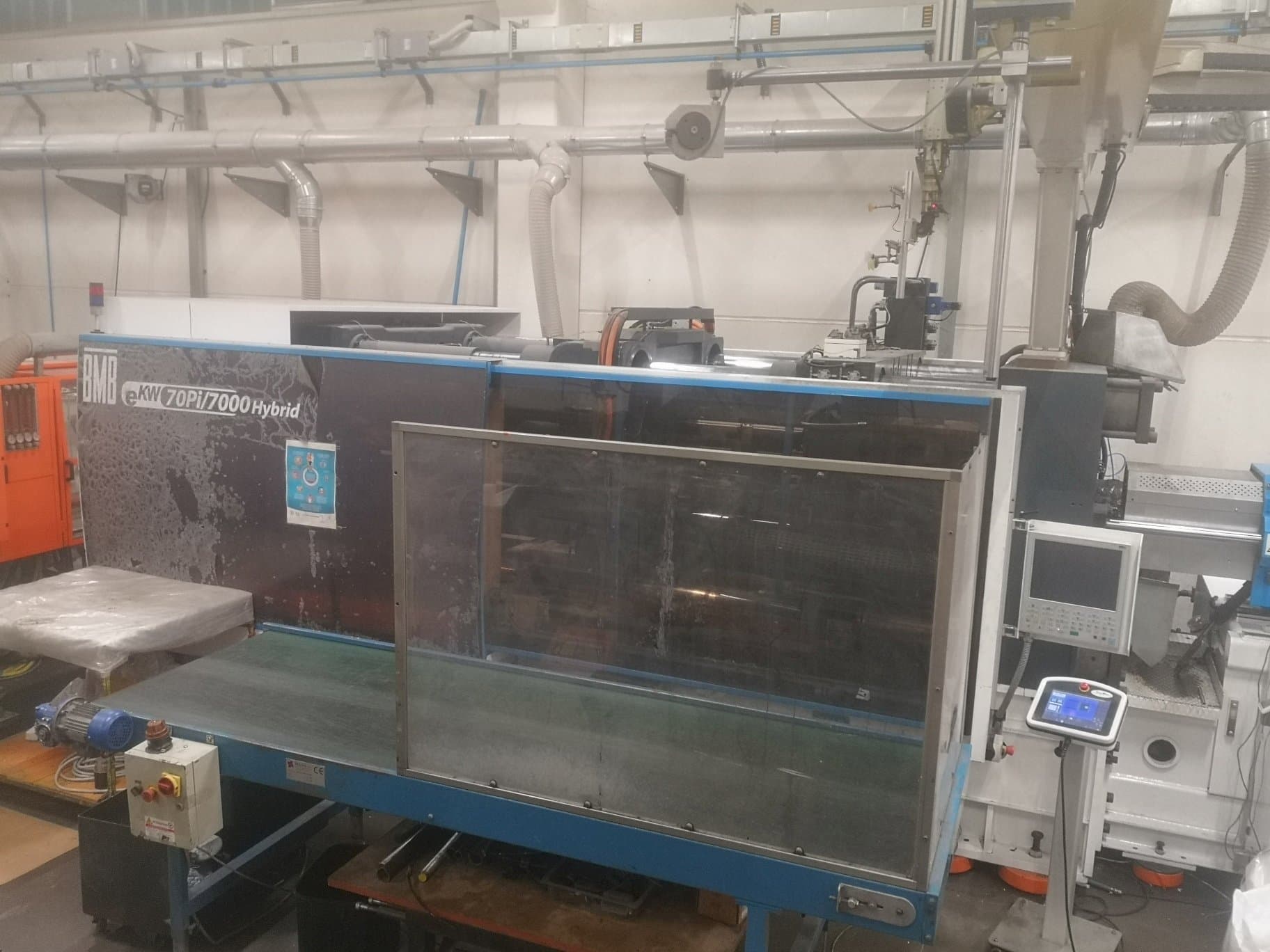

BMB Ekw 70pi Hybrid Injection moulding machine

Show in original language

This BMB Ekw 70pi Hybrid Injection moulding machine was manufactured in the year 2015. It is equipped with a HEIDENHAIN control unit. The machine has a clamping force of 7000 kN and a screw diameter of 100 mm.

Overview

brand: BMB
year: 2015
MODEL: Ekw 70pi Hybrid
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - BMB Ekw 70pi Hybrid

General Data

Machine weight: 40500 kg

Control Unit

Brand: HEIDENHAIN

Injection Unit

Screw diameter: 100 mm
Stroke volume: 3966 CM³

Clamping unit

Clamping force: 7000 KN
Opening stroke: 1000 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Column passage: 920 x 920
- - Plate dimensions: 1370 x 1370
- - Column diameter: 160 mm
- - Heat zones: 5 + 1
- - Weight injection unit: 13000 kg
- - Closing unit weight: 27500 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
