BLM - ADIGE LaserTube LT FiberPL-LAS-BLM-2015-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

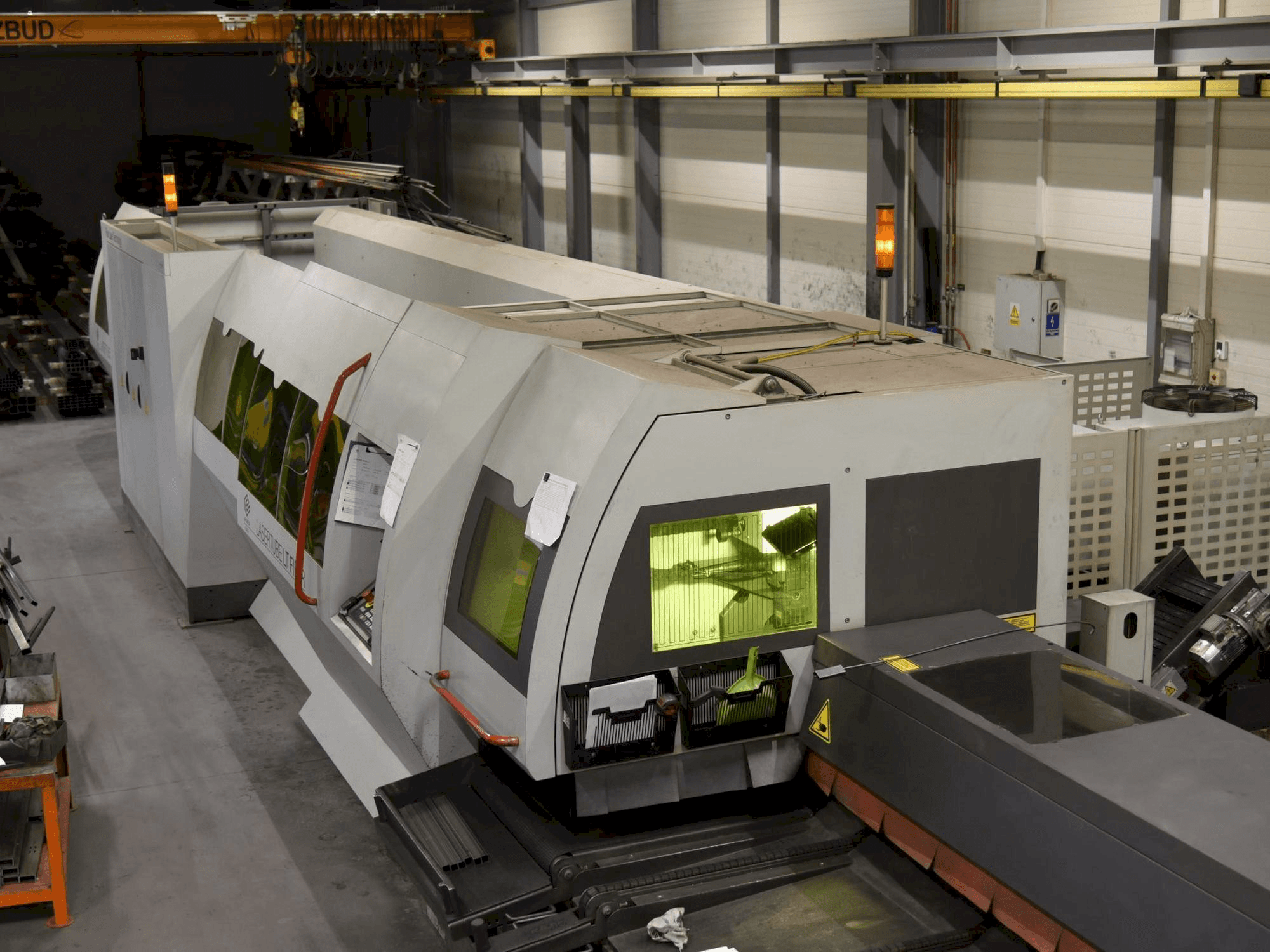

BLM ADIGE LaserTube LT Fiber Laser cutting machine

Show in original language

This BLM ADIGE LaserTube LT Fiber Laser cutting machine was manufactured in the year 2015 in Italy and has 35000 production hours, of which 27500 are laser hours. It is equipped with a Siemens control unit. The machine has a laser power of 2 kW, is in very good condition and well maintained.

Overview

brand: BLM
year: 2015
MODEL: ADIGE LaserTube LT Fiber
production hours: 35000
application type: Cutting
Location: Poland
machine type: Tube Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - BLM ADIGE LaserTube LT Fiber

General Data

Measurements width: 15000 mm
Measurements depth: 4000 mm
Measurements height: 2100 mm
Machine weight: 9000 kg

Control Unit

Brand: SIEMENS

Main drive

Laserpower: 2 kW
Laser type: Fiber

Media

Main electronic connection: 400V / 50Hz
Power consumption: 14kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max weight of tube: 150 kg
- - Max dia. Of tube: 140 mm
- - Min length of tube with automatic measurements: 3200 mm
- - Min length of tube with supports: 160 mm
- - Max tube length: 6500 mm
- - Min dimensions of square tube: 12x12 mm, max dimensions of square tube: 140 x 140 mm
- - Max load of loading system: 4000 kg
- - Materials for tubes: mild steel, inox, brass, cooper
- - Options included: 3xsupports for tubes: 2pcs – automatic, 1pc manual, software: art tube
Qualitative Machine Benefits:
- - The machine is in very good working condition, with full-service documentation, ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
