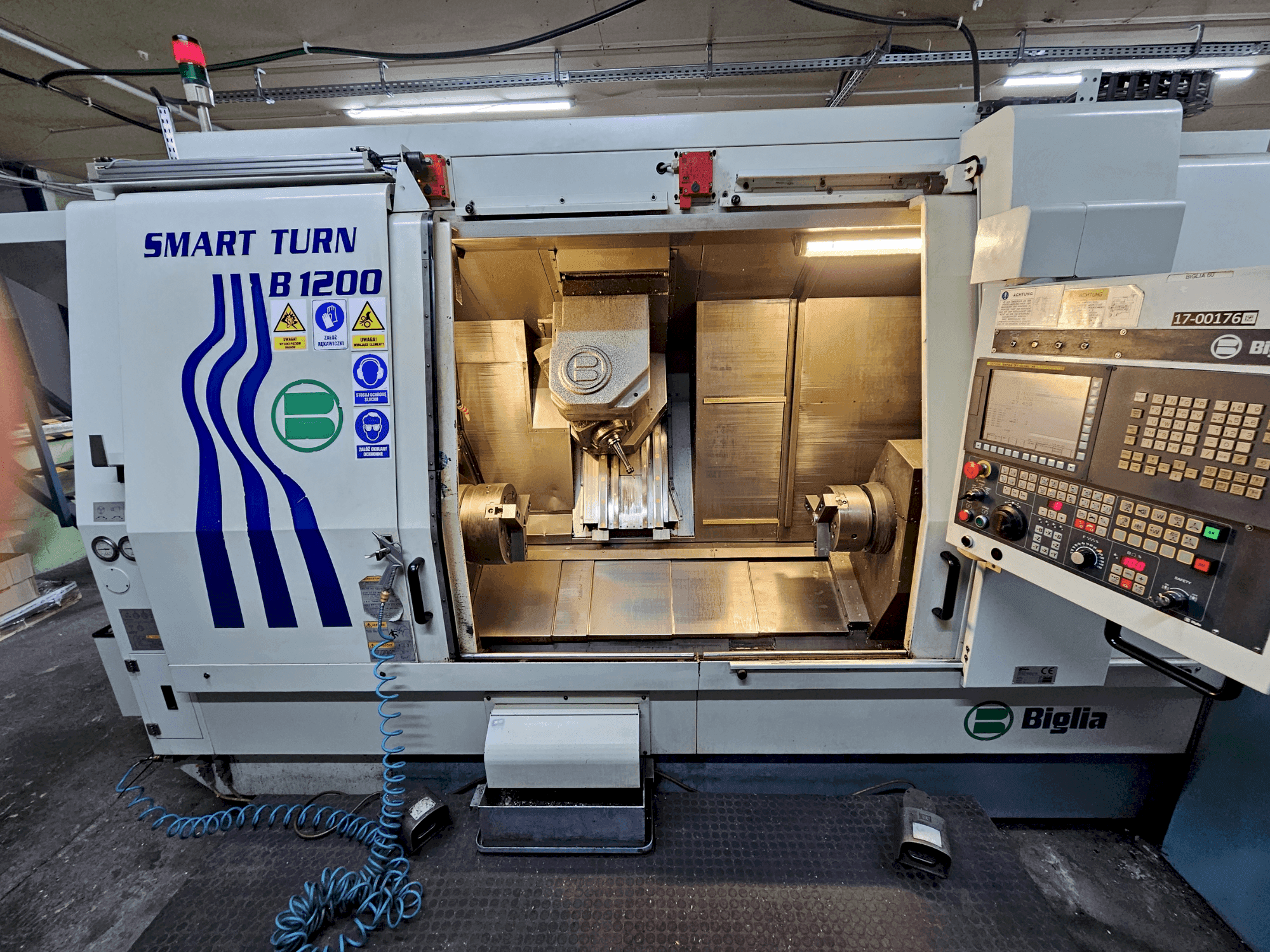

Front view of Biglia Smart Turn 1200 machine
Front view of Biglia Smart Turn 1200 machine

Biglia - Smart Turn 1200PL-TUR-BIG-2008-00001

Rs. 7,410,150
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Biglia Smart Turn 1200 was manufactured in 2008. A robust horizontal turning machine with a bar capacity of 92 mm and a maximum machining diameter of 490 mm. It features a spindle bore of 111 mm and a chuck diameter of 315 mm, powered by a 30 kW motor. Ideal for handling substantial workpieces, the machine we have for sale weighs 7000 kg. For more information about this horizontal turning machine, please reach out to us.

Overview

  • brand: Biglia
  • year: 2008
  • MODEL: Smart Turn 1200
  • application type: Turning
  • Location: Poland
  • machine type: Horizontal Turning Machine
  • availability: Immediately

Technical Information - Biglia Smart Turn 1200

General Data

  • Measurements width: 2000 MM
  • Measurements depth: 5100 MM
  • Measurements height: 2100 MM
  • Machine weight: 7000 KG

Main drive

  • Spindle speed range: 2800 1/MIN
  • Spindle motor power: 30 kW
  • Spindle bore: 111 mm

Movement

  • X-AXIS Movement: 255 mm
  • X-AXIS Rapid traverse: 20 m/min
  • Z-AXIS Movement: 1315 mm
  • Z-AXIS Rapid traverse: 24 m/min

Workpiece

  • Workpiece drm: 490 mm
  • Workpiece x: 1315 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Bar capacity: 92 mm
      • - Max. Swing over diameter: 700 mm
      • - Chuck diameter: 315 mm
      • - Power on: 75863h, cutting time: 23136h

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
