- Biglia B436 Y2 Lathe

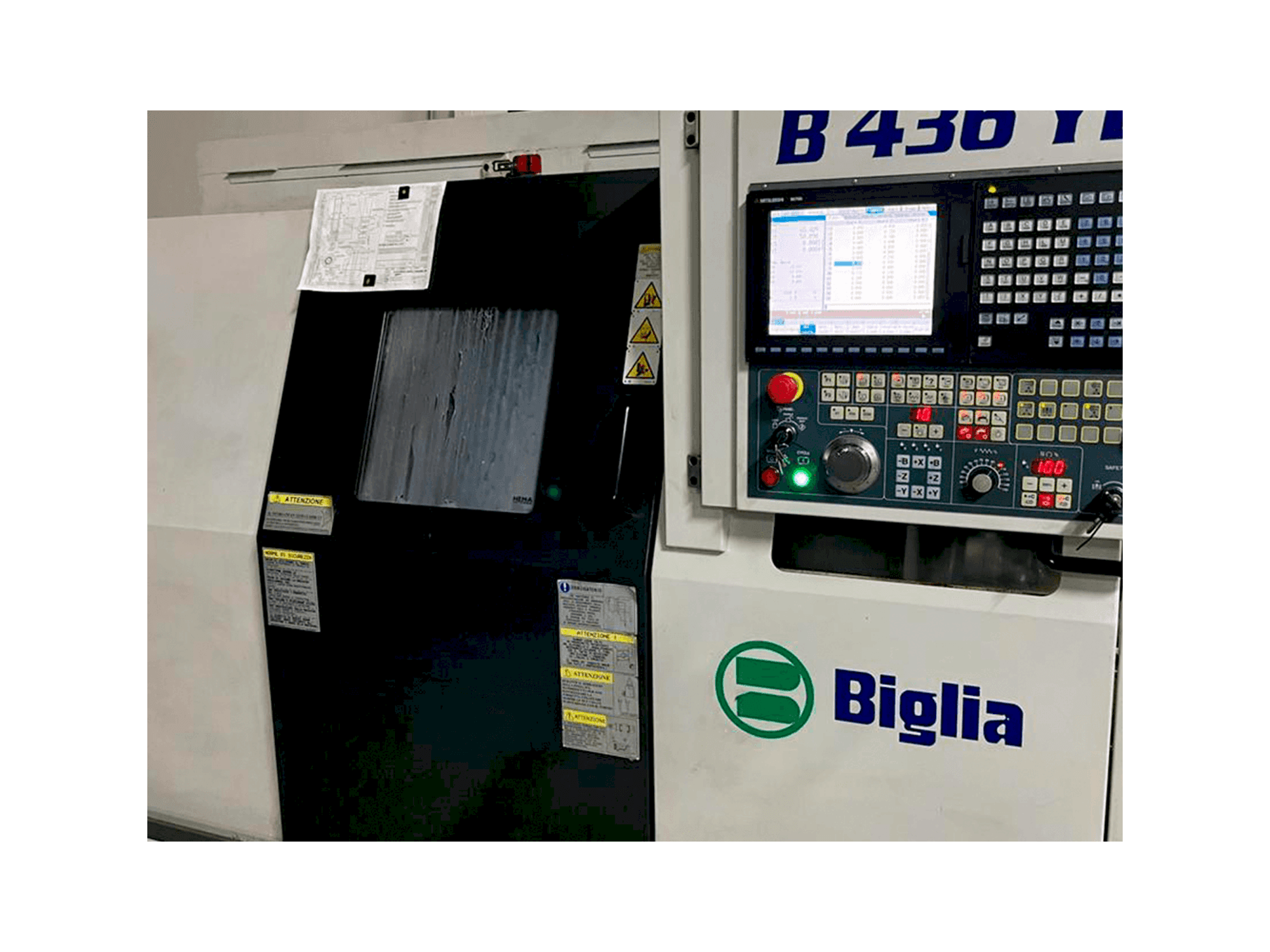

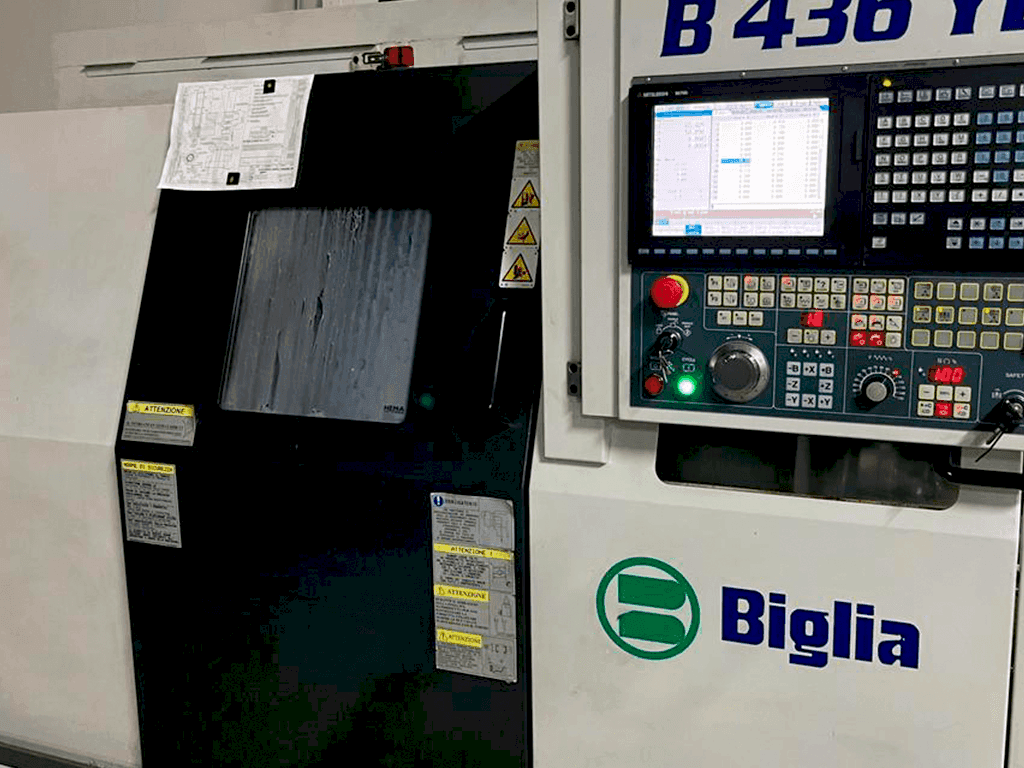

This Biglia B436 Y2 Lathe was manufactured in the year 2015. It is equipped with a Mitsubishi M700 control unit and has 10 axis. The machine has a spindle speed of 7000 rpm.
Overview
- brand: Biglia
- year: 2015
- MODEL: B436 Y2
- application type: Turning
- Location: Italy
- machine type: Lathe
- availability: Immediateky
- control unit brand: Mitsubishi
Technical Information - Biglia B436 Y2
General Data
- Measurements width: 3682 mm
- Measurements depth: 1430 mm
- Measurements height: 1900 mm
- Machine weight: 5000 kg
Control Unit
- Brand: Mitsubishi
- Model: M700
Main drive
- Number of spindles: 2
- Spindle speed range: 7000 1/MIN
- Spindle motor power: 11 kW
- Number of axis: 10
Movement
- C-AXIS Movement: 0.001 º MM
Turret
- Number of turrets: 2
- Number of tool slots: 12
Media
- Main electronic connection: 400 V
Additional Information
- Technical Machine Benefits:
- - Max. Bar diameter : 36 mm
- - Max. Chuck diameter : 100 mm
- - Spindle nose : a2-5
- - Counter spindle: max. Bar diameter : 36 mm, max. Turning diameter : 100 mm
- - Turret 1 number of positions : 12 number of motorized positions : 12 x/z stroke : 85/300 [mm] - y stroke : -25/+25 [mm] live tools speed : 6000 [rpm] live tools power : 4. 6 [kw]
- - Turret 2 number of positions : 12 - number of motorized positions : 12 x/z stroke : 35/300 [mm] y stroke : -25/+25 [mm] live tools speed : 6000 [rpm] live tools power : 4. 6 [kw]
- Qualitative Machine Benefits:
- - Barfeeder top included
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
