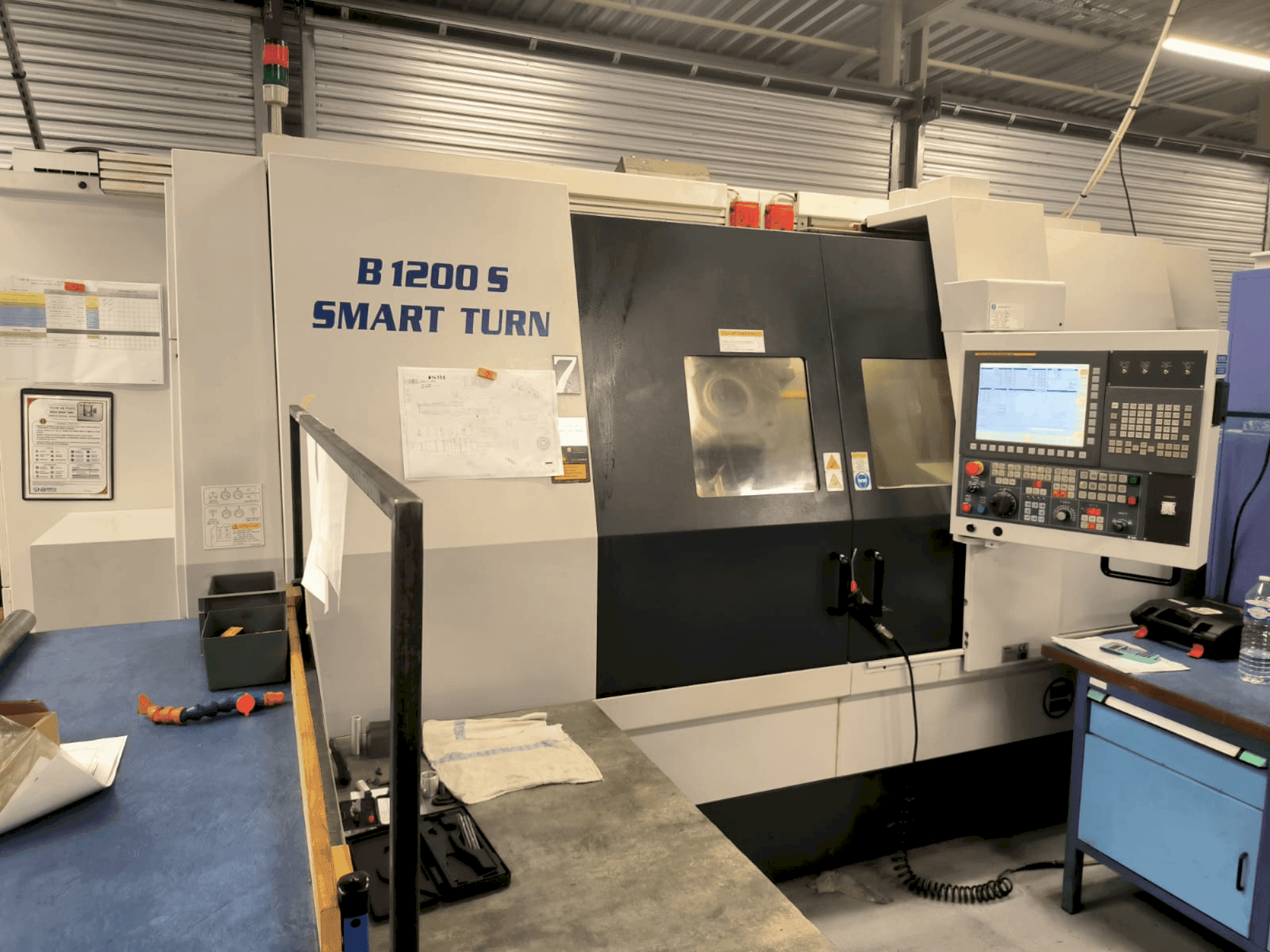

This 5-axis Biglia B1200S SMART TURN lathe was manufactured in 2014. It features a Fanuc 31i control unit, a maximum turning diameter of 750 mm, and a turning length of 1260 mm. Equipped with a tool magazine capacity of 40 posts and a milling head maximum speed of 8000 rpm. Ideal for complex machining tasks, the Biglia B1200S SMART TURN we have for sale represents a significant opportunity. For more information about this lathe, please reach out to us.
Overview
- brand: Biglia
- year: 2014
- MODEL: B1200S SMART TURN
- production hours: 7300
- application type: Turning
- Location: France
- machine type: Turn-Mill Centre
- availability: Immediately
- control unit brand: FANUC
Technical Information - Biglia B1200S SMART TURN
General Data
- Measurements width: 2300 mm
- Measurements depth: 5500 mm
- Measurements height: 2400 mm
- Machine weight: 8500 kg
Control Unit
- Model: 31i
- Brand: FANUC
Main drive
- Number of spindles: 3
- Spindle speed range: 3000 rpm / 4000 rpm 1/MIN
- Spindle motor power: 30 kW / 24 kW
- Spindle bore: 94 mm / 65 mm
- Tool taper: HSK - 63
- Number of axis: 5
Movement
- X-AXIS Movement: 510 mm
- X-AXIS Rapid traverse: 20000 mm/min
- Y-AXIS Movement: +120 / -90 mm
- Y-AXIS Rapid traverse: 24000 mm/min
- Z-AXIS Movement: 1300 mm
- Z-AXIS Rapid traverse: 12000 mm/min
- B-AXIS Movement: +/- 105° MM
- C-AXIS Movement: Increment 0.001°. MM
Additional equipment
- - Lubrication tank with pump.
- - Main spindle // counter spindle // milling spindle
Additional Information
- Technical Machine Benefits:
- - 5-axis capability, high spindle and milling speeds, robust power and torque.
- - Supply voltage: 400 v.
- - Spindle nose din 55026 - asa 8"
- - Counter spindle din 55026 - asa 6"
- Qualitative Machine Benefits:
- - High-capacity tool magazine, advanced control system, enhanced productivity and precision.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
