➤ Used Benzinger GOFuture-B1 | Lathe For Sale

Show in original language

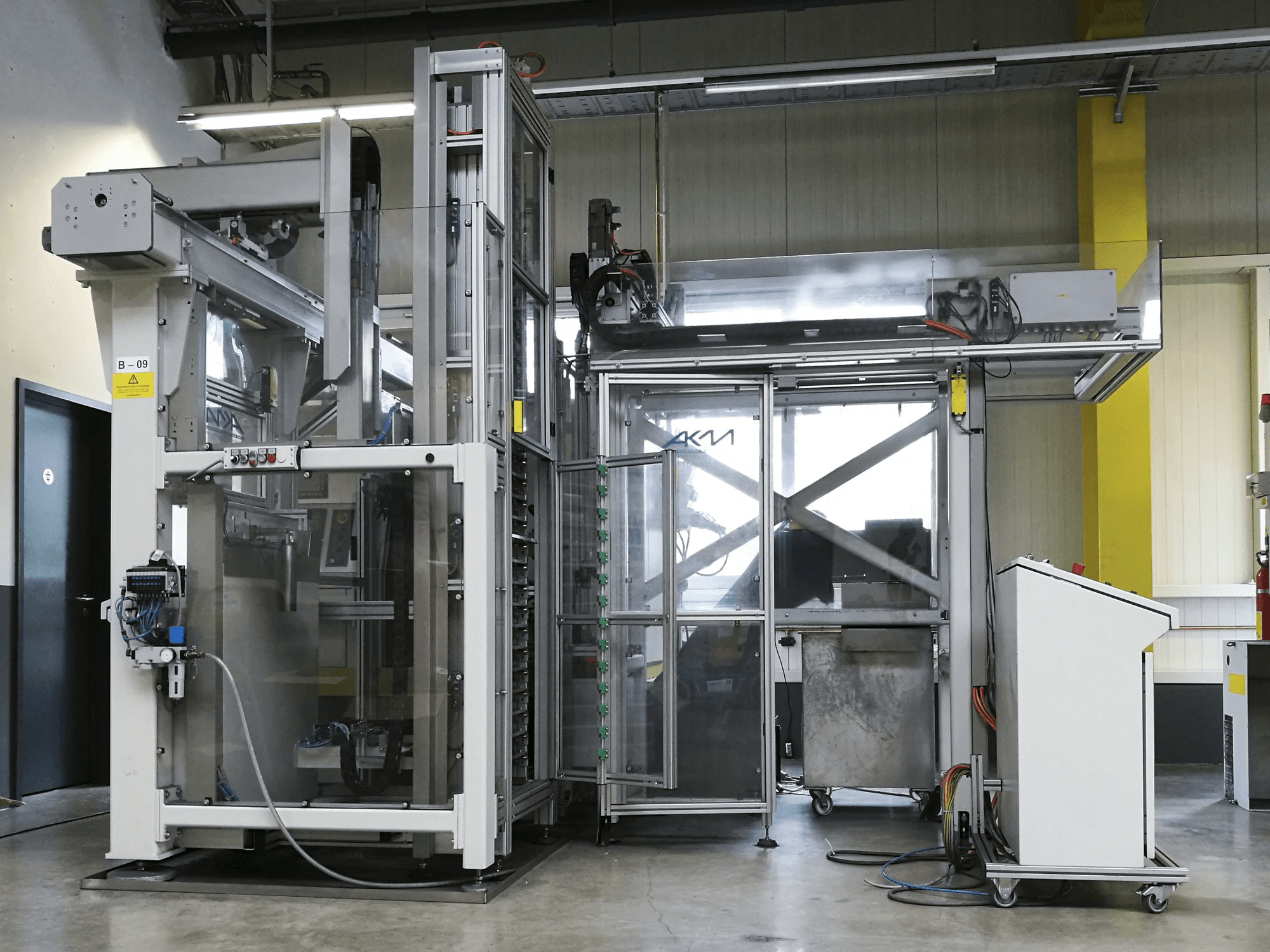

This Benzinger GOFuture-B1 Lathe was manufactured in 2011 and is operated through a FANUC 31i-MODEL A control unit. Standing in an excellent condition, the equipment is especially fit for high precision tasks. Its additional detachable 3-Axis handling system (machine dimensions when mounted 6x4m) provides an extended range of operating functionalities. Other pieces of additional equipment included are a 28x pallet carrier for handling system, firefighting system, lubrication filter system, and a MAS tool holding system.

Overview

brand: Benzinger
year: 2011
MODEL: GOFuture-B1
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Benzinger GOFuture-B1

General Data

Measurements width: 1988 mm
Measurements depth: 1633 mm
Measurements height: 2017 mm
Machine weight: 3500 kg

Control Unit

Model: 31i-MODEL A
Interface: USB, Ethernet, Serial
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/min
Spindle motor power: 12 kW
Spindle bore: 26 mm

Movement

X-AXIS Movement: 370 mm
X-AXIS Feed Force: 3500 N
X-AXIS Rapid traverse: 45 m/min
Y-AXIS Movement: 250 mm
Y-AXIS Feed Force: 3500 N
Y-AXIS Rapid traverse: 45 m/min

Turret

Number of turrets: 1
Number of tool slots: 8

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 15 kVA
Air pressure: 6 bar
Lubrication tank: 200 L
Chip conveyor: Yes

Additional equipment

- 3-Axis Handling system
- 28x Pallet carrier for Handling system
- Firefighting system
- Lubrication filter system
- MAS tool holding system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
