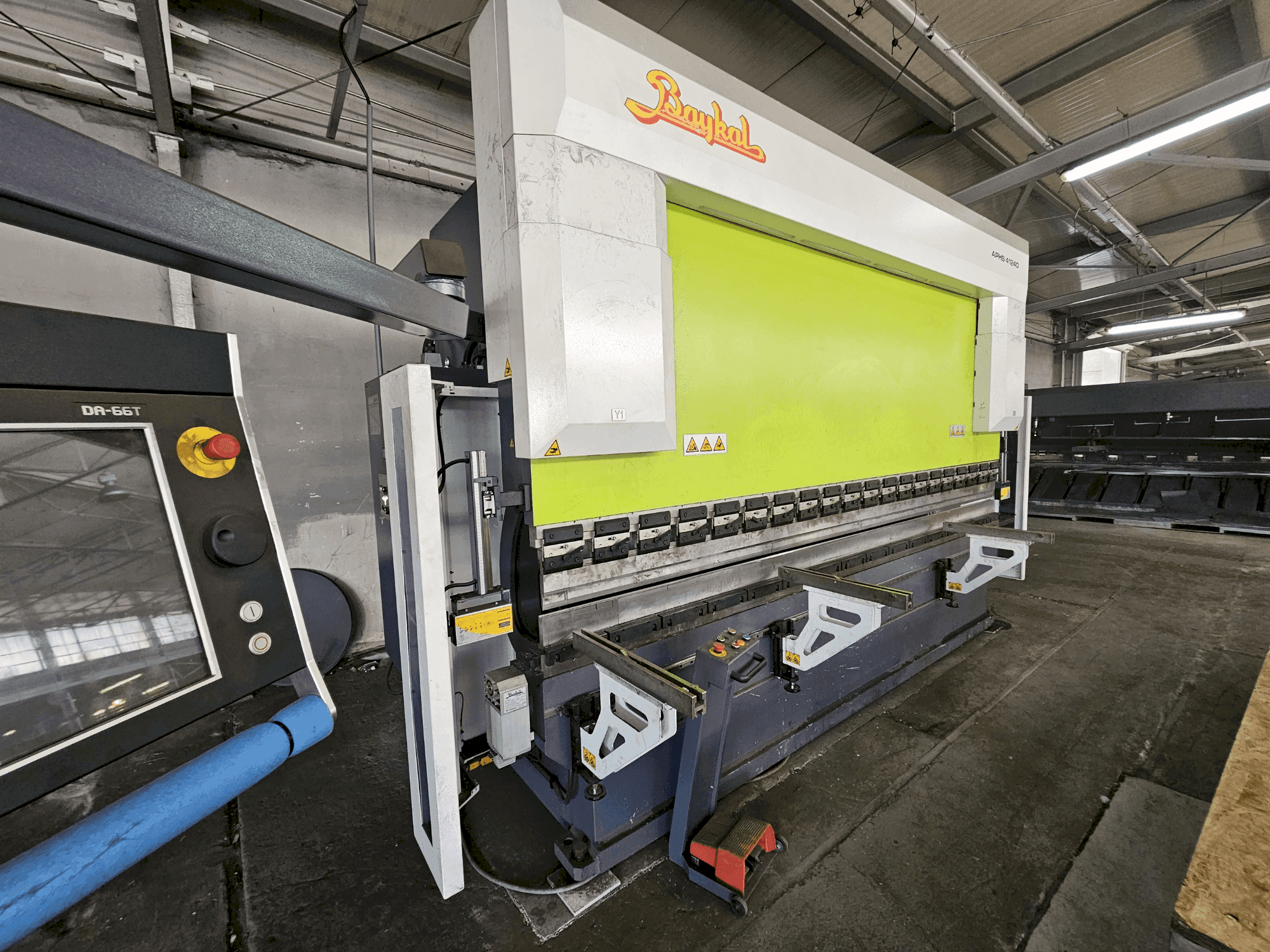

This 4-axis Baykal APHS 41240 was manufactured in 2019. A robust Hydraulic Press Brake with a bending length of 4100 mm and a capacity of 240 tons. Features DELEM DA-66T control for precision operations and includes 2 sets of tooling. Ideal for heavy-duty tasks, the Baykal APHS 41240 machine we have for sale is like new with only 482 powerON hours. Contact us for further details regarding this bending machine.
Overview
- brand: Baykal
- year: 2019
- MODEL: APHS 41240
- production hours: 482
- application type: Bending & Punching
- Location: Poland
- machine type: Press Brake
- availability: Immediately
- control unit brand: DELEM
Technical Information - Baykal APHS 41240
General Data
- Measurements width: 1875 mm
- Measurements depth: 4875 mm
- Measurements height: 3020 mm
- Machine weight: 16000 kg
Control Unit
- Brand: DELEM
- Model: DA-66T
Main drive
- Number of axis: 4
Tools
- Max weight: 150 kg
Additional Information
- Technical Machine Benefits:
- - Maximum stroke: 420 mm
- - Max press force: 240 tons
- - Max bending length: 4100 mm
- - Nominal power: 26 kw
- - High capacity with 240 tons press force, 4-axis machine with compensation cnc, fast maximum stopping time of 80 ms
- - Main voltage: 400 v / 50 hz / 3 phase
- - Bottom tool weight: 200 kg
- - Maximum stopping time: 80 ms
- - Cnc options included: 2x sets of tooling
- Qualitative Machine Benefits:
- - Like-new condition with low working hours (482 h)
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
