Battenfeld TM 2100/1000 Injection Moulding Machine

Show in original language

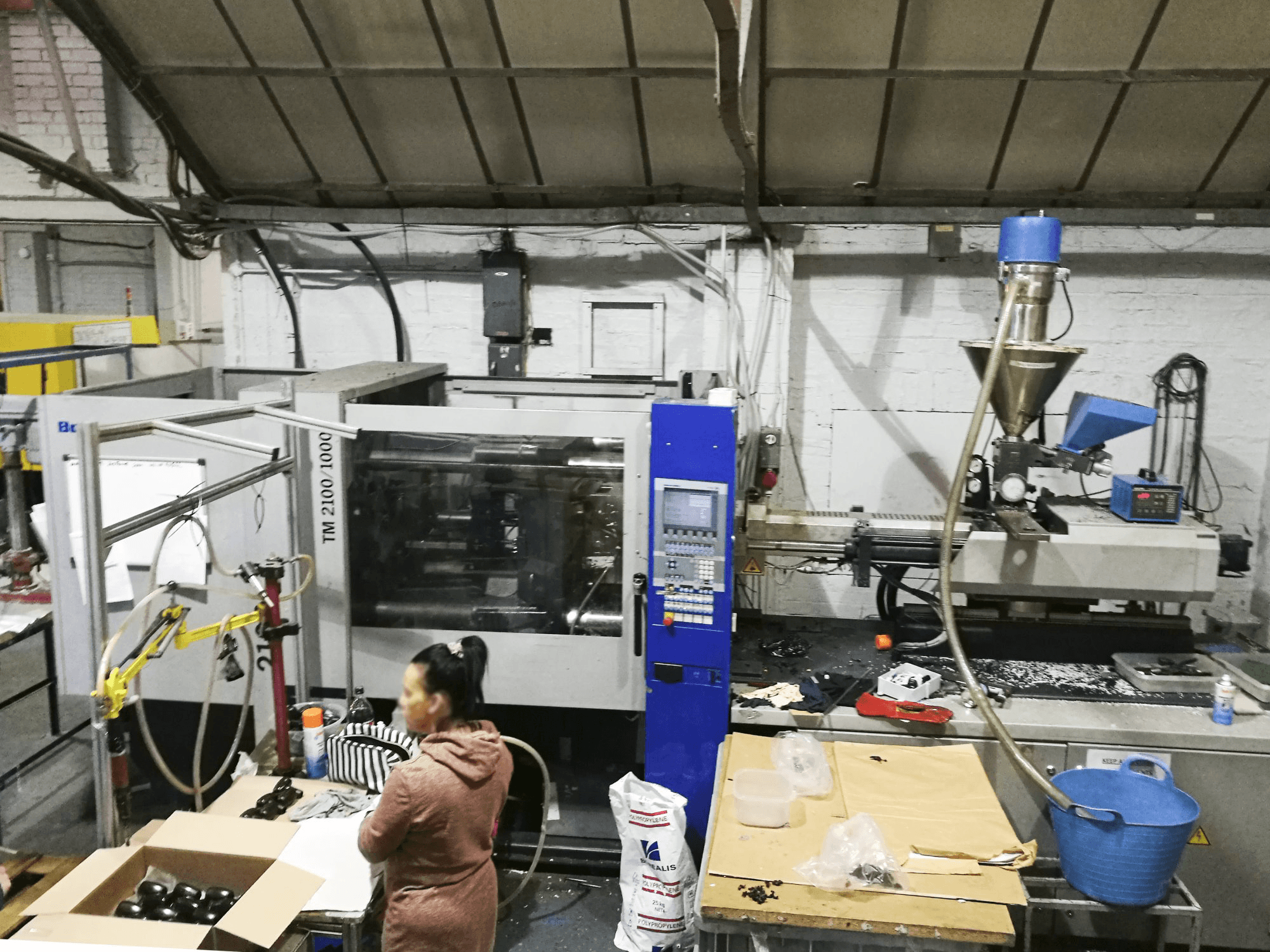

This Battenfeld TM 2100/1000 Injection Moulding Machine from 2004 has a production record of 23085 hours. Operated through a Battenfeld UNILOG B4 Control Unit, the equipment stands in a perfect condition. Additionally, the model is particularly attractive for the size of its mold platens, of about 840 x 840 millimeters.

Overview

brand: Battenfeld
year: 2004
MODEL: TM 2100/1000
production hours: 23085
application type: Injection Moulding
Location: United Kingdom
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: BATTENFELD

Technical Information - Battenfeld TM 2100/1000

General Data

Measurements width: 5580 mm
Measurements depth: 1640 mm
Measurements height: 2250 mm
Machine weight: 8800 kg
Type of drive: Fully hydraulic
Closure: Toggle Lever

Control Unit

Model: UNILOG B4
Release: 06/2004
Brand: BATTENFELD

Injection Unit

Screw diameter: 50 mm
Shot weight: 440 g/PS
Stroke volume: 491 cm³
Injection pressure: 2016 bar
Plasticizing rate max.: 39 g/s PS
Screw speed: 260 1/min
Adjustable heating zones: 5

Clamping unit

Clamping force: 2100 kN
Opening stroke: 530 mm
Max open daylight: 1050 mm
Mould height min: 190 mm
Mould height max: 540 mm
Size of mold platens: 840x840 mm
Ejector stroke: 180 mm
Ejector force for / back: 41 kN

Media

Main electronic connection: 230-400 V / 50Hz
Oil pressure: 210 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
