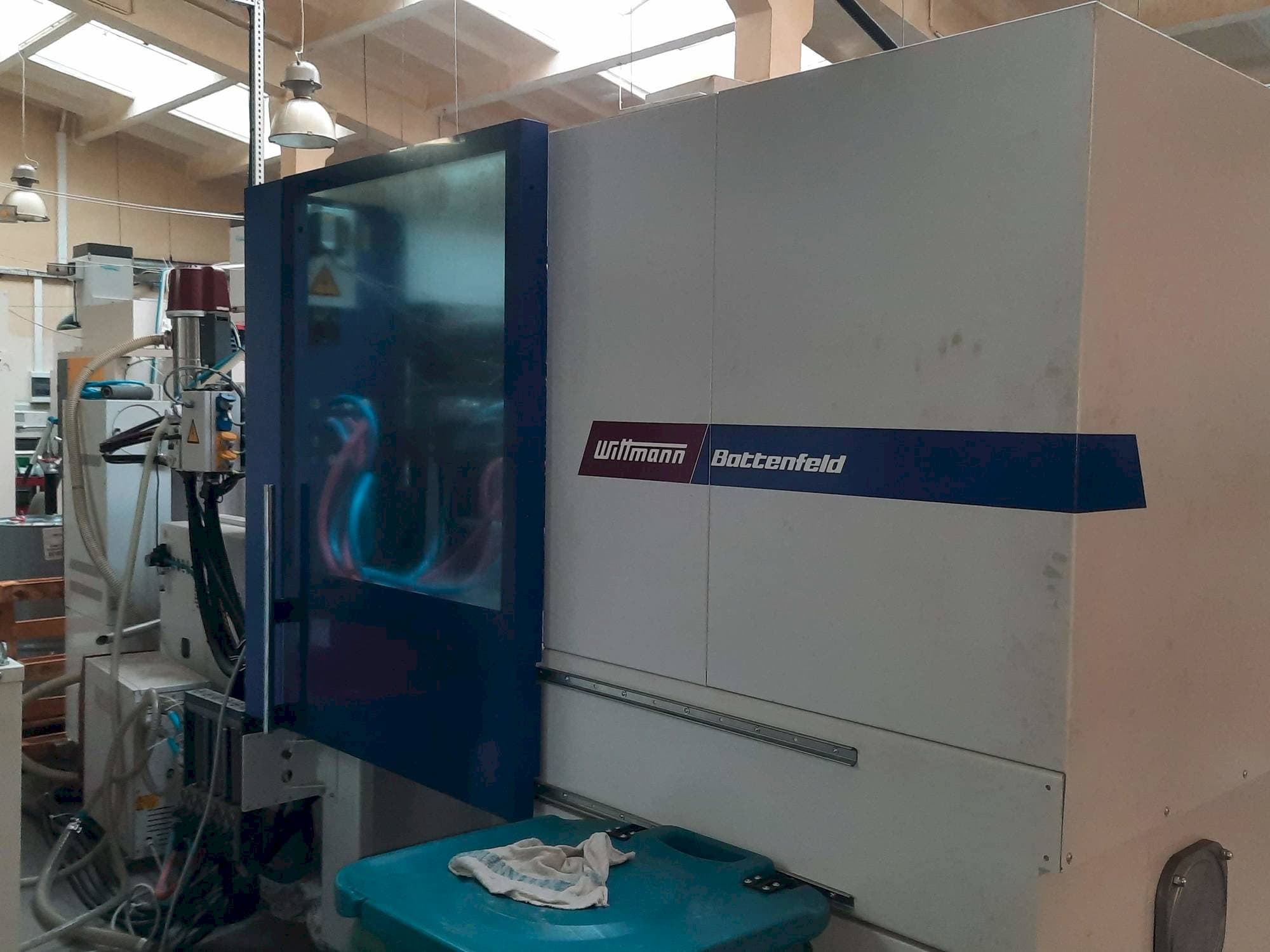

Battenfeld SmartPower 110/350 Injection moulding machine

Show in original language

This Battenfeld SmartPower 110/350 Injection moulding machine was manufactured in Germany in 2015. It shows 153 production hours, practically new. It is equipped with an UNILOG B6 control unit. The machine works with a clamping force 1100 kN and includes an air dryer DRYMAX E30. Machine in perfect condition.

Overview

brand: Battenfeld
year: 2015
MODEL: SmartPower 110/350
production hours: 153
application type: Injection Moulding
Location: Poland
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Battenfeld SmartPower 110/350

General Data

Measurements width: 4500 mm
Measurements depth: 1500 mm
Measurements height: 2100 mm
Machine weight: 4500 kg

Injection Unit

Screw diameter: 40 mm
Injection pressure: 1595 bar

Clamping unit

Clamping force: 1100 kN
Opening stroke: 550 mm
Distance between bars: 520 x 470 mm
Mould height min: 296 x 296 mm
Ejector stroke: 150 mm

Media

Main electronic connection: 400V / 50Hz

Additional equipment

- Air dryer DRYMAX E30
- Wittmann Battenfeld Smart Power 110-150 Injection Molding Machine + UNILOG B6P Control
- Wittmann Battenfeld Drymax E30-50-M-C-180 dryer
- Wittmann Battenfeld Freedmax S3-NET feeder
- Thermostat Wittmann Battenfeld TemPro Plus D TP + D-S-1: 180

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min. Mould mounting height – 250 mm
- - Opening force – 53 kn
- - Max. Platen distance – 800 mm
- - Max. Mould weight – 1100 kg
- - L/d ratio: 22
- - Injection volume: 220 cm3
- - Max weight of injection: 160. 6 g
- - Min. Mold height: 250 mm
- - Max platen distance: 800 mm
- - Opening stroke / force: 550 mm / 53 kn
Qualitative Machine Benefits:
- - Machine is like a new.
- - Not used in production
- - Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
