Battenfeld - HM 800 2P/5400DE-INJ-BAT-2005-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

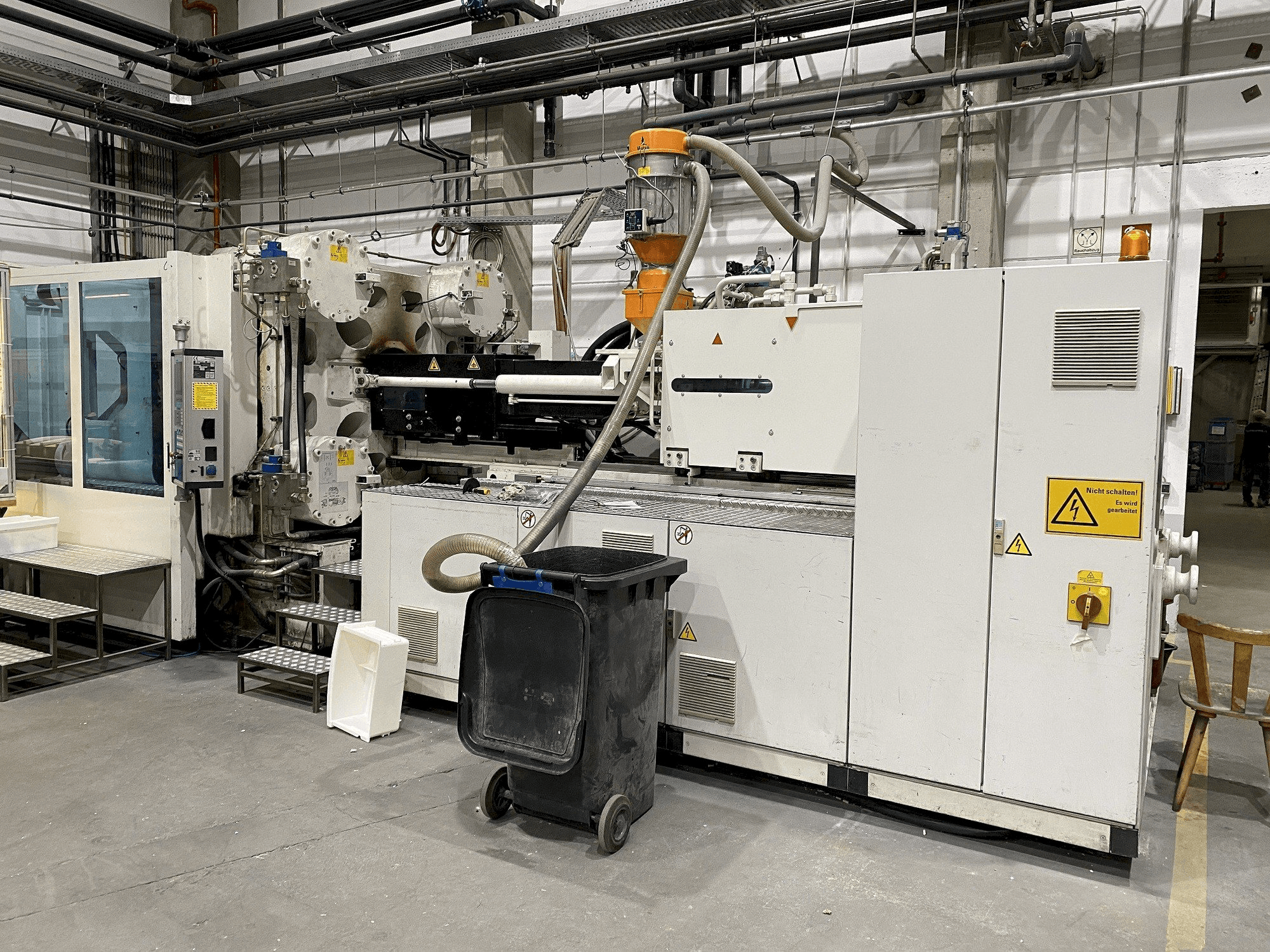

This Battenfeld HM 800 2P/5400 Injection Moulding Machine was made in 2005. This machine can work with a clamping force of 8000 kN and an opening stroke 1175 mm.

Overview

brand: Battenfeld
year: 2005
MODEL: HM 800 2P/5400
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Battenfeld HM 800 2P/5400

Injection Unit

Screw diameter: 100 mm
Stroke volume: 3338.0 CM³
Injection pressure: 1610 bar
Heating capacity: 56.8 kw

Clamping unit

Clamping force: 8000 kn
Opening stroke: 1175 mm
Distance between bars: 1120 x 1020 mm
Mould height min: 350 mm
Mould height max: 950 mm
Size of mold platens: 1620 x 1530 mm

Media

Main electronic connection: 230/400 v 50 hz
Power consumption: 90 kw

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Screw l/d ratio 22. 0
- - Max. Plastic flow (ps) per s 0. 125 kg
- - Max. Distance between clamping platens 2125 mm
- - Bypass filtration 3 kw
- - Sockets 51. 6 kw
- - Tool heating 24 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
