Battenfeld HM 160/525 E Injection moulding machine

Show in original language

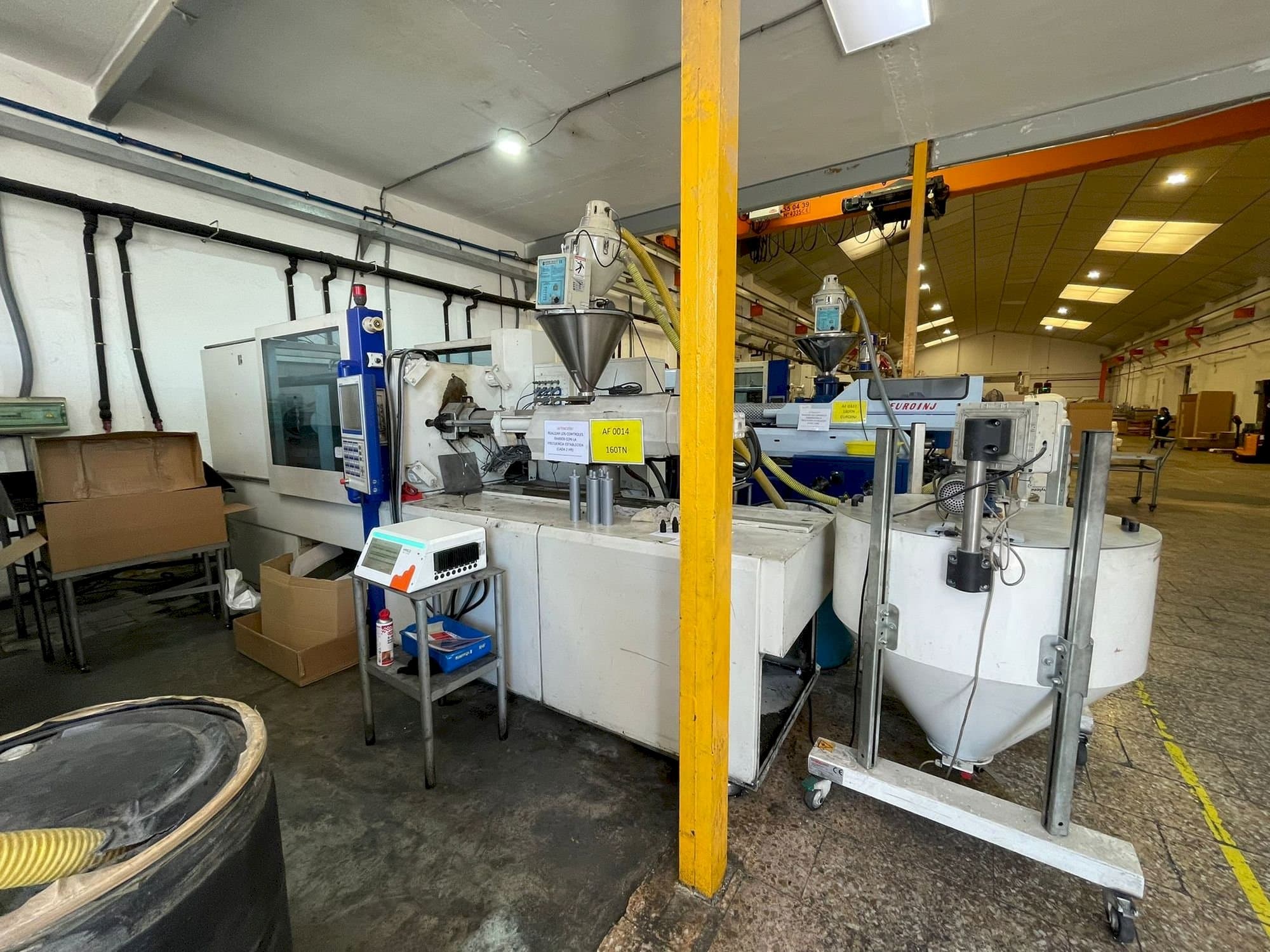

This Battenfeld HM 160/525 E Injection moulding machine was manufactured in the year 2007 in Austria. It is equipped with a HASCO Hot Runner control unit. The machine has a clamping force of 1600 kN and a screw diameter of 45 mm. 2 units are available.

Overview

brand: Battenfeld
year: 2007
MODEL: HM 160/525 E
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Battenfeld HM 160/525 E

General Data

Machine weight: 7300 kg

Control Unit

Model: Hot Runner

Injection Unit

Screw diameter: 45 mm
Shot weight: 289,4 g
Injection pressure: 1659 bar

Clamping unit

Clamping force: 1600 KN
Opening stroke: 650 mm
Max open daylight: 950 mm
Distance between bars: 570 mm × 520 mm
Mould height min: 300 mm
Mould height max: 950 mm
Size of mold platens: 810 mm × 805 mm

Media

Main electronic connection: 230/400 V 50 HZ

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
