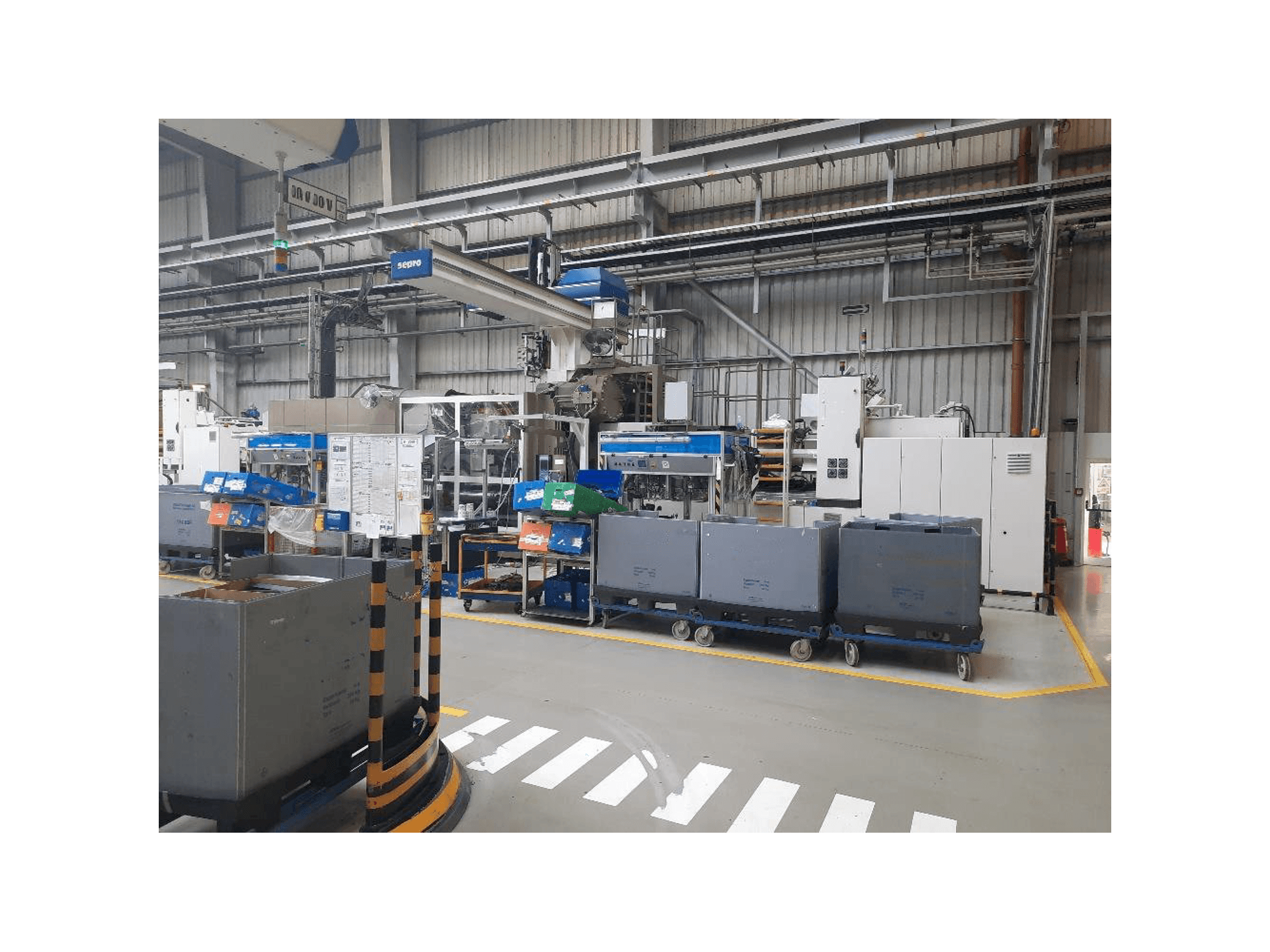

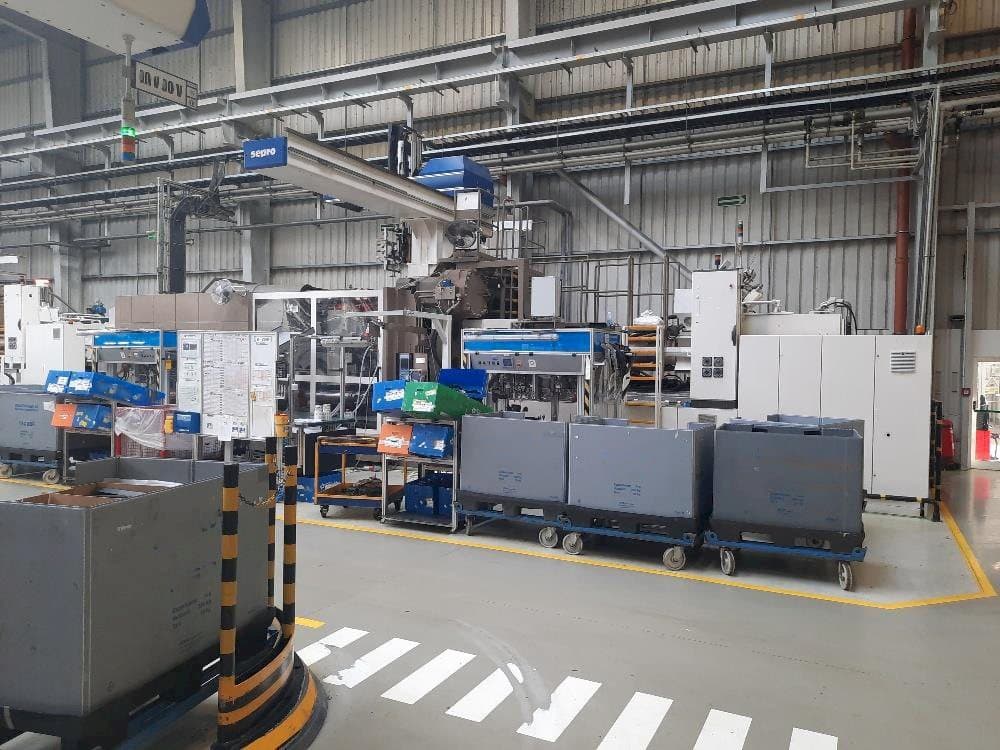

This Battenfeld 2000/19000 Injection Moulding Machine was manufactured in the year 2004. It is equipped with a control unit of the same brand. This machine can work with a clamping force 20000 kN, a screw diameter 135 mm and a screw speed 160 rpm. It has a record of 98643 production hours.

Overview

brand: Battenfeld
year: 2004
MODEL: 2000/19000
production hours: 98643
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: BATTENFELD

Technical Information - Battenfeld 2000/19000

Control Unit

Brand: BATTENFELD

Injection Unit

Screw diameter: 135 mm
Shot weight: Polystyrene: 8792 G/PS - Polietylen: 6860 G/PS
Stroke volume: 9662 CM³
Injection pressure: 1947 bar
Plasticizing rate max.: 180 g/s
Screw speed: 160 rpm
Nozzle pressure: 354 kN

Clamping unit

Clamping force: 20000 kN

Additional equipment

- Robot Sepro P11314, 3060 (additional cost)
- Temperature devices (additonal cost)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
