AVM Angelini Zenit Lathe

Show in original language

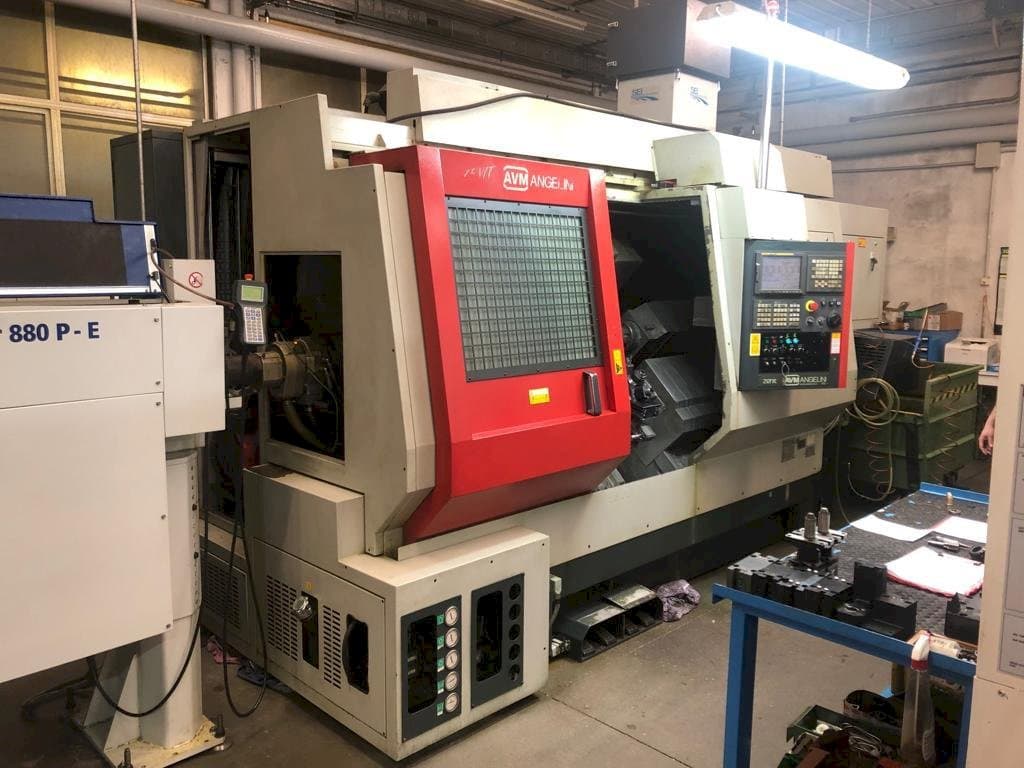

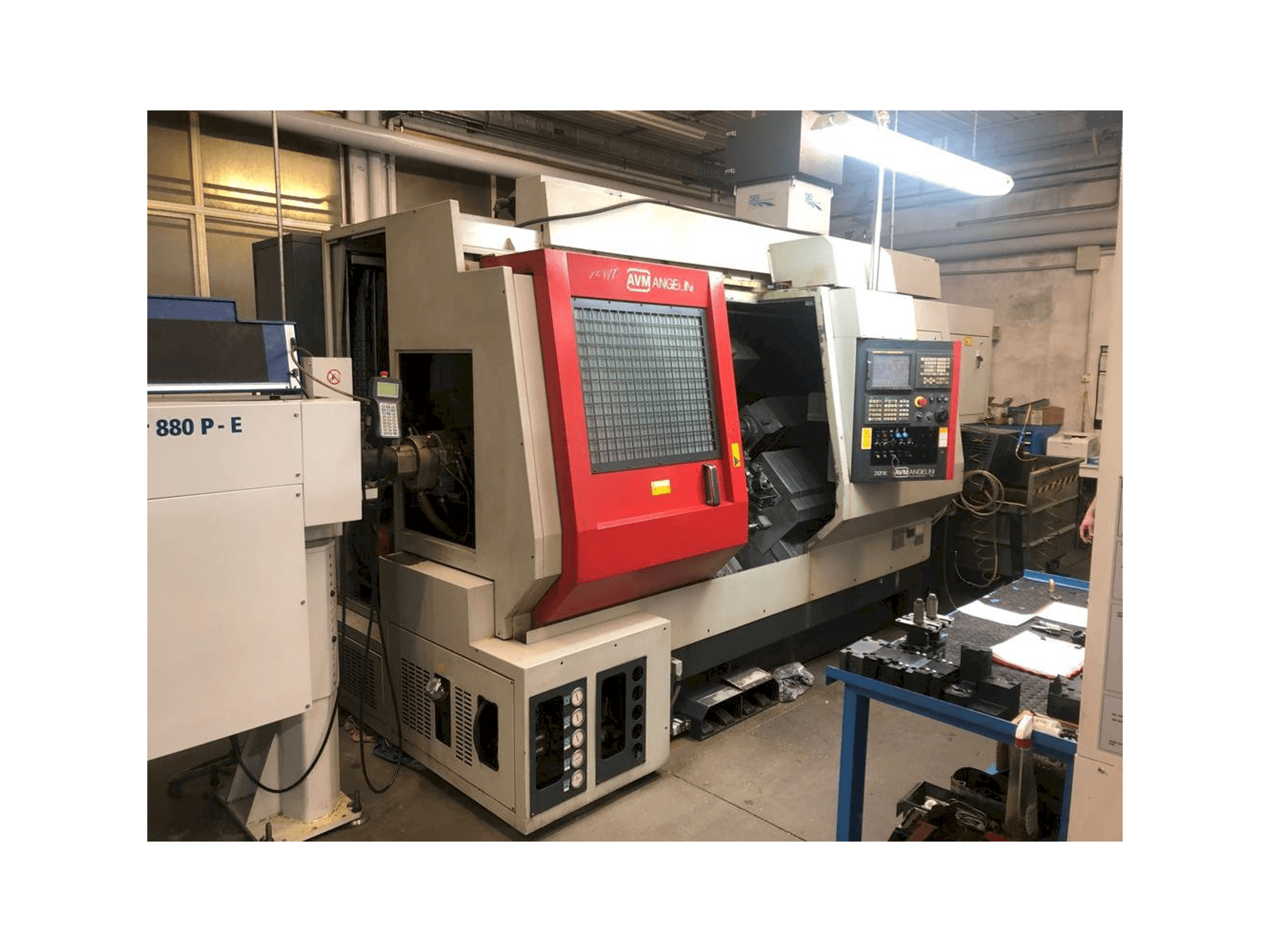

This AVM Angelini Zenit Lathe from Italy was manufactured in 2006. Operated through a FANUC 18iT Control unit, this double spindled machine can work with a speed of 4000 and 6000 rpm respectively. It stands out for incorporating a Y axis on the upper turret.

Overview

brand: AVM Angelini
year: 2006
MODEL: Zenit
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - AVM Angelini Zenit

Control Unit

Model: 18iT
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 4000/6000 1/MIN
Spindle motor power: 15 kW

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: 250 mm
- - Max. Turning length between head and counter-head 1000 mm
- - N° 18 outdoor tool holders 20mm x 20mm
- - No. 11 indoor toolholders 32mm diameter
- - N° 11 axial motorized for er25
- - N° 3 er32 radial motorized units
- - N° 5 er25 radial motorized units
- - N° 1 inclined motorized er25
- - Y axis on the upper turret

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
