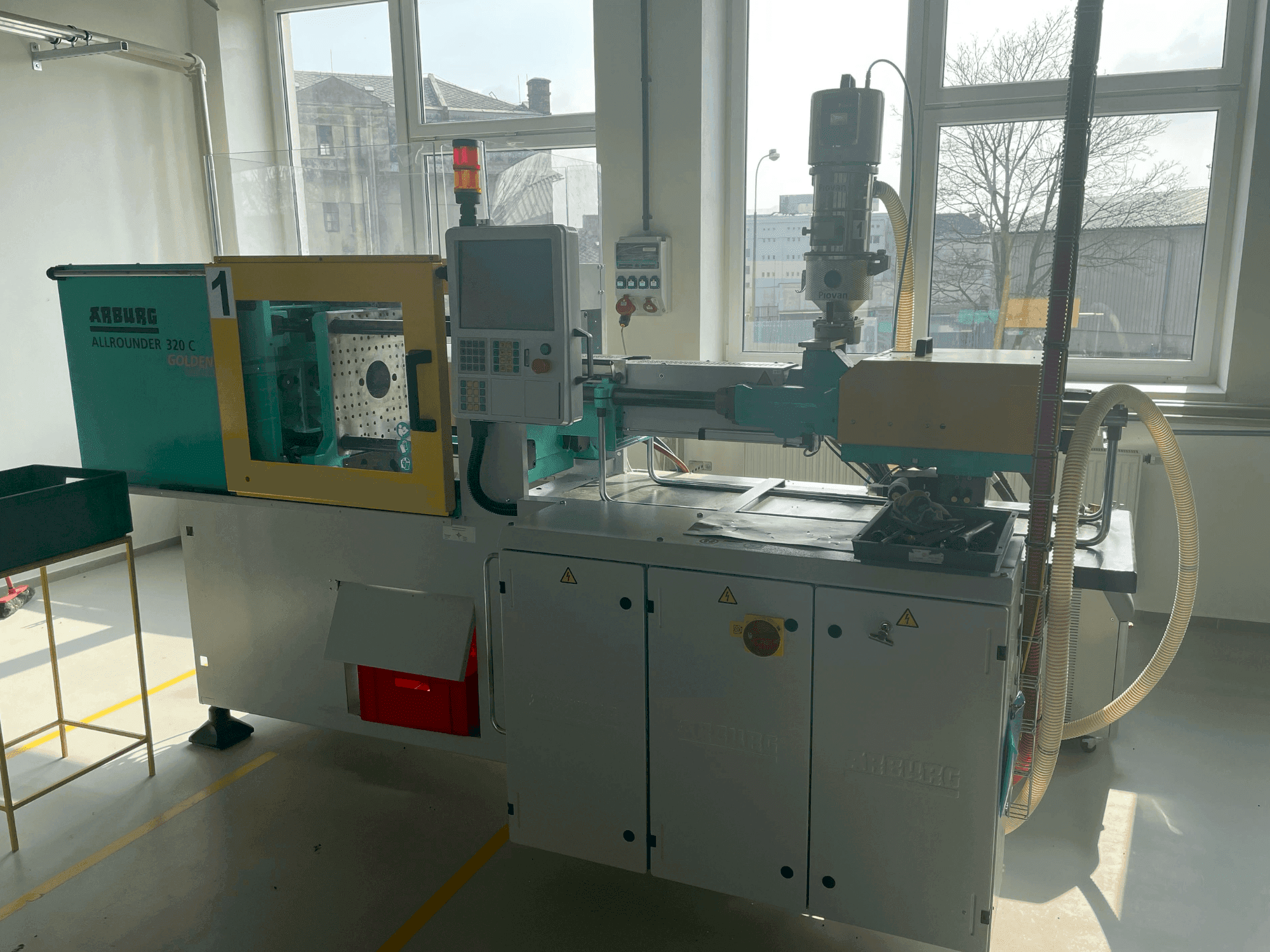

ARBURG Allrounder 320C 500-170 Golden Edition Injection moulding machine

Show in original language

This ARBURG Allrounder 320C 500-170 Golden Edition Injection moulding machine was manufactured in 2018 in Germany. It has a clamping force of 500 kN, screw diameter of 30 mm, an opening stroke of 350 mm and a max. open daylight of 550mm. The size of mould platens is 446 x 446 mm. Ejector stroke is at 125 mm and ejector force at 30 kN. This injection moulding machine is equipped with the 170 injection unit and has only been used for testing operations. It is in very good conditions with low hours, only 1100 pump hours. In addition to the machine there is additional equipment available for extra charge: Dryer T50, Tempering unit THW9 and Granulate suction assembly. See tech specs as PDF (EN) attached (scroll down to access the document).

Overview

brand: Arburg
year: 2018
MODEL: Allrounder 320C 500-170
production hours: 1100
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg Allrounder 320C 500-170

General Data

Measurements width: 3416 mm
Measurements depth: 1431 MM
Measurements height: 2004 mm
Machine weight: 2300 kg

Injection Unit

Screw diameter: 30 mm
Shot weight: 77 max. g PS
Stroke volume: 85 max. cm3 CM³
Injection pressure: 2000 max. bar
Screw speed: 42 max. m/min
Heating capacity: 9.4 kW
Adjustable heating zones: 5

Clamping unit

Clamping force: 500 kN
Opening stroke: 350 mm
Max open daylight: 550 mm
Distance between bars: 320x320 mm
Size of mold platens: 446x446 mm
Ejector stroke: 125 mm
Ejector force for / back: 30 kN

Media

Main electronic connection: 22 kW
Pump drive power: 11 max. kW
Power consumption: 63 kW
Oil tank: 165 l

Additional equipment

- Dryer T50 (available for additional charge)
- Tempering unit THW9 (available for additional charge)
- Granulate Suction Assembly (available for additional charge)

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Very low hours, used for testing only
- - Pump hours 1100

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

ARBURG_ALLROUNDER_320C_GOLDEN_EDITION_TD_523871_en_GB.pdf
