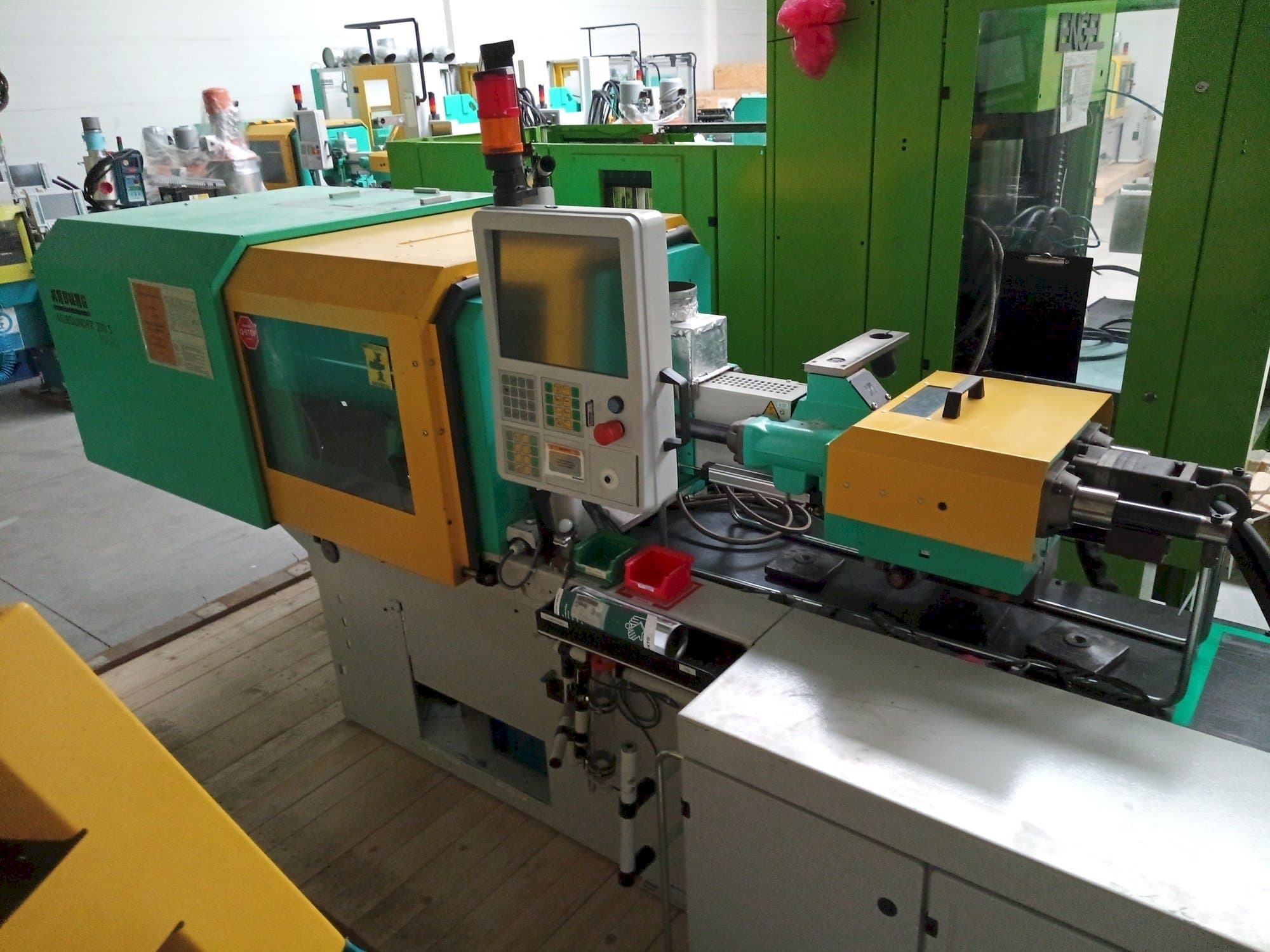

Arburg Allrounder 270S 350 - 70U Injection Moulding Machine

Show in original language

This Arburg Allrounder 270S 350 - 70U Injection Moulding Machine was made in in the year 2012 in Germany. This machine works with a clamping force of 350 kN and a screw diameter of 22 mm. It is in good condition and is regularly maintained.

Overview

brand: Arburg
year: 2012
MODEL: Allrounder 270S 350 - 70U
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg Allrounder 270S 350 - 70U

General Data

Measurements width: 3035 mm
Measurements depth: 1240 mm
Measurements height: 1850 mm

Injection Unit

Screw diameter: 22 mm
Shot weight: 31 g/ps
Stroke volume: 34 CM³
Injection pressure: 2000 bar

Clamping unit

Clamping force: 350 kn
Mould height min: 200 mm
Size of mold platens: 380 x 380 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - No. Heat zones 2
- - No. Of cores 3
- - Total input 45 kw
Qualitative Machine Benefits:
- - Good condition, regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
