Arburg - Allrounder 221-75-350DE-INJ-ARB-1985-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 221-75-350 | For Sale

Show in original language

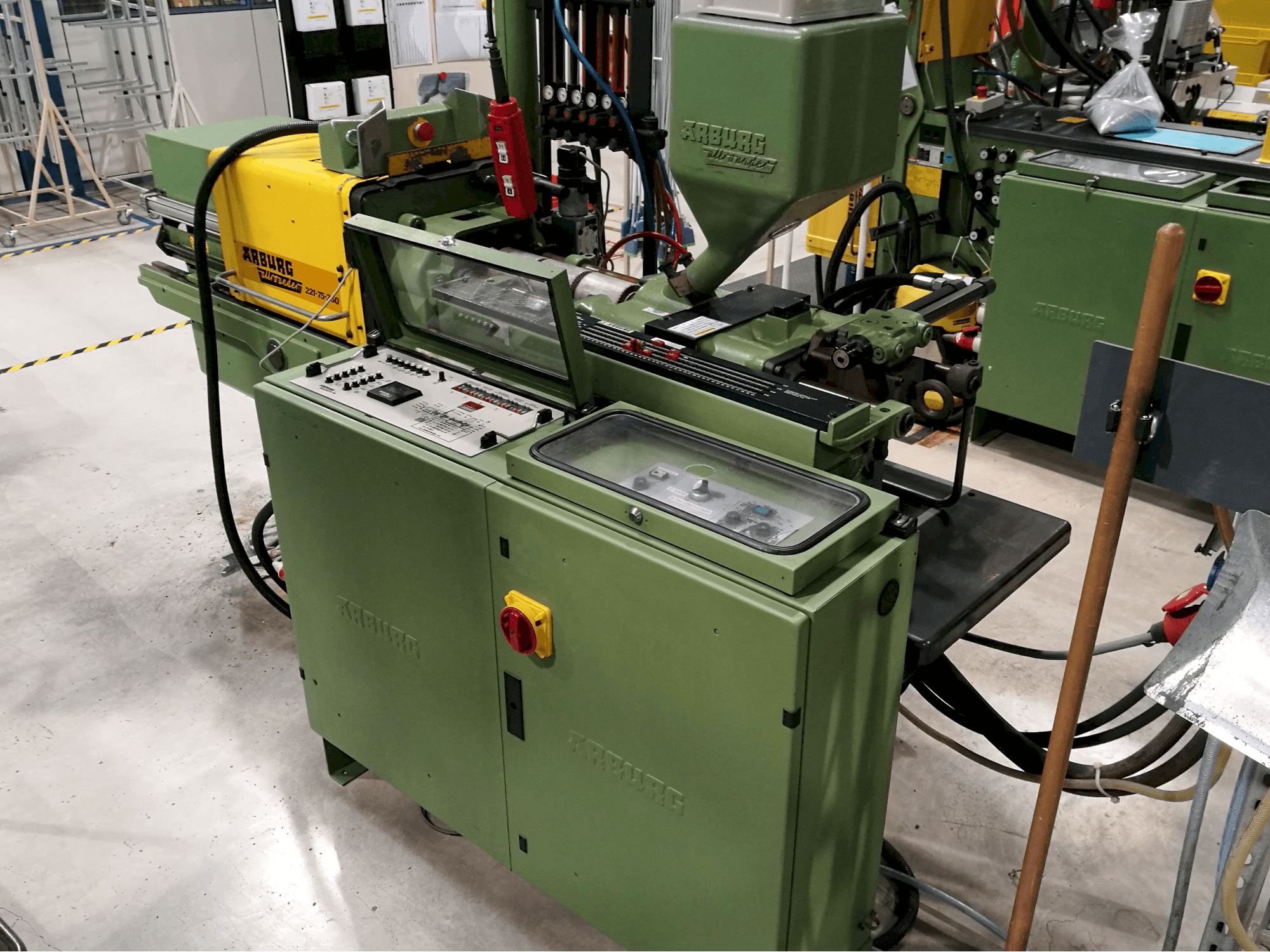

This Arburg Allrounder 221-75-350 Injection Moulding Machine was made in Germany in 1985 and counts with 38099 working hours since then. Operated through an Arburg Polytronica Control unit, this reliable machine counts with a screw speed of 400 rpm and a clamping force of 350 kN.

Overview

brand: Arburg
year: 1985
MODEL: Allrounder 221-75-350
production hours: 38099
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg Allrounder 221-75-350

General Data

Measurements width: 2700 mm
Measurements depth: 1200 mm
Measurements height: 2100 mm
Machine weight: 970 kg

Control Unit

Model: Polytronica
CNC main language: German
Brand: ARBURG

Injection Unit

Screw diameter: 30 mm
Shot weight: 59 g/PS
Stroke volume: 38 cm³
Injection pressure: 1570 bar
Screw speed: 400 rpm
Heating capacity: 3.46 kW
Nozzle pressure: 50kN

Clamping unit

Clamping force: 350 kN
Opening stroke: 200 mm
Max open daylight: 475 mm
Distance between bars: 221 mm
Mould height min: 150 mm
Mould height max: 300 mm
Size of mold platens: 346 mm
Ejector stroke: 100 mm
Ejector force for / back: 17 kN

Media

Main electronic connection: 380 V
Power consumption: 11 kW
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
