Arburg - Allrounder 1500 T 2000-400CZ-INJ-ARB-2015-00001

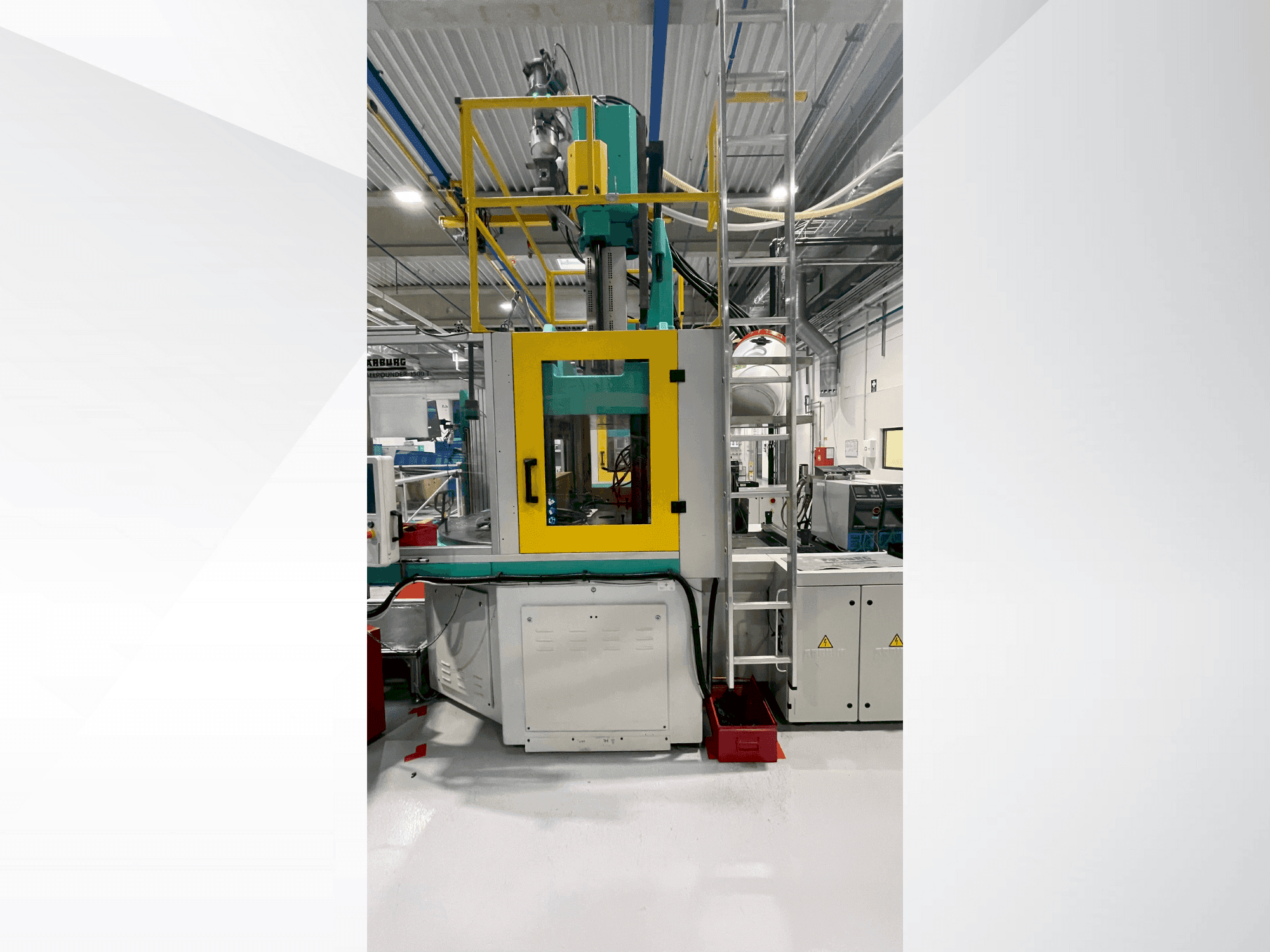

Name: Arburg Allrounder 1500 T 2000-400
Brand: Arburg
SKU: CZ-INJ-ARB-2015-00001
Price: 4020900 INR
Availability: InStock

Rs. 4,020,900

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 1500 T 2000-400 | Moulding

Show in original language

This vertical injection moulding machine was manufactured in 2015. It features a clamping force of 2000 kN and a table diameter of 1500mm, suitable for various mould sizes. The screw diameter is 40mm, ensuring precise material processing with a maximum injection pressure of 2000 bar. Ideal for producers looking for a robust and efficient machine, the Arburg Allrounder 1500 T 2000-400 represents a significant opportunity. Contact us for further details regarding this vertical injection moulding machine.

Overview

brand: Arburg
year: 2015
MODEL: Allrounder 1500 T 2000-400
application type: Injection Moulding
Location: Czech Republic
machine type: Vertical Injection Moulding Machine
availability: Immediately

Technical Information - Arburg Allrounder 1500 T 2000-400

Injection Unit

Screw diameter: 40 mm
Shot weight: 184 g PS
Stroke volume: 201 max. cm³
Injection pressure: 2000 bar
Plasticizing rate max.: 29 kg/h PS
Screw speed: 53 m/min (2 pumps)
Nozzle pressure: 60 | 400 kN|mm

Clamping unit

Clamping force: 2000 kN
Mould height min: 400 mm
Ejector stroke: 175 mm
Ejector force for / back: 25 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Opening force max. : 115 | 300 kn|mm
- - Pallet distance fixed: 700 mm
- - Table diameter: 1500 mm
- - Rotation angle left/right: 180°
- - Weight of moving mould half: 500 kg
- - Granulate container: 50 litres

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
