- Arburg ALLROUNDER 270 U 250-70 injection moulding machine

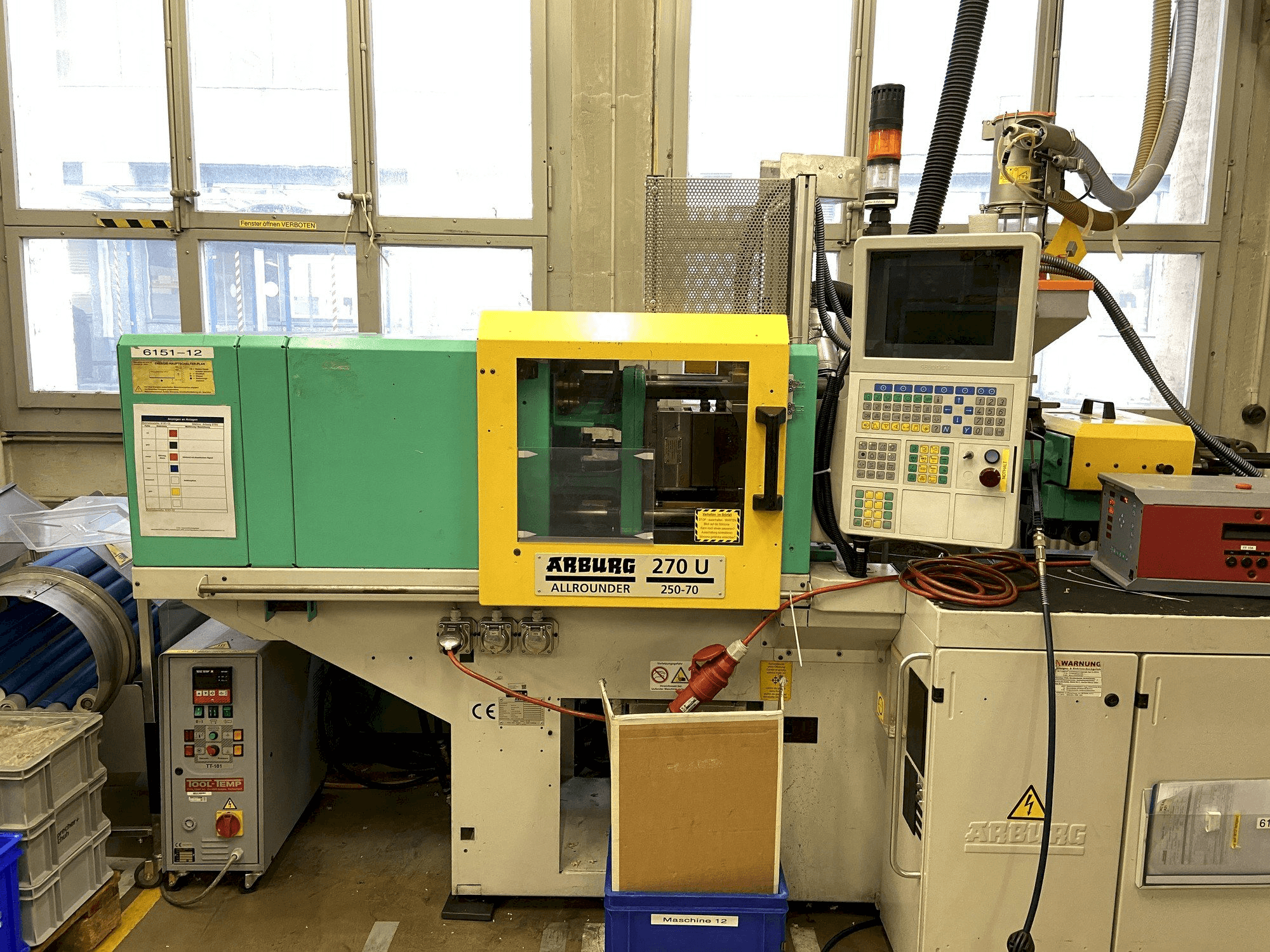

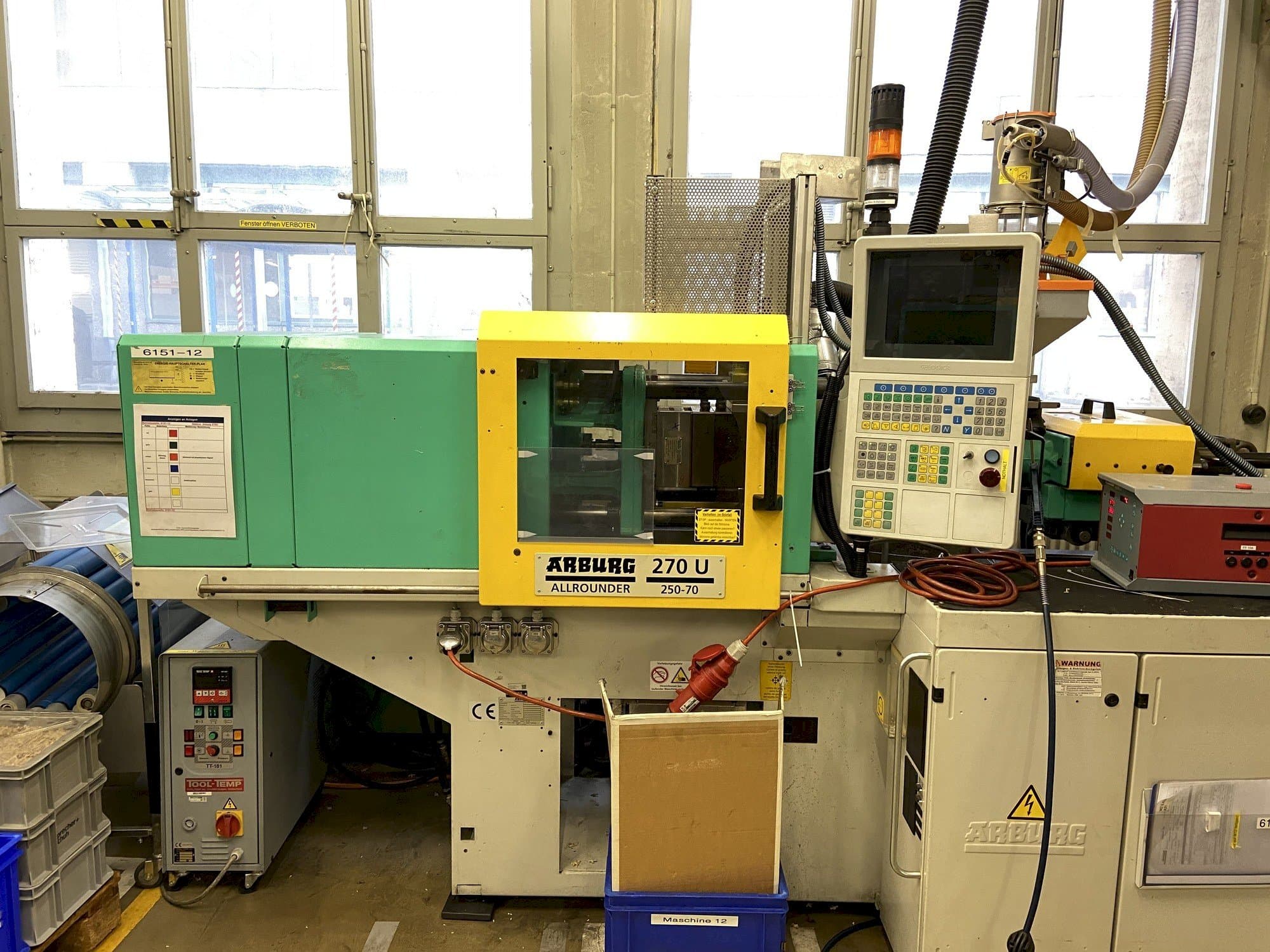

This Arburg ALLROUNDER 270 U 250-70 injection moulding machine was built in 2006 in Germany. It has 49937 production hours. It is operated through a ARBURG SELOGICA control unit. This machine has a clamping force of 250 kN.
Overview
- brand: Arburg
- year: 2006
- MODEL: ALLROUNDER 270 U 250-70
- production hours: 49937
- application type: Injection Moulding
- Location: Switzerland
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: Arburg
Technical Information - Arburg ALLROUNDER 270 U 250-70
General Data
- Measurements width: 3000 mm
- Measurements depth: 1200 mm
- Measurements height: 1800 mm
- Machine weight: 2100 kg
Control Unit
- Brand: Arburg
- Model: Selogica
Injection Unit
- Screw diameter: 18 mm
- Shot weight: 21 G/PS
- Stroke volume: 23 CM³
Clamping unit
- Clamping force: 250 kN
- Distance between bars: 270 x 270 mm
Media
- Main electronic connection: 400 V - 50 Hz
- Power consumption: 14,2 Kw
Additional equipment
- - Temperature devices (additional cost)
- - Parts conveyor (additional cost)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
