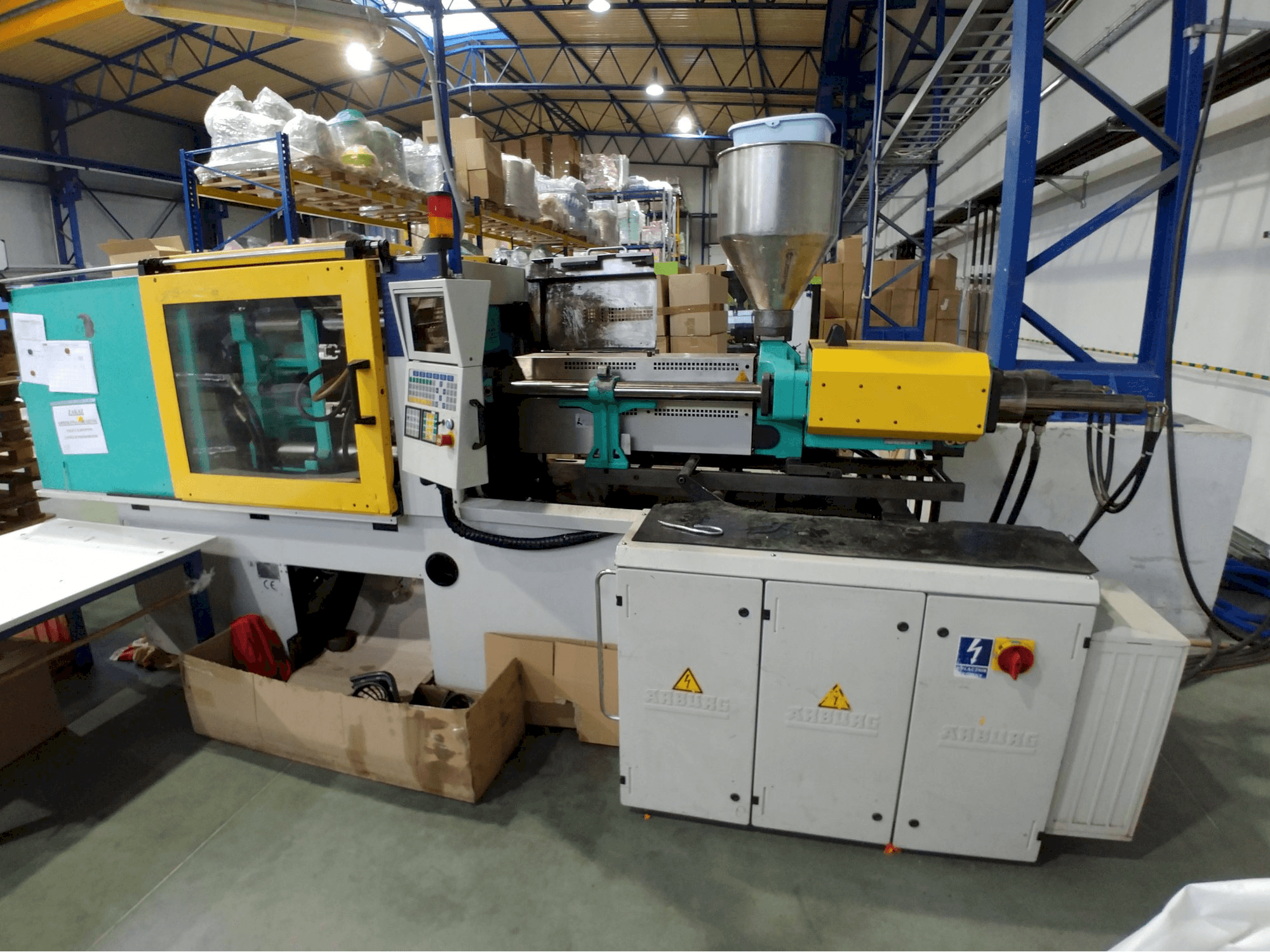

Arburg 420 C Injection Moulding Machine

Show in original language

This Arburg 420 C Injection Moulding Machine was made in 2001 in Germany and counts with approximately 68905 production hours. Operated through an Arburg Selogica Control unit, this machine counts with a clamping force of 1300 kN. It presents a full working condition and well mantained status.

Overview

brand: Arburg
year: 2001
MODEL: 420 C
production hours: 68905
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: Arburg

Technical Information - Arburg 420 C

General Data

Measurements width: 1800 mm
Measurements depth: 1750 mm
Measurements height: 1750 mm
Machine weight: 4330 kg

Control Unit

Brand: Arburg
Model: Selogica

Tools

Max tool diameter: 500 mm

Injection Unit

Screw diameter: 45/50/55/60 mm
Shot weight: 240/297/360/427 g/PS
Stroke volume: 286/353/427/508 CM³
Injection pressure: 2500/2080/1720/1440 bar

Clamping unit

Clamping force: 1300 kN
Opening stroke: 500 mm
Distance between bars: 420 mm
Ejector stroke: 175 mm
Ejector force for / back: 40 kN

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 44 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
